1. 150,000 wfms/s waveform acquisition rate
2. 16Mpts memory depth
3. 800×480, 7 inches wide screen LCD displays
4. Special Print Screen feature
5. Edge, Video, Pulse Slop and Alternate trigger functions
6. 24 automatic + 2 advanced measurements
7. Unique waveform recording and replay function
8. Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device
9. 6 digits trigger frequency counter

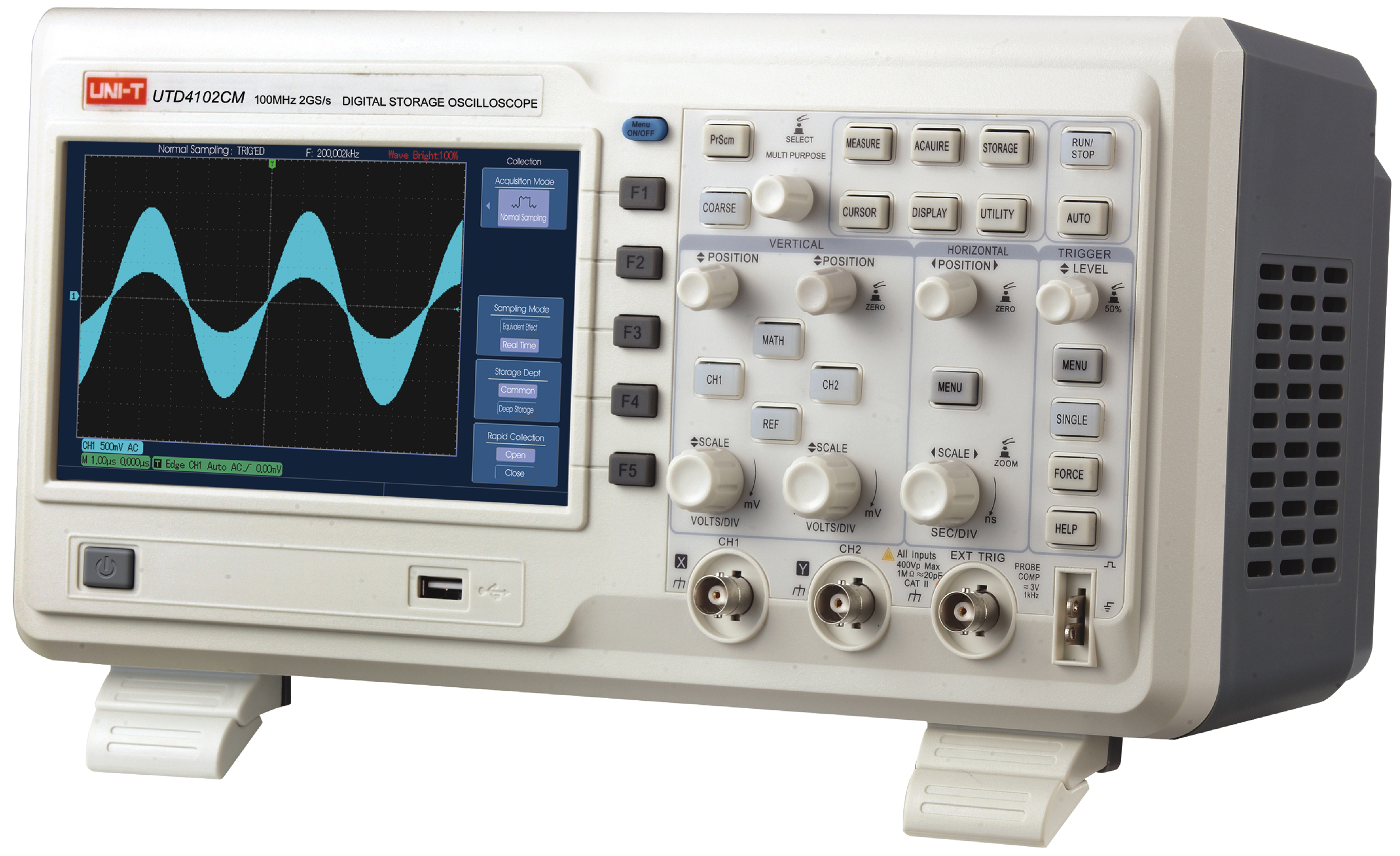

| Specifications | UTD4102CM | UTD4202CM | UTD4302CM |
| Channels | 2 | ||
| Bandwidth | 100MHz | 200MHz | 300MHz |
| Sample Rate | 2GS/s | ||
| Rise Time | ≤3.5ns | ≤1.8ns | ≤1.2ns |
| Memory Depth | 24Mpts (each channel) | ||
| Waveform Acquisition Rate | ≥150,000wfms/s | ||
| Vertical Sensitivity | 2mV/div~5V/div | ||
| Timebase Range | 2ns/div~50s/div | ||
| Storage | Setup, Wave, Bitmap, CSV | ||
| Trigger Modes | Edge, Pulse, Video, Slope, Alternate | ||
| Interface | USB Device, USB Host, Pass/Fail | ||
| General Characteristics | |||
| Power | 100~240V AC, 45~440Hz | ||
| Display | 7 inches 64K Color TFT LCD, 800×480 | ||
| Product Color | White and grey | ||
| Product Net Weight | 3.8kg | ||
| Product Size (W×H×D) | 337mm × 190mm × 180mm | ||

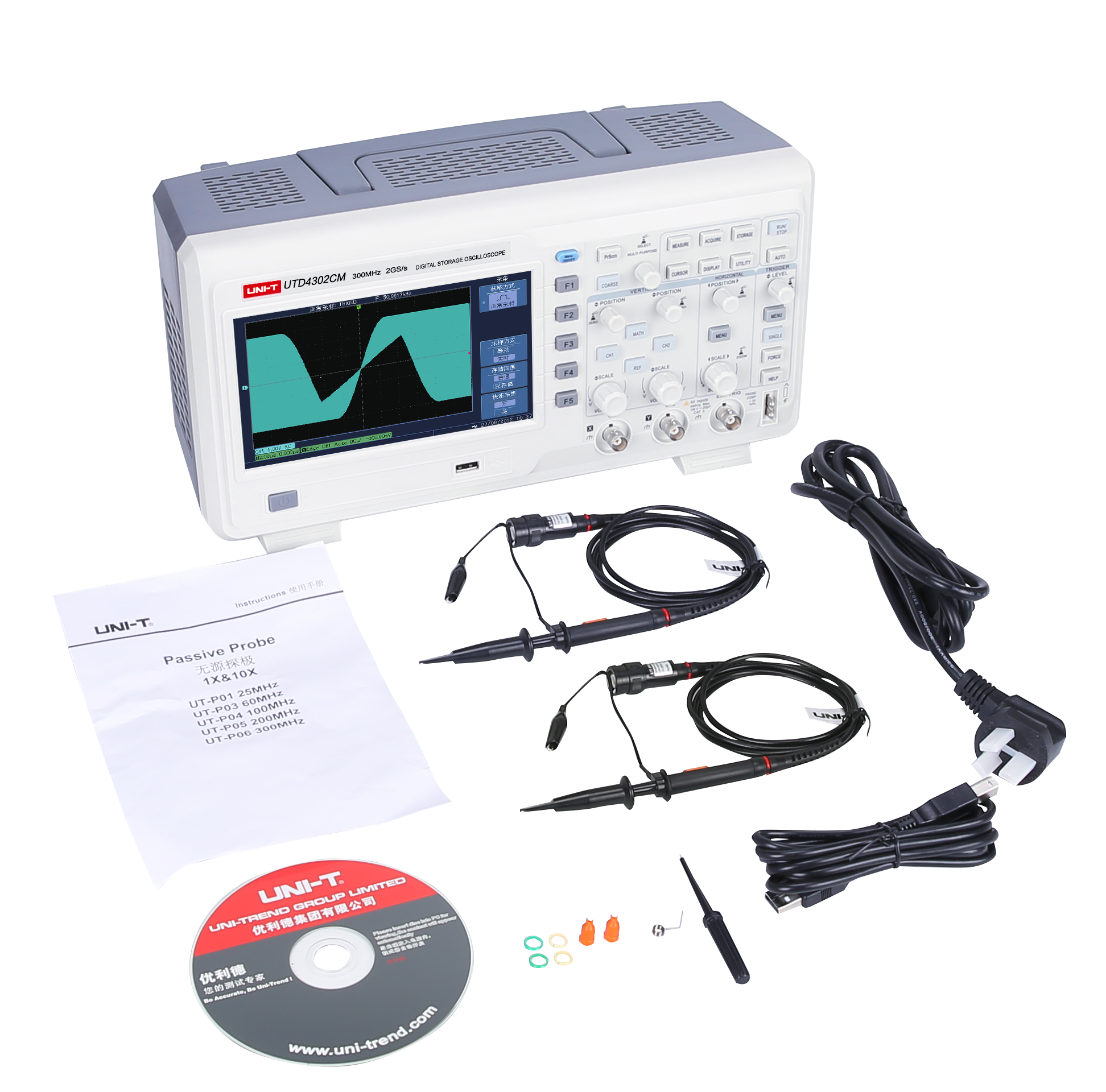

| Standard Accessories | Probe×2 (1×,10× switchable), Power Cord, USB Cable, PC Software CD | ||
| Standard Individual Packing | Gift Box, English Manual | ||
| Standard Quantity Per Carton | 2pcs | ||
| Standard Carton Measurement (L×W×H) | 540mm × 425mm × 325mm | ||
| Standard Carton Gross Weight | 13.7kg | ||
| Optional Accessories | LAN Port, LA Module | ||
