UTD1025CL/UTD1050CL

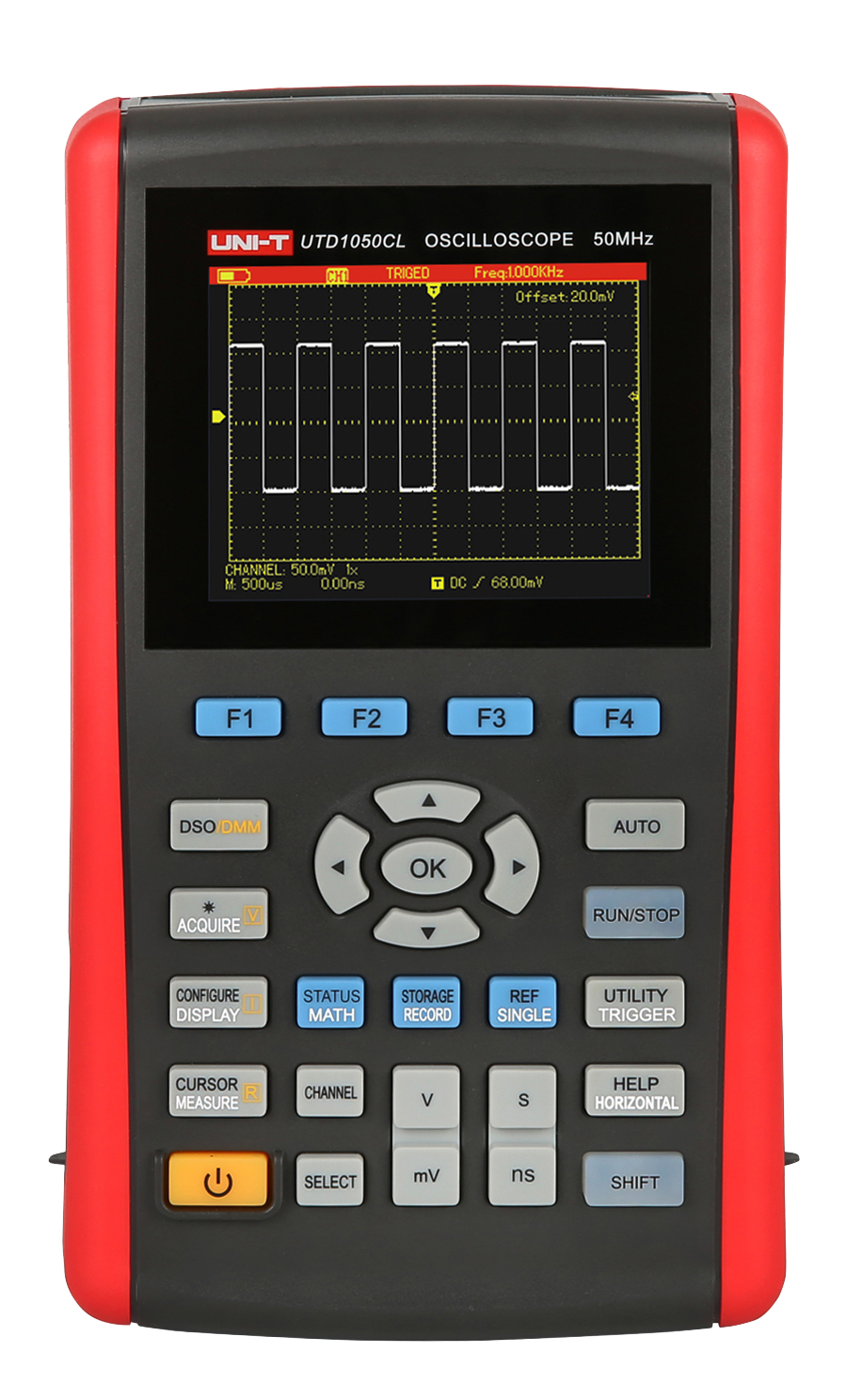

  • Product description: Handheld Digital Storage Oscilloscopes
  • INQUIRY

Features:

1. Fully auto scale; vertical scale and time-based automatically adjusted with the signal and without any manual interference;

2. Unique and powerful auto setup, quick and accurate to set up for signals with any DC component;

3. Wider voltage measuring range; coupled with 10×probe with attenuation up to 200V/div;

4. Isolated USB for much safer communication;

5. White and black display for your option, perfect for use outdoor with strong light;

6. Intelligent localor network software update

7. More than 8 hours of continuous battery operation



Specifications UTD1025CL UTD1050CL
Channels 1
Bandwidth 25MHz 50MHz
Sample Rate 200MS/s
Rise Time ≤14ns ≤7ns
Memory Depth 12kpts
Vertical Sensitivity 5mV/div~20V/div
Timebase Range 10ns/div~50s/div 5ns/div~50s/div
Storage Bitmap, Setup, Waveform
Trigger Modes Edge, Pulse, Video, Slope
Interface Mini USB
Multimeter Specifications Range Best Accuracy
DC Voltage (V) 400.0mV/ 4.000V/ 40.00V/ 400.0V ±(1%+5)
AC Voltage (V) 400.0mV/ 4.000V/ 40.00V/ 400.0V  ±(1.2%+5)
DC Current (A)
(External Convertor)
400.0μA/ 4000μA ±(1.2%+5)
40.0mA/ 400mA ±(1%+5)
10A    ±(1.5%+5)
AC Current (A)
(45Hz~400Hz)
(External Convertor)
400.0μA/ 4000μA ±(2%+5)
40.0mA/ 400mA ±(1.5%+5)
10A    ±(2.5%+5)
Resistance (Ω) 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ ±(1.2%+5)
40.00MΩ ±(1.5%+5)
Capacitance (F) 51.20nF/512.0nF/5.120μF/51.20μF/100μF ±(3%+5)
Display Count 4000
General Characteristics
Power Lithium Battery: 7.4V 3600mAh; DC Adapter: 100~240V 50/60Hz input, 9V/4A Output
LCD Size 3.5 Inches     TFT  LCD,  QVGA (320×240)
Product Color Red and Grey
Product Net Weight 0.9kg
Product Size (W×H×D) 199mm × 118mm × 49mm

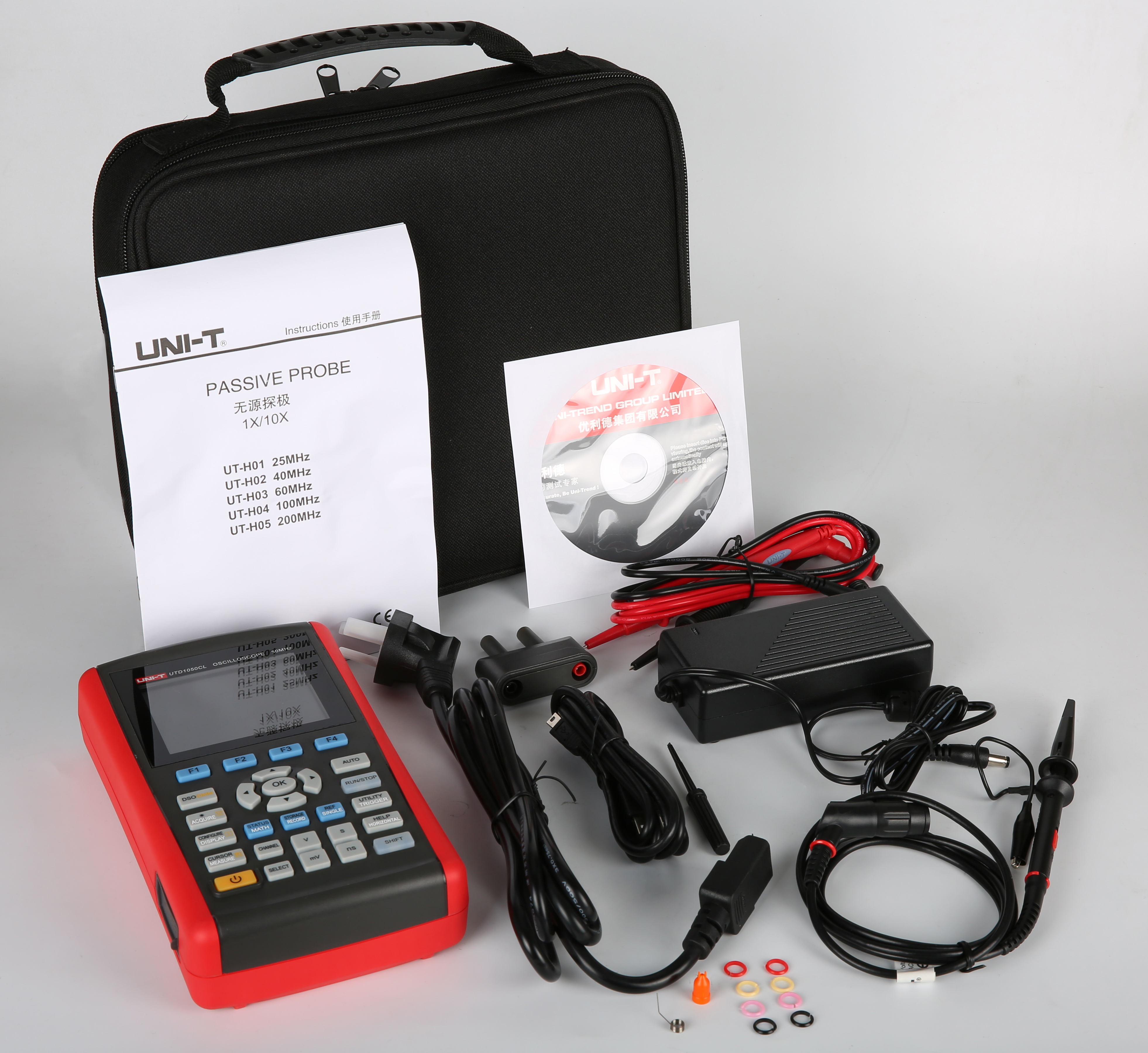

Standard Accessories DC Adaptor, Test Lead, Probe×1 (1×,10× switchable), Current-to-Voltage Convertor, Power Cord, USB Cable, PC Software    CD
Standard Individual Packing Gift Box, Carrying Bag, English Manual
Standard Quantity Per Carton 6pcs
Standard Carton Measurement (L×W×H) 515mm x 295mm x 315mm
Standard Carton Gross Weight 10.8kg
