Oscilloscopes

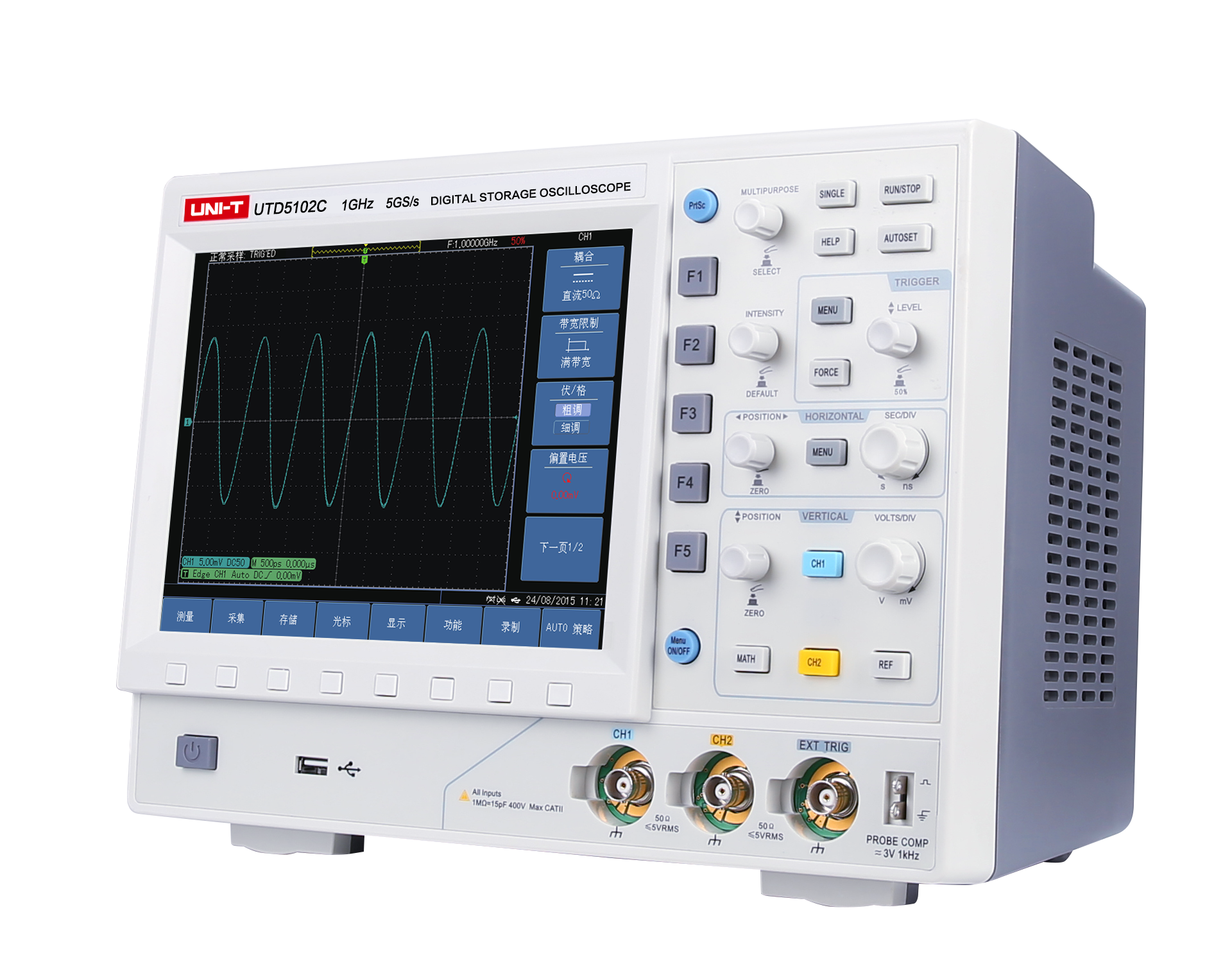

UTD5102C

Product description: Digital Storage Oscilloscope
INQUIRY

Features

1. 30,000 wfms/s waveform acquisition rate;
2. 128Mpts memory depth;
3. 800×600, 8.4 inches LCD Display;
4. Special Print Screen feature;
5. Edge, Video, Pulse and Alternate trigger functions;
6. 24 automatic + 2 advanced measurements;
7. Unique waveform recording and replay function;
8. Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;

9. 6 digits trigger frequency counter

Specifications	UTD5102C
Channels	2
Bandwidth	1GHz
Sample Rate	5GS/s
Rise Time	≤350ps
Memory Depth	128Mpts
Waveform Acquisition Rate	≥30,000wfms/s
Vertical Sensitivity	2mV/div~5V/div
Timebase Range	500ps/div, 1ns/div ~ 40s/div
Storage	Setup, Wave, Bitmap, CSV
Trigger Modes	Edge, Pulse, Video, Alternate
Interface	USB Device, USB Host
General Characteristics
Power	100-240V AC, 45-440Hz
Display	8.4 inches 64K Color TFT LCD, 800×600
Product Color	White and grey
Product Net Weight	3.7kg
Product Size (W×H×D)	330mm × 230mm × 200mm

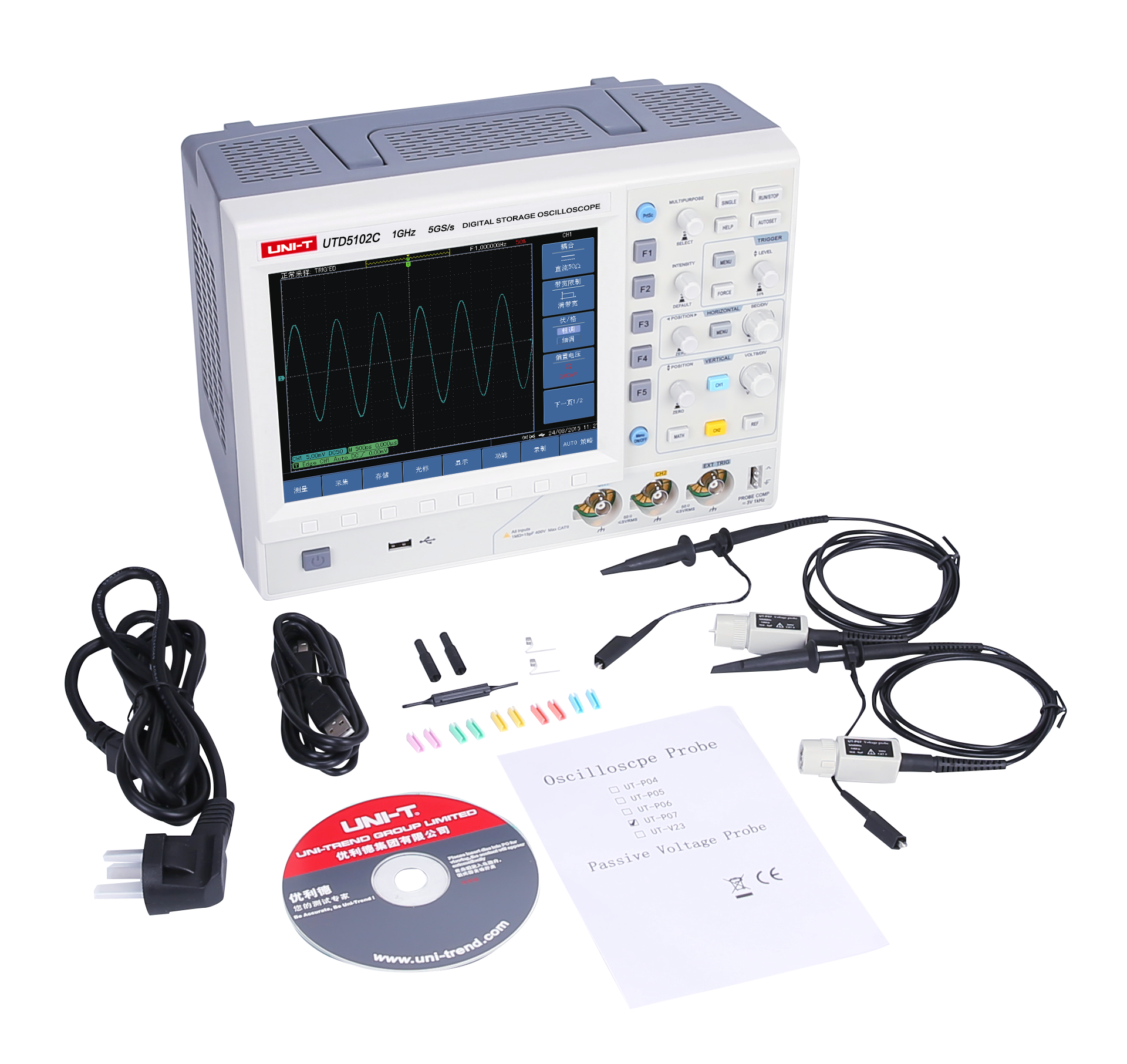

Standard Accessories	10:1 Probe×2, Power Cord, USB Cable, PC Software CD
Standard Individual Packing	Gift box, English manual
Standard Quantity Per Carton	1pcs
Standard Carton Measurement (L×W×H)	400mm×325mm×375mm
Standard Carton Gross Weight	5.4kg
Optional Accessories
LAN port
