Oscilloscopes

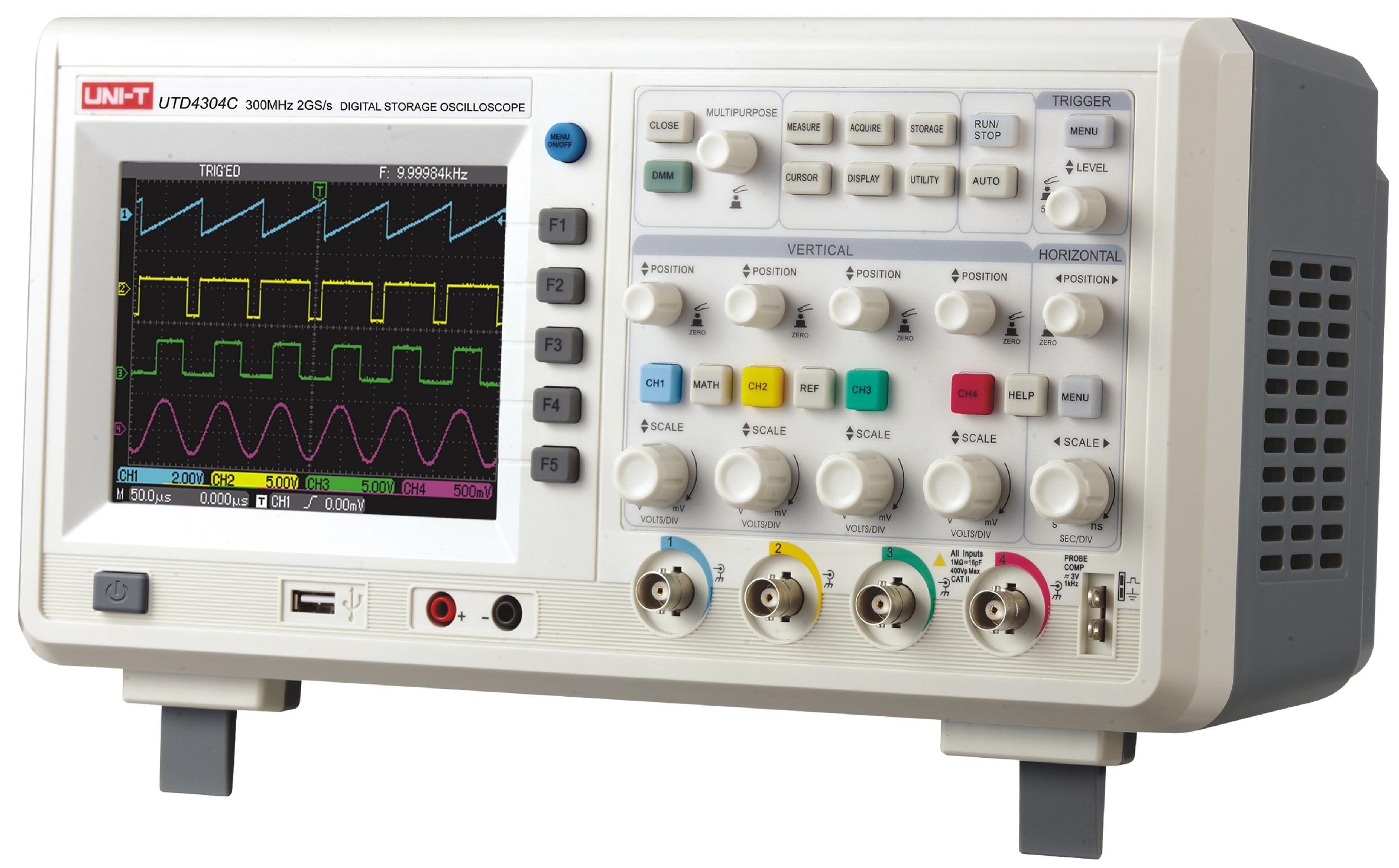

UTD4104C / UTD4204C / UTD4304C

1. Analog channels and 2GS/s real-time sampling rate

2. Dual time base function; unrivaled waveform detail observation and analysis capabilities

3. 3 digits multimeter

4. Supports plug-and-play USB storage devices and capable of communicating with a computer

5. USB drive system software upgrade

6. Built-in FFT and Multiple waveform mathematics functions (including add, subtract, multiply and divide)

7. Edge, Video, Pulse, Slop and Alternate trigger functions

Specifications	UTD4104C-4CH	UTD4204C-4CH	UTD4304C-4CH
Channels	4
Bandwidth	100MHz	200MHz	300MHz
Sample Rate	2GS/s
Rise Time	≤3.5ns	≤1.8ns	≤1.2ns
Memory Depth	24kpts
Vertical Sensitivity	2mV/div~5V/div
Time base Range	5ns/div~50s/div	2ns/div~50s/div	1ns/div~50s/div
Storage	Setup, Wave, Bitmap, CSV
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Interface	USB Device, USB Host, Multimeter Interface
Multimeter Specifications	Range			Best Accuracy
DC Voltage (V)	400mV, 4V, 40V, 400V			± (1% + 5)
AC Voltage (V)	4V, 40V, 400V			± (1.2% + 5)
DC Current (A)	4mA, 40mA, 400mA, 4A			± (1% + 5)
(External Convertor)				4A: ± (1.5% + 5)
Resistance (Ω)	400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ			± (1.5% + 5)
Display Count	4000
Auto Range	√
General Characteristics
Power	100-240VAC, 45-440Hz
Display	5.7 inches 64K Color TFT LCD, 320×240
Product Color	White and grey
Product Net Weight	3.8kg
Product Size (W×H×D)	337mm(W) × 190mm(H) × 180mm(D)
Standard Accessories	Probe×4 (1×,10× switchable), Current-to-Voltage Convertor, Test Leads, Power Cord, USB Cable, PC Software CD
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	2pcs
Standard Carton Measurement (L×W×H)	540mm(L) × 425mm(W) × 325mm(H)
Standard Carton Gross Weight	13.7kg
