Features
1. Automatic waveform and status configuration
2. Storage of waveforms, setups and interfaces; waveforms and setups reproduction
3. Print Screen function
4. Fine window extension; precise analysis of waveform details and overview
5. Unique waveform recording, storage and replay function
6. HD color 5.7 inches LCD panel at 320 x 240 pixels aspect ratio
7. Multiple waveform mathematics functions (including add, subtract, multiply and divide)
8. Multi-meter function
9. USB drive system software upgrade
Specifications

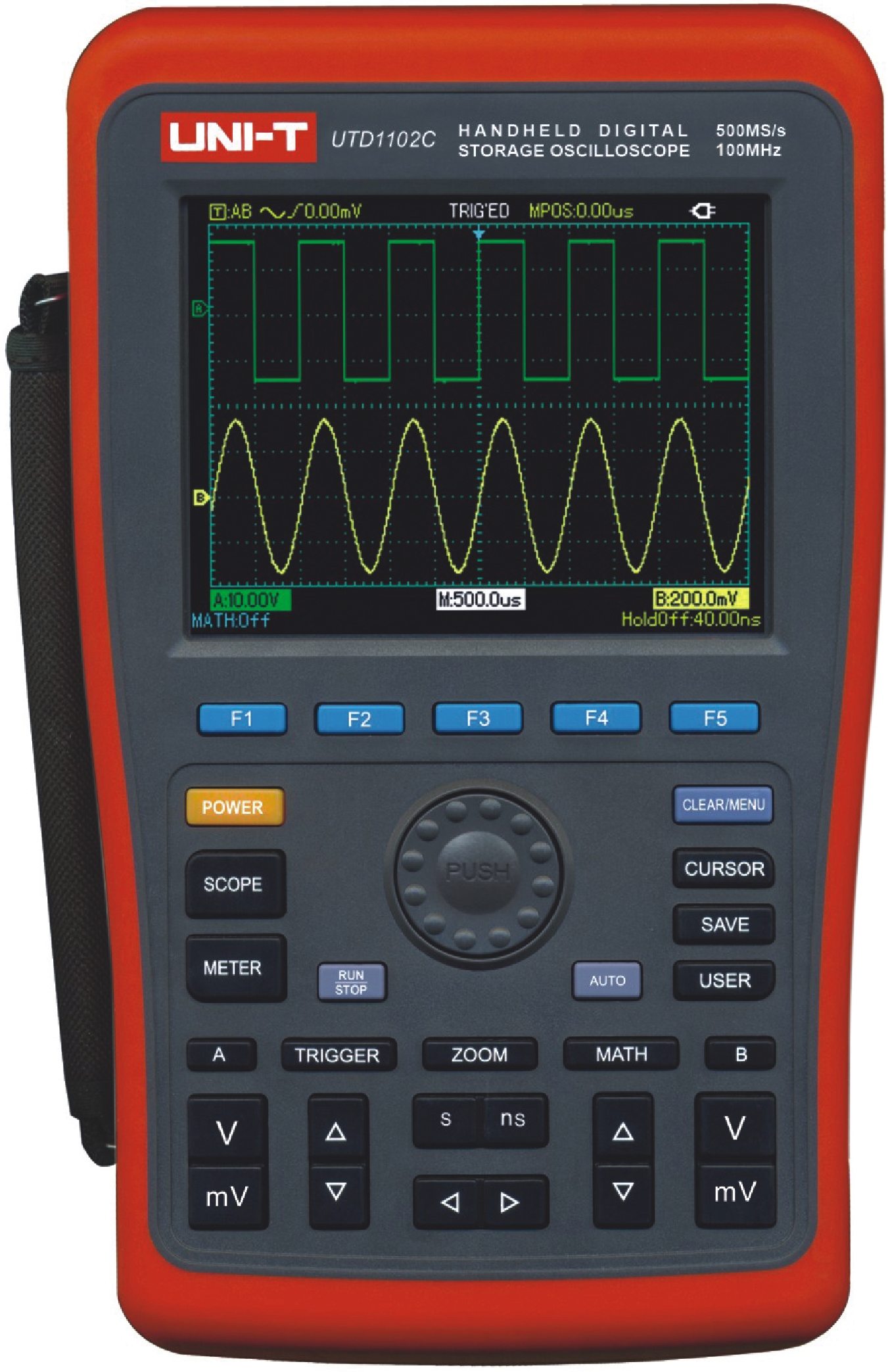

UTD1102C
Channels
2
Bandwidth
100MHz
Sampling Rate
500MS/s
Rise Time
≤3.5ns
Memory Depth
7.5kpts
Vertical Sensitivity
5mV-50V/div
Time-based Range
5ns/div-50s/div
Storage
Setup, Waveform, Bitmap
Trigger Modes
Edge, Pulse, Video and Alternative
Interface
USB HOST
Multi-meter Specifications
Range
Best Accuracy
DC Voltage (V)
600mV/6V/60V/600V/1000V
±(1%+5)
AC Voltage (V)
600mV/6V/60V/600V/700V
±(1.2%+5), Frequency: ＜200Hz
±(1.5%+5), Frequency: ≥200Hz
DC Current (A)
6mA/60mA/600mA
±(1.2%+5)
6A
±(1.5%+5)
AC Current (A)
6mA/60mA/600mA
±(2%+5)
6A
±(2.5%+5)
Resistance (Ω)
6kΩ/60kΩ/600kΩ
±(1.2%+5)
600Ω/6MΩ/60MΩ
±(1.5%+5)
Capacitance (F)
6nF/6mF
±(5%+10)
60nF/600nF/6μF/60μF/600μF
±(4%+5)
Display Count
6000
Auto Range
√
General Characteristics
Power
Lithium Battery: 7.4V 4400mAh;
Display
5.7 inches TFT LCD, QVGA (320×240)
Product Color
Red and grey
Product Net Weight
1.8kg
Product Size (W×H×D)
268mm × 168mm × 60mm
Standard Accessories
Probe×2 (1×,10× Switchable), Current Voltage Convertor×2, Power Cord, DC Adaptor, Test Lead, PC Software CD
Standard Individual Packing
Gift Box, Carrying Bag, English Manual
Standard Quantity Per Carton
4pcs
Standard Carton Measurement (L×W×H)
500mm × 400mm × 320mm
Standard Carton Gross Weight
10.8kg
(45Hz~400Hz)
(External Convertor)
(45Hz~400Hz)
(External Convertor)
DC Adapter: 100～240V 50/60Hz input, 9V/4A Output
