Oscilloscopes

UTD2062CM / UTD2102CM / UTD2202CM

Features:

1. 2 channels,1GS/s sample rate

2. 60MHz bandwidth, 32Mpts maximum memory depth

3. Waveform acquisition rate is up to 150,000wfms/s

4. Vertical sensitivity: 2mV/div~10V/div

5. Time-based range: 2ns/div~50s/div

6. Trigger modes: edge, pulse, runt, video, slope, alternate

7. V/A unitconversion, supports user defined probe ratio

8. Customized AUTO, fast captures the signals

9. Supports Y-T andX-Y mode at the same time, can observe Lissajous waveform

10. Various frequency calibration signals: 100Hz/1kHz/10kHz

11. 34 kinds of auto measurements

12. Button lock: can lock or unlock any button on the device, and code can be set to avoid random alternation

13. Optional LA module

14. Standard interfaces: USB Host, USB Device, Pass/Fail

15. 7-inch TFT LCD, WVGA (800*480)

Specifications	UTD2062CM	UTD2102CM	UTD2202CM
Channels	2	2	2
Bandwidth	60MHz	100MHz	200MHz
Sample Rate	1GS/s
Rise Time	≤5.8ns	≤3.5ns	≤1.8ns
Memory Depth	32Mpts	32Mpts	16Mpts
Waveform Acquisition Rate	≥150,000wfms/s
Vertical Sensitivity	2mV/div~10V/div		2mV/div~5V/div
Timebase Range	2ns/div~50s/div
Storage	Setup, Wave, Bitmap, CSV
Trigger Modes	Edge, Pulse, Runt, Video, Slope, Alternate		Edge, Pulse, Video, Slope, Alternate
Interface	USB Device, USB Host, Pass/Fail
General Characteristics
Power	100~240VAC, 50/60Hz
Display	7 inches TFT LCD, WVGA (800×480)
Product Color	White and grey
Product Net Weight	2.9kg
Product Size (W×H×D)	332mm × 147mm × 170mm

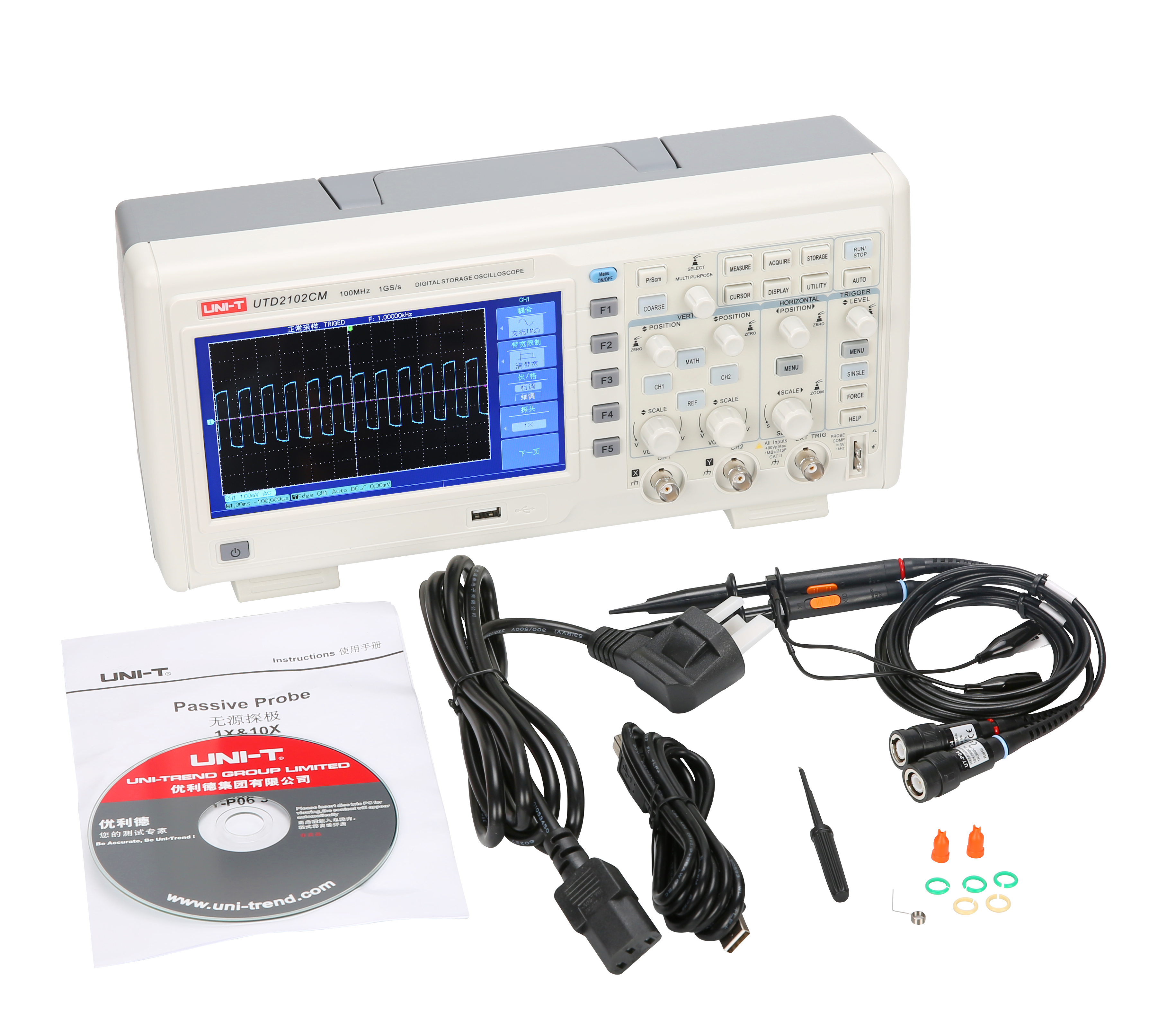

Standard Accessories	Probe×2 (1×,10× switchable), Power Cord, USB Cable, PC Software CD
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	2pcs
Standard Carton Measurement (L×W×H)	450mm × 420mm × 280mm
Standard Carton Gross Weight	9.3kg
Optional Accessories
LAN Port
