UT513A

Features

1. Large 9999 display with 30-segment analog bar graph

2. PI/DAR measurements; power adapter

3. Comparison, upper and lower limit functions

4. Continuous measurement mode

5. Backlight; auto power off

6. 18-group data storage

7. Auto current discharge and high-voltage output alarm

8. Timer measurement mode, auto measure within 15 minutes

9. USB interface and PC software

10. Low battery and over range indications

11. EN61557-1:2007, EN61557-2:2007

Specifications	Range		Accuracy
Model			UT513A
Insulation Resistance (Ω)	Test Voltage	500V/1000V/2500V/5000V	0%～20%
	500V	0.5MΩ~20GΩ	±(3%+5)
	1000V	1.0MΩ~40GΩ	±(3%+5)
	2500V	2.5MΩ~100GΩ	±(3%+5)
	5000V	5.0MΩ~1000GΩ	±(3%+5)
	Short Circuit Current		>3.0mA
DC Voltage (V)	600V		±(2%+3)
AC Voltage (V)	600V		±(2%+3)
Features
Auto Range			√
Auto Power Off			√
Secondary Display			√
Low Battery Indication			√
Data Storage			18
Comparison			√
DAR			√
PI			√
USB Interface			√
LCD Backlight			√
Analog Bar Graph			30
Overload Indication			√
High Voltage Indication			√
Timer	Around 15 Minutes		√
General Characteristics
Power	1.5V Batteries (LR14) x 8
LCD Size	123mm x 58mm
Product Color	Red and grey
Product Weight	UT511-1.2kg, UT512-1.8kg, UT513A-2kg
Product Size	202mm×155mm×94mm

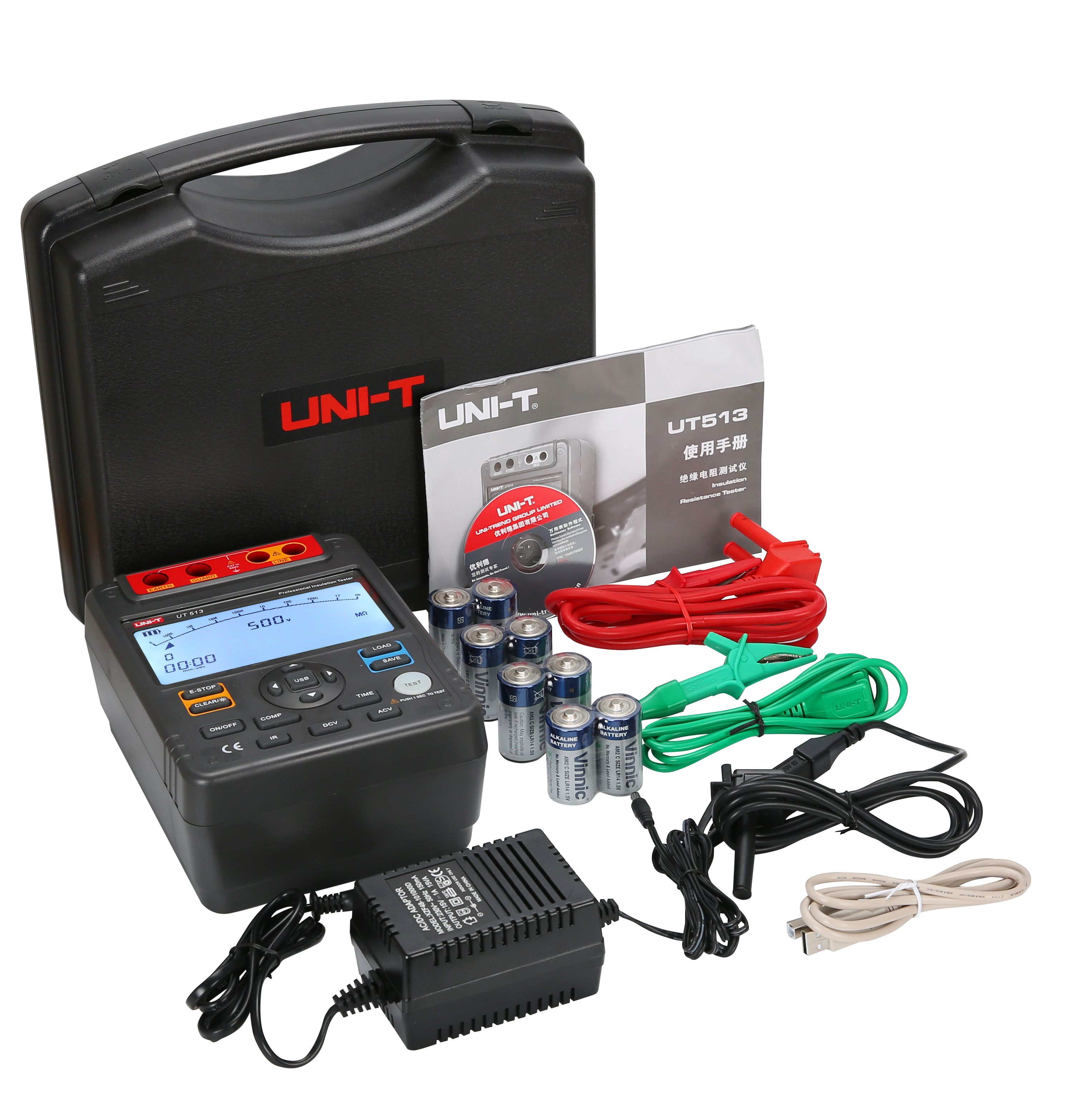

Standard Accessories	2 pcs of one plug test lead to one alligator clip (Black and Green), 1 piece of two plugs test lead to one alligator clip (Red), Batteries, USB Cable, PC Software CD, Power Adapter
Standard Individual Packing	Gift Box, Tool Box, User Manual
Standard Quantity Per Carton	4pcs
Standard Carton Measurement	525mm x 335mm x 345mm
Standard Carton Gross Weight	19kg
Optional Accessories	Power Adapter
