UT505 A/B

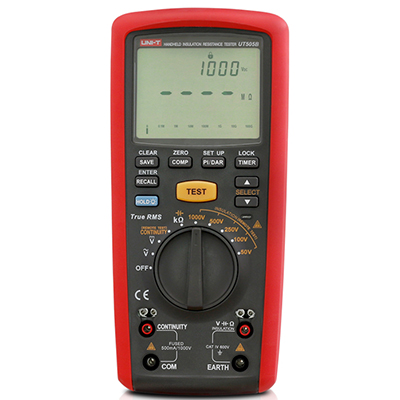

Product description: Handheld Insulation Resistance Testers
INQUIRY

Features

1. 6000 display count with analog bar

2. PI/DAR measurements, auto resistivity calculation

3. Comparison function

4. Lock/timing measurements, 6 sets of timing selectable

5. 99-group data storage

6. Auto discharge to improve safety

7. Data hold

8. Auto power off

9. Backlight

10. Single hand operation through remote controlled probe

11. Live wire testing

12. High voltage output alarm

Specifications	Range		Best Accuracy
Model			UT505A	UT505B
Insulation Resistance (Ω)	50V	50V/100V/250V/500V/1000V	0%~10%	0%~10%
		0.01MΩ~50.0MΩ	±(3%+5)	±(3%+3)
		50.0MΩ~1.0GΩ		±(3%+3)
	100V	1.0GΩ~10GΩ		±(10%+3)
		0.01MΩ~100.0MΩ	±(3%+5)	±(3%+3)
		100.0MΩ~1.0GΩ		±(3%+3)
	250V	1.0GΩ~20GΩ		±(10%+3)
		0.01MΩ~200.0MΩ	±(1.5%+5)	±(1.5%+5)
		200.0MΩ~1.0GΩ		±(1.5%+5)
	500V	1.0GΩ~50GΩ		±(10%+3)
		0.01MΩ~500MΩ	±(1.5%+5)	±(1.5%+5)
		500MΩ~1.0GΩ		±(1.5%+5)
	1000V	1.0GΩ~100GΩ		±(10%+3)
		0.1MΩ~2000MΩ	±(1.5%+5)	±(1.5%+5)
		2.0GΩ~9.9GΩ	±(10%+3)	±(5%+3)
		10.0GΩ~20GΩ	±(20%+10)	±(7%+3)
		20GΩ~200GΩ		±(20%+3)
	Load Current	50V(R=50kΩ) 1mA	0%~10%	0%~10%
		100V(R=100kΩ) 1mA	0%~10%	0%~10%
		250V(R=250kΩ) 1mA	0%~10%	0%~10%
		500V(R=500kΩ) 1mA	0%~10%	0%~10%
		1000V(R=1MΩ) 1mA	0%~10%	0%~10%
	Short Circuit Current		<2mA	<2mA
Leakage Current (A)	10 ~ 2000μA			±(10%+3)
Low Resistance (Ω)	0.01Ω~20.00kΩ (about 5.0V/>200mA)		±(1.5%+3)
Low Resistance (Ω)	0.01Ω~100Ω (about 5.0V/>200mA/20mA Optional)			±(1.5%+3)
General Resistance (Ω)	0.01kΩ~1000kΩ			±(3%+2)
DC Voltage (V)	0.0V~600.0V		±(2%+3)	±(2%+2)
AC Voltage (V)	0.0V~600.0V		±(2%+3)	±(2%+3)
Frequency (Hz)	45~1kHz			±(0.1%+3)
Capacitance (F)	100pF~500μF			±(5%+5)
Features
Display Count			6000	6000
Auto Range			√	√
True RMS			√	√
Step Voltage	10% steps at 50% ~ 120% of range		√	√
DAR	60s/15s and 60s/30s		√	√
PI			√	√
Timer			√	√
High Voltage Indication			√	√
Auto Discharge			√	√
Fuse Seltf Test				√
Analog Bar Graph			√	√
Auto Power Off			√	√
Continuity Buzzer			√	√
Data Hold			√	√
Data Storage			99	99
Comparison			√	√
LCD Backlight			√	√
Low Battery Indication			√	√
General Characteristics
Power	1.5V Batteries (LR6) × 6
LCD Size	78mm x 59mm
Product Color	Red and grey
Product Net Weight	630g
Product Size	103mm x 225mm x 59mm
Standard Accessories	Test Lead, Probe, Alligator Clip, Batteries
Standard Individual Packing	Carrying Bag, Gift Box, English Manual
Standard Quantity Per Carton	20pcs
Standard Carton Measurement	515mm × 380mm × 385mm (0.075 CBM Per Standard Carton)
Standard Carton Gross Weight	20kg
Optional Accessories	Remote Test Lead
