UT572

Features

1. Large 4 digit LCD Display, 5s sampling time

2. 2/3/4-wire earth resistance and soil resistivity measurements

3. Selectable test frequencies (94Hz/128Hz)

4. Disturbance voltage (Ust) and frequency (Fst) measurement

5. Earth resistance, RH and RS measurement

6. LCD backlight; auto power off

7. Data hold on screen

8. 20 sets of data storage

9. Double insulation

10. Compensated resistance RK measurement

11. Interference voltage alarm, auto stop measurement when voltage is too large

Specifications	Range	Best Accuracy
Model		UT572
Grounding Resistance (Re)	4Ω	±(3%+15)
	40Ω	±(3%+5)
	400Ω
	4kΩ
	40kΩ
Soil Resistivity (ρ)	4Ω	ρ=2×π×L×Re (Depending on the test result of Re)
	40Ω
	400Ω
	4kΩ
	40kΩ
Disturbance Voltage (Ust)	50V (DC test or AC test at 40Hz ～500Hz)	±(3%+3)
Disturbance Frequency (Fst)	40Hz ～ 500Hz	±(1%+2)
Features
2/3/4 Wire Test		√
Earth Resistance Test Frequency	94/128Hz	√
Siol Resistivity Test Distances	1~40m	√
Earth Resistance RH and RS Test		√
Compensating Resistance RK Test		√
Data Hold		√
Data Storage	20	√
LCD Backlight		√
Auto Power Off	Around 5 Minutes	√
Low Battery Indication	≤9.5V	√
General Characteristics
Power	1.5V Batteries (LR6) x 8
LCD Size	125mm x 37mm
Product Color	Red and grey
Product Net Weight	1100g
Product Size	210mm x 175mm x 90 mm

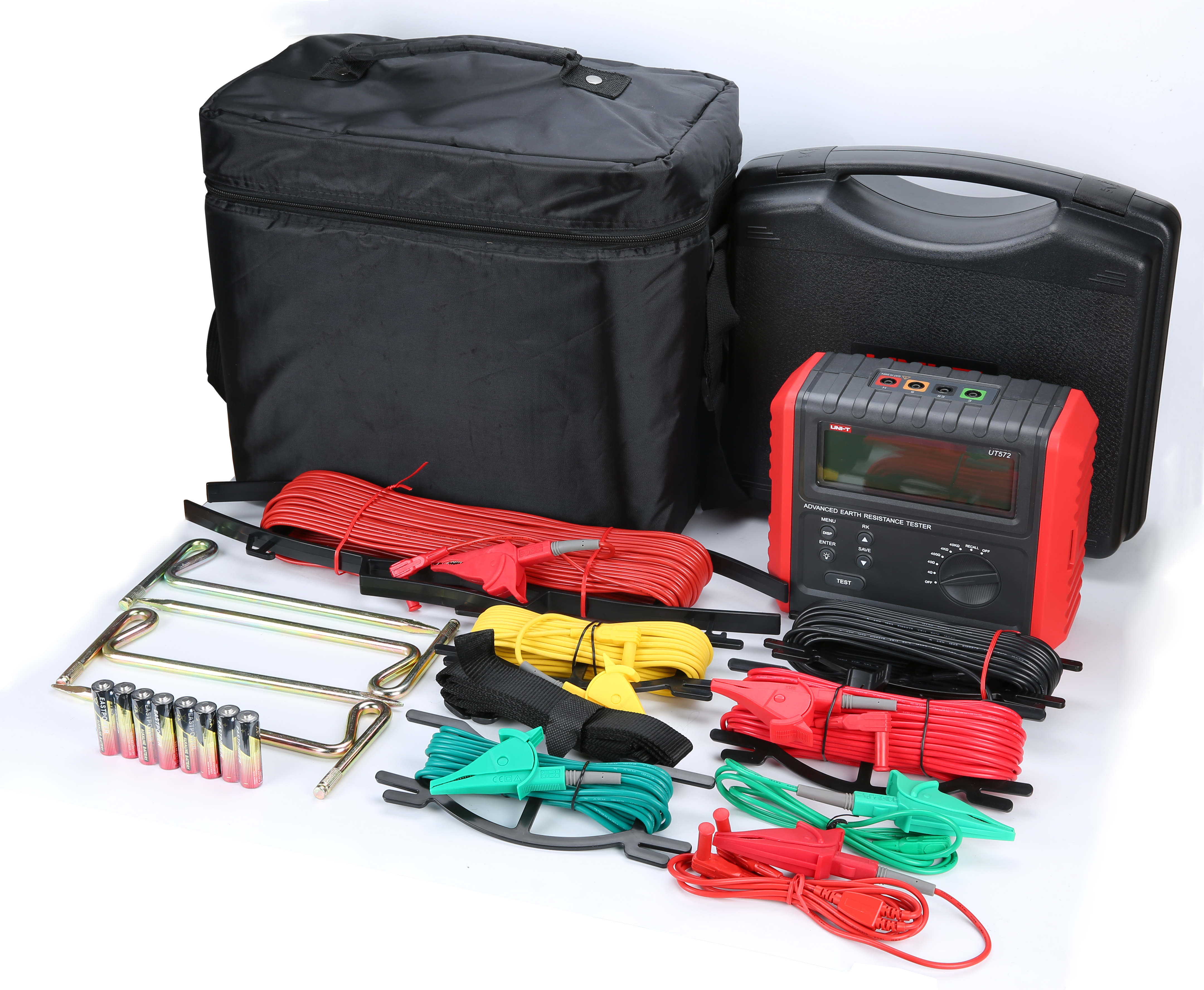

Standard Accessories	Batteries, Simple Test Lead with Alligator Clips(double plugs x 1, single plug x 1), Standard Test Lead with Alligator Clips(40m red x 1, 20m red x 1, 20m black x 1, 10m yellow x 1, 5m green x 1), Earth Spike x 2
Standard Individual Packing	Gift Box, Carrying Bag, Tool Box, English Manual
Standard Quantity Per Carton	2pcs
Standard Carton Measurement	455mm x 378mm x 355mm (0.061 CBM Per Standard Carton)
Standard Carton Gross Weight	15kg
