Specifications

Range

Accuracy

Model

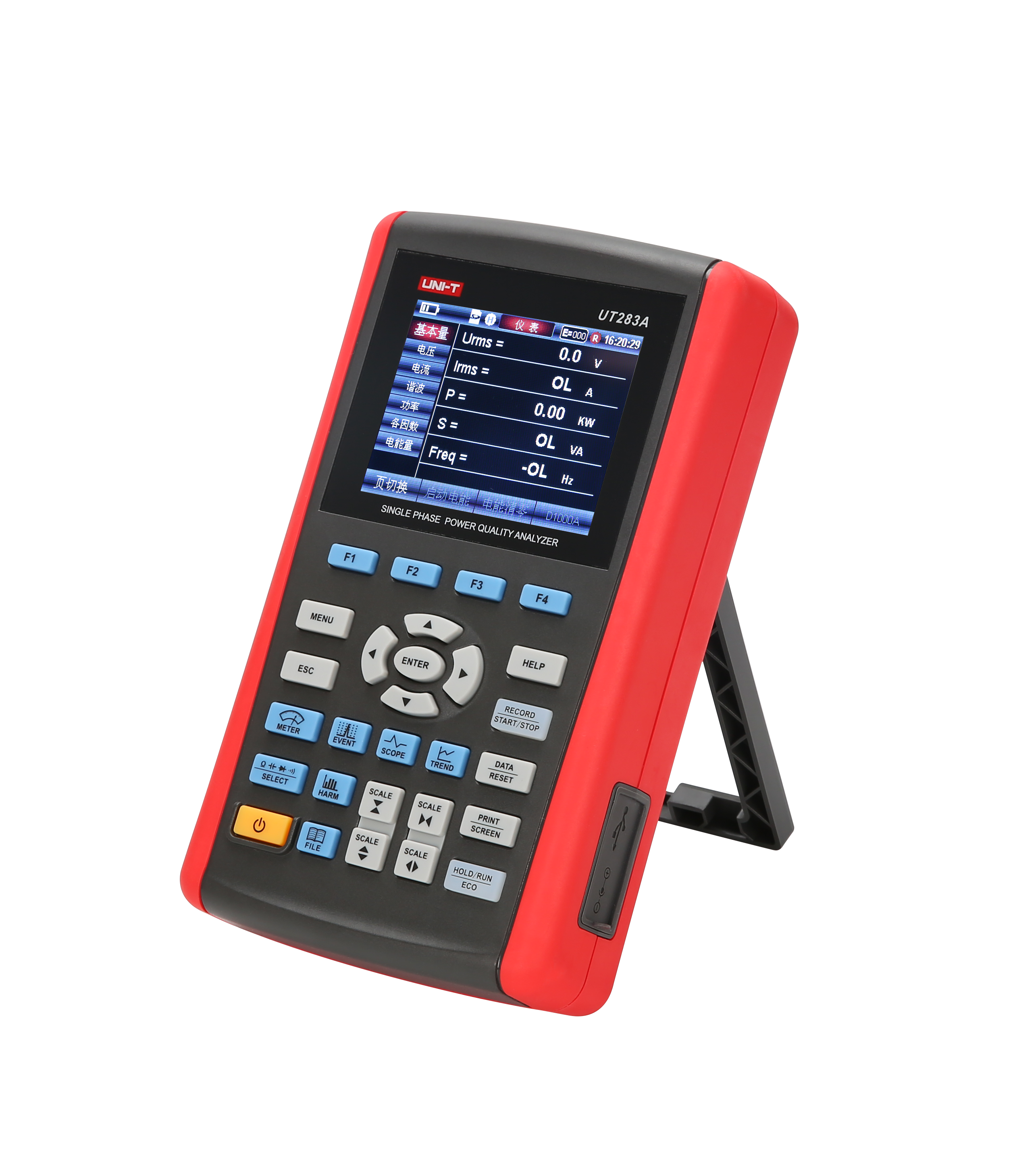

UT283A

Voltage (V)

10V~1000V    AC/DC

±0.5% Udin

AC Current (A)

AC 10A/100A/1000A

±0.5% f.s.

Frequency (Hz)

40~70Hz

±50mHz

Power (W)

>15%S

±1 %S

Power Factor

0~1.0

±0.02

Energy (Wh)

0～9999MWh

±1.5 %rdg

Crest Factor

1.0 to 10.0

±5 %

Voltage Harmonics or Inter Harmonics

Um≥3% Udin (1~51th, step 0.5th)

±5% Urms

Um≤3%Udin (1~51th, step 0.5th)

±0.15% Udin

Current Harmonics or Inter Harmonics

Im≥10% I f.s (1~51th, step 0.5th)

±5% Irms

Im≤10%I f.s (1~51th, step 0.5th)

±0.5%f.s.

Power Harmonics

(1~51th, step 1th)

Calculated based on voltage and current amplitude and phase accuracy

Transients

±6000V Peak, Fsample=2MHz

±5%Rdg.±5%Fs

Dips Swell & Interrupt

0~1000V AC

Udin±1 %

AC Inrush Current (A)

AC 10A/100A/1000A

±1%f.s

Resistance (Ω)

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

±(1.0%+3)

Capacitance (F)

60nF/600nF/6μF/60μF/600μF

±(4%+20)

Temperature (°C)

-40°C~1000°C

±(2.5%+3)

Humidity (°F)

-40°F~1832°F

±(2.5%+4)

Features

True RMS

√

Harmonic Analysis

Up to 51th

√

Flick Measure

10 Minutes PST and PLT value

√

Voltage Ratio

√

Current Ratio

√

Event Capture

√

Trend Capture

√

Data Logging

8GB

√

USB Interface

√

Display

3.5 inches 64K color screen TFT LCD (320 x 240)

√

Backlight Adjustable

√

Low Battery Indication

√

Input Protection

√

General Characteristics

Power

7.4V, 3600mAh, Li-ion Battery

LCD

70mm x 52mm

Product Color

Red and grey

Product Weight

808.4g

Product Size

199mm × 118mm × 49mm

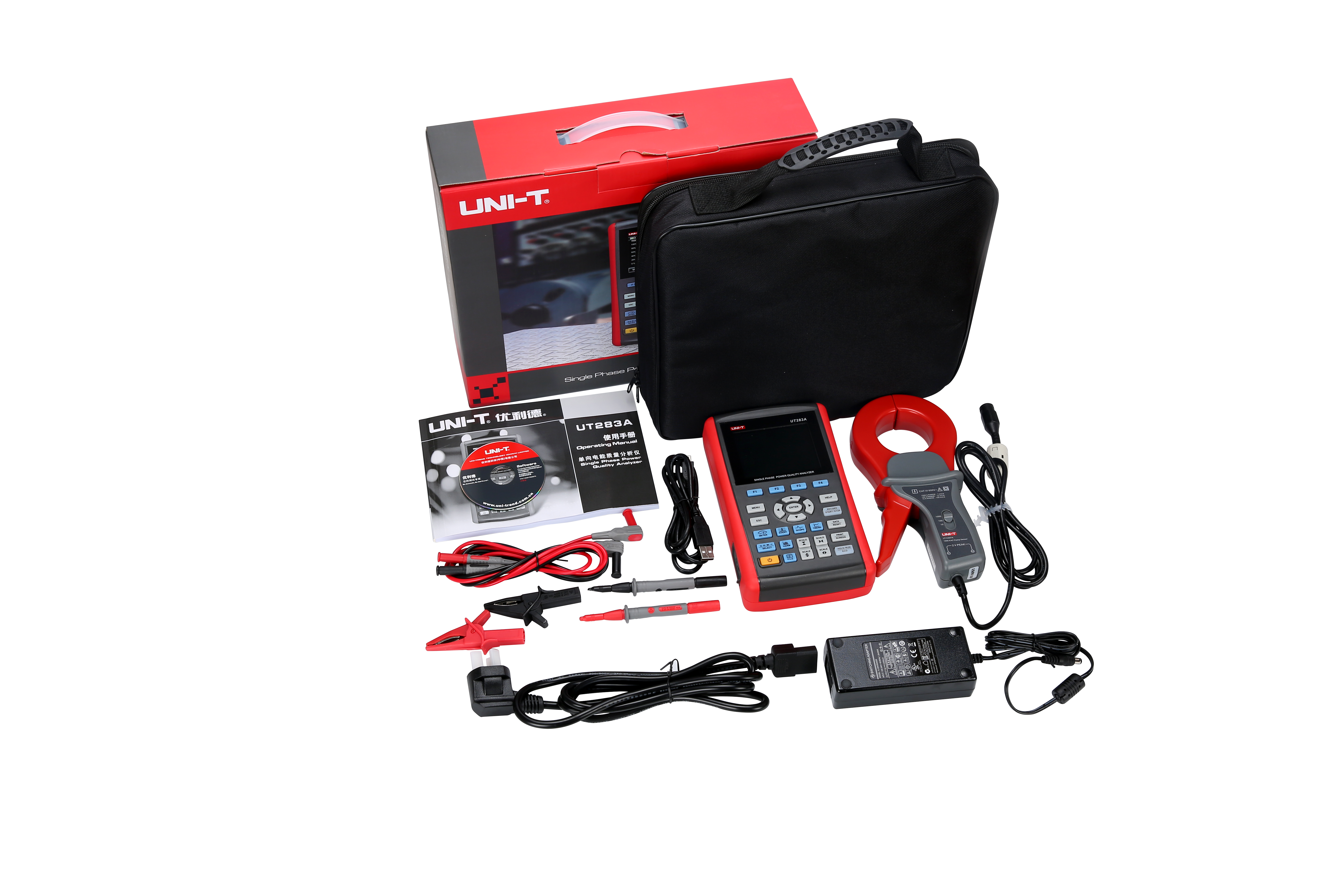

Standard Accessories

Power Adaptor, Test Lead, Current Clamp (10A/100A/1000A), USB Cable, Software CD, SD Card (8GB)

Standard Individual Packing

Gift Box, Carrying Bag, User Manual

Standard Quantity Per Carton

4pcs

Standard Carton Measurement

490mm × 380mm × 310mm

Standard Carton Gross Weight

10kg
