Specifications

Model

UTi160D

Sensor Type

Uncooled Focal Plane Arrays

Resolution

160*120  pixels

Field of View /Minimum Focus Distance

20°×15°/0.1m

Spatial Resolution (IFOV)

2.2mrad

Visible Light Resolution

640×480 Full Color

Image Mode

Infrared/Visible Light/Fusion/PIP

Focus

Manual

Infrared Spectral Bandwidth

8~14um

NETD

≤0.08℃@30℃

Temperature Range

-20℃~400℃

Accuracy

±2°C or ±2% (whichever is greater)

Features

Display Type

3.5"TFT LCD, Rotatable

Palettes

Iron, Iron-Invert, Rainbow, Feather, Grey, Grey Inverted

Image Adjustment

Auto/Manual

Image Format

*·TIR, *.CCD

Video Output

Support; PAL (50Hz) or NTSC (60Hz) (With Optional Base)

Measurement Mode

4 Movable Spots, Area (MAX, MIN) isothermality analysis

Parameters Setting

Emissivity, Distance, Temperature, Relative Humidity

Temperature Calibration

√

High/Low Temperature Alarm

√

Laser Pointer

√

Image Capture

√

Image Storage

2GB SD Card (Support up to 16GB)

Temperature Units

℃/℉

Flashlight

Yes

Support Languages

English / Simplified Chinese

Power Mode

Standard/Power Saving/Auto Power Off

Analyzing Software

Professional Version. Analysis any temperature point and creates report in WORD format.

Water Proof Rating

IP54

Impact/Vibration

25G/2G

General characteristics

Power

Li-ion 1250mAh

Product Color

Red and grey

Product Net Weight

500g

Product Size

170mm × 80mm × 160mm

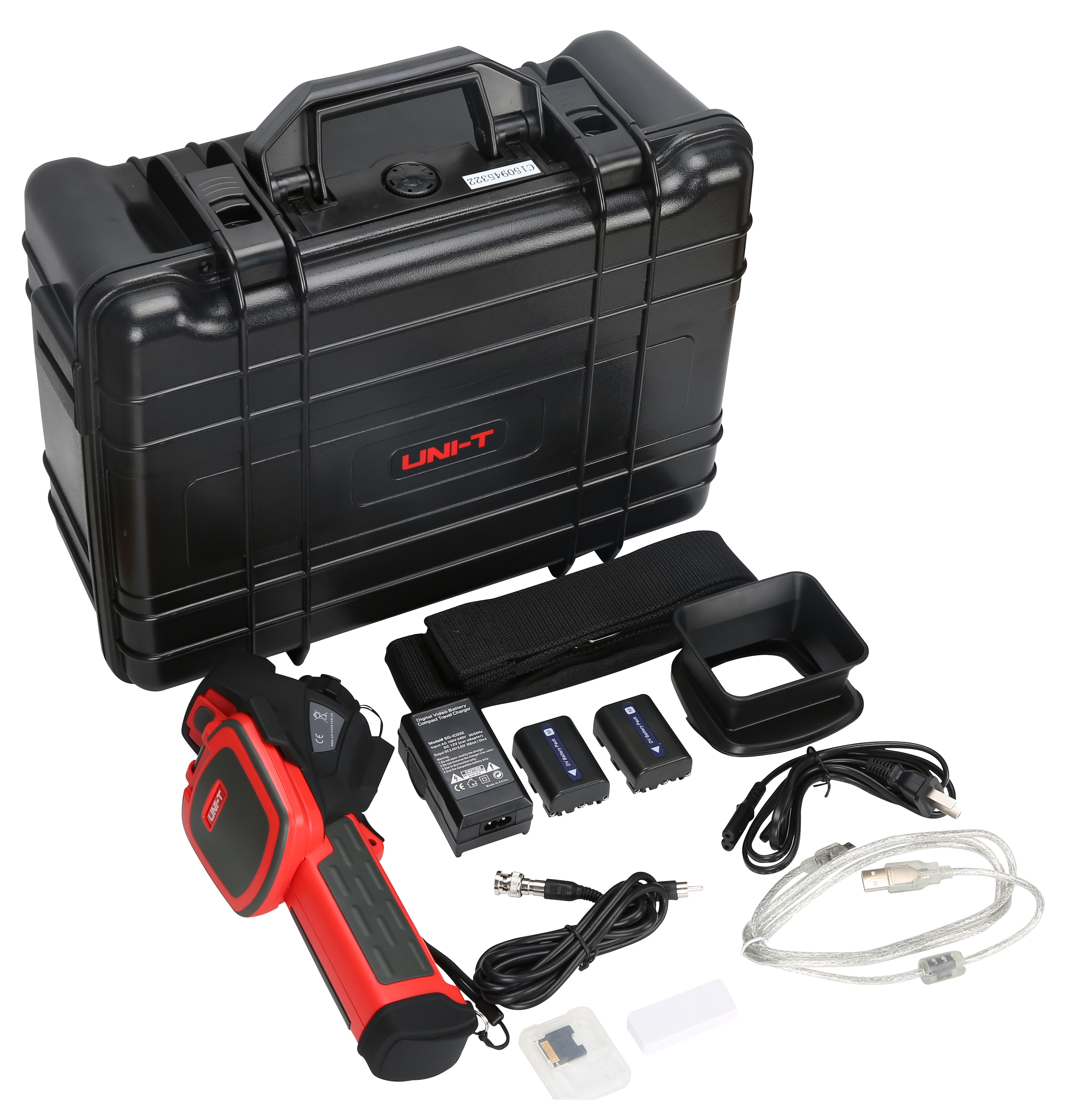

Standard Accessories

Batteries, Power Charger, SD Card (2G), Card Reader, Camera Cover, Software CD

Standard Individual Packing

Gift box, Toolbox, User Manual

Standard Quantity Per Carton

5pcs

Standard Carton Measurement

545mm × 380mm × 325mm (0.067 CBM Per Standard Carton)

Standard Carton Gross Weight

11.6kg

Optional Accessories

Power Adapter, 16G SD card, Vehicular Power Cord, 3.8° / 6.4° / 12°/ 38° Lens, Tailered-made Temperature Range (600℃, 1000℃, 1500℃ Available)
