IR Thermometers

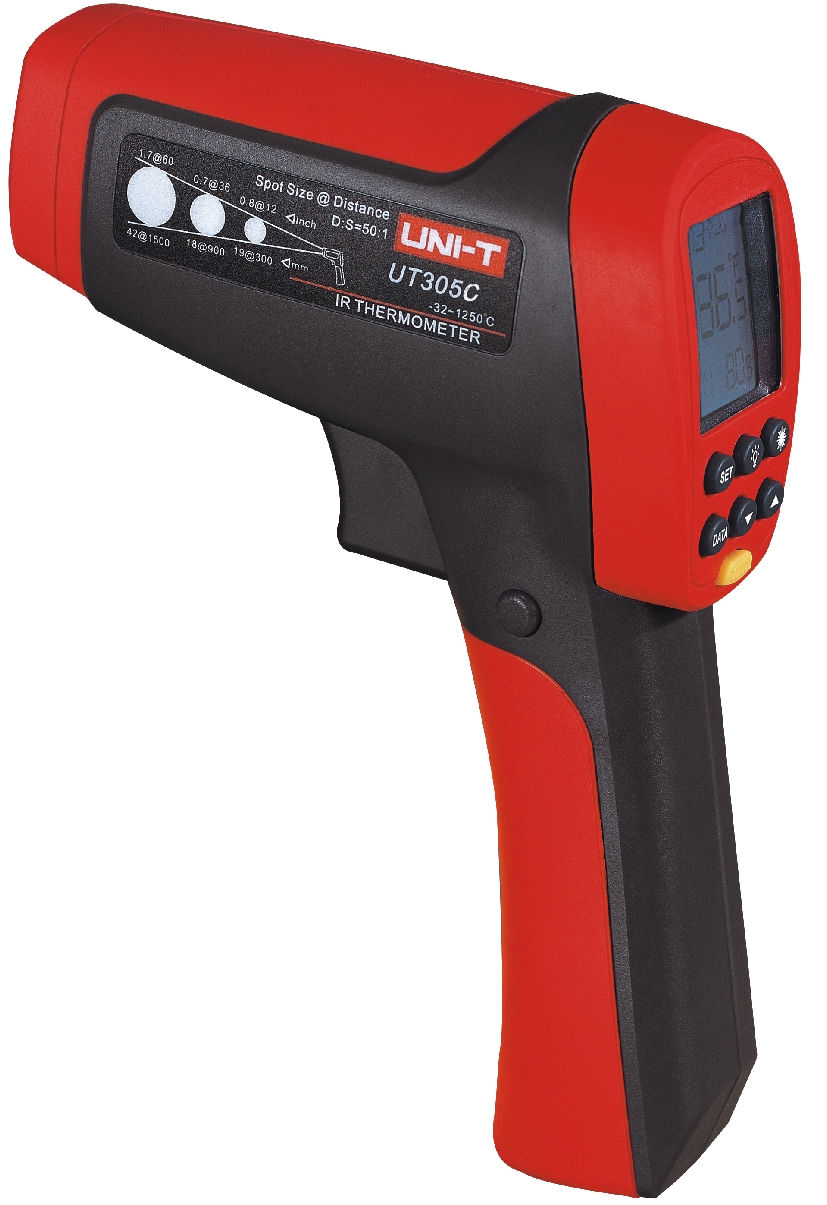

UT305 A/C

Main features

1. K type temperature probe

2. 99 sets of data storage, USB interface, PC software

3. MAX/MIN/AVG/DIF modes

4. High/Low temperature limit setting with audible alarm

5. Adjustablemissivity 0.1~1.0

6. USB, battery, or power adapter

7. Tripod mount and continuous measurement mode

8. ℃/℉ selectable; auto power off

9. Adjustable LCD backlight

10. Optional (on/off) laser pointer

11. Low battery indication; data hold

Specifications	Range
Model	UT305A	UT305C
Temperature Range	-50°C ～1050°C	-50°C ～1550°C
Temperature Range	-58°F～1922°F	-58°F～2822°F
Accuracy	±1.8°C or ±1.8%	±1.8°C or ±1.8%
Repeatability	±0.5°C or ±0.5%	±0.5°C or ±0.5%
Resolution	0.1 (When<10°C:0.2)	0.1 (When<10°C:0.2)
Distance to Spot Size	50:01:00	50:01:00
Response Time	250ms (95% of reading)	250ms (95% of reading)
Emissivity	0.10～1.0 Adjustable	0.10～1.0 Adjustable
Laser Type	Class 2 (Ⅱ)	Class 2 (Ⅱ)
Laser Power	＜1mW	＜1mW
Laser Wavelength	630nm～670nm	630nm～670nm
Spectral Response	8μm～14μm	8μm～14μm
Features
°C/°F Selection	√	√
Laser Switch	√	√
Display Hold (s)	8 seconds	8 seconds
Data Hold	√	√
Auto Power Off	√	√
Low Battery Indication	√	√
MAX Mode	√	√
MIN Mode	√	√
DIFF Mode	√	√
AVG Mode	√	√
Data Logging	99	99
USB Interface	√	√
High Alarm	√	√
Lower Alarm	√	√
LCD Backlight	√	√
Electricity Cut-off Memory	√	√
Tripod Mount	√	√
T-C Thermocouple Measurement	√	√
General Characteristics
Power	USB or 9V Battery (6F22) or Power Adaptor
LCD Size	33mm X 38 mm
Product Color	Red and grey
Product Net Weight	320g
Product Size	183mm X 147mm X 57mm
Standard Accessories	Battery, USB Interface Cable, PC Software CD
Standard Individual Packing	Gift Box, Tool Box, English Manual
Standard Quantity Per Carton	5pcs
Standard Carton Measurement	480mm X 372mm X 315mm (0.056 CBM Per Standard Carton)
Standard Carton Gross Weight	11kg
