Main features
1. 500MSa/s sampling rate and 16-bit vertical resolution
2. 32Mpts arbitrary/7GB nonvolatile waveform storage
3. Modulations available: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM
4. 160MHz sine wave output, 1μHz full-band resolution
5. 50MHz pulse waveform, adjustable rise/fall time
6. Two equivalent-performance channels
| General Specifications | |||

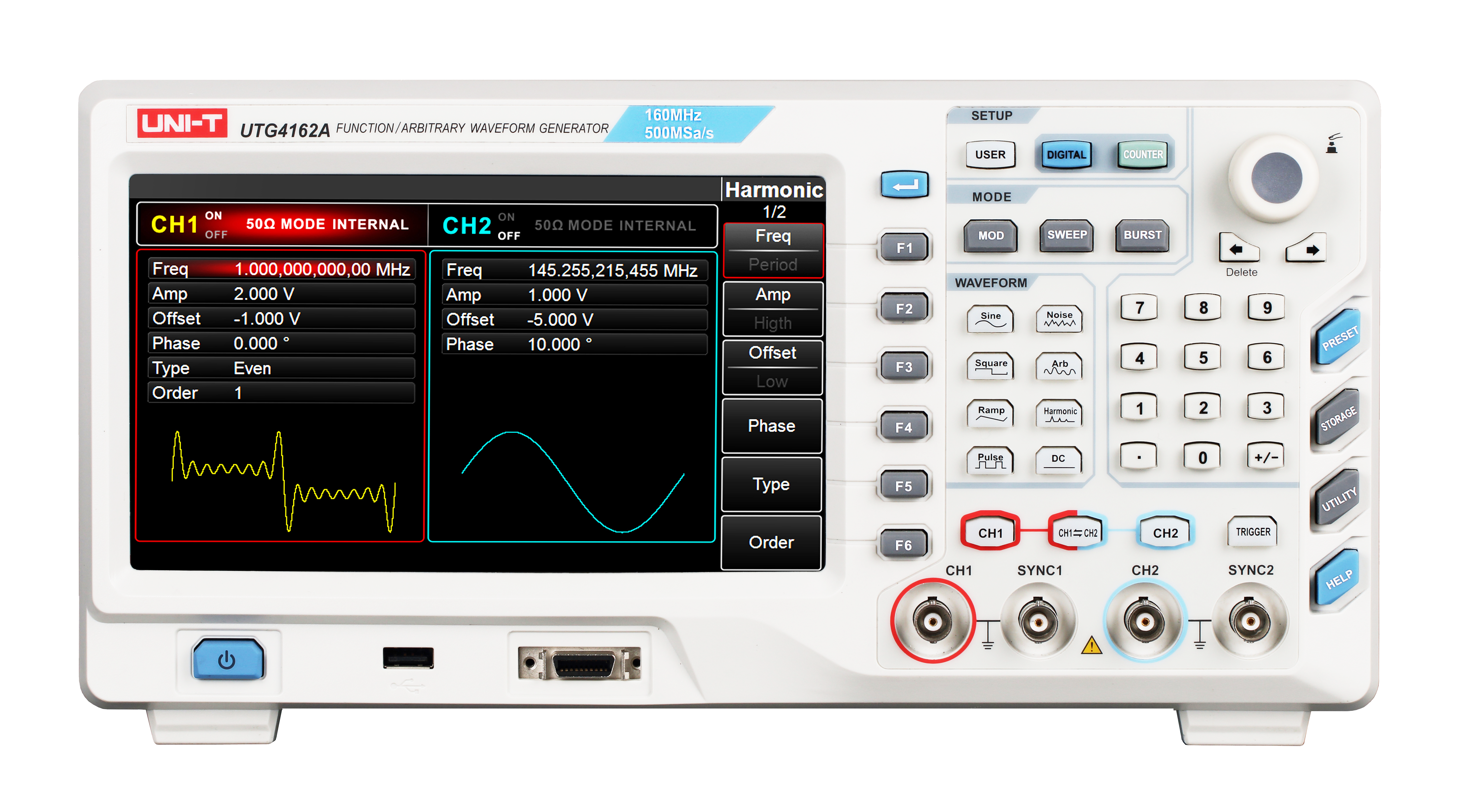

| Model | UTG4082A | UTG4122A | UTG4162A |
| Channels | 2 | ||
| Bandwidth | 80MHz | 120MHz | 160MHz |
| Sample Rate | 500MSa/s | ||
| Waveforms | Sine, Square, Ramp, Harmonic, Pulse, Noise, DC Voltage, Arbitrary | ||
| Working Modes | Output On/Off, Continuous, Modulation, Frequency Sweep, Burst | ||
| Modulations | AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM | ||
| Frequency Characteristics | |||
| Sine | 1μHz～80MHz | 1μHz～120MHz | 1μHz～160MHz |
| Square | 1μHz～30MHz | 1μHz～40MHz | 1μHz～50MHz |
| Pulse | 1μHz～30MHz | 1μHz～40MHz | 1μHz～50MHz |
| Ramp | 1μHz～2MHz | 1μHz～3MHz | 1μHz～4MHz |
| Harmonic | 1μHz～40MHz | 1μHz～50MHz | 1μHz～80MHz |
| Noise (-3dB) | 80MHz Bandwidth | 120MHz Bandwidth | 160MHz Bandwidth |
| Arbitrary | 1μHz～20MHz | 1μHz～30MHz | 1μHz～40MHz |
| Resolution | 1μHz | ||
| Arbitrary Waveform | |||
| Length | 8~32Mpts | ||
| Vertical Resolution | 16 bits | ||
| Sample Rate | 500MSa/s | ||
| Min Fall/Rise Time | ＜7ns | ＜6ns | ＜5ns |
| Jitter (RMS) | 6ns+30ppm (typical) | ||
| Nonvolatile Memory | 7GB | ||
| Output Characteristics | |||
| Amplitude Range (50Ω) | ≤ 20MHz: 1mVpp～10Vpp; ≤ 80MHz: 1mVpp～5Vpp; | ||
| ≤ 120MHz: 1mVpp～2.5Vpp; ≤ 160MHz: 1mVpp～1Vpp; | |||
| Accuracy (1kHz sine) | ±(1% of a set value+1mVpp) | ||
| Amplitude Flatness (with reference to 1kHz sine wave, 5Vpp) | ≤ 10MHz: ±0.1dB; ≤ 80MHz: ±0.2dB; ≤ 120MHz: ±0.4dB; ≤ 160MHz : ±0.8dB | ||
| DC Offset | |||
| Range (Peak AC+DC) | ±5V(50Ω); ±10V (High resistance) | ||
| Accuracy | ±(2% of Offset setting+ 0.5% of amplitude +2mV) | ||
| Waveform Output | |||
| Impedance | 50Ω, typical | ||
| Protection | Short-circuited protection, waveform output disabled automatically when overloaded. | ||
| Connector on Back Panel | |||
| Modulation Output | |||
| External analog modulation | ＜20kHz (Input frequency) | ||
| ±5Vpk=100% modulation | |||
| 5kΩ (Input impedance) | |||
| Clock Input/Output | |||
| Input/Output frequency range | 10MHz±500Hz | ||
| Input/Output level range | TTL compatible | ||
| Input/Output impedance | 10kΩ/50Ω (typical, AC coupling) | ||
| Lock time | ＜1s | ||
| Trigger Input | |||
| Input Level | TTL compatible | ||
| Slope | Rise or Fall, selectable | ||
| Pulse Width | ＞100ns | ||
| Input Impedance | ＞10kΩ, DC-coupled | ||
| Response time | Sweep: ＜500μs, typical; Pulse string: ＜500ns, typical | ||
| Trigger Output | |||
| Level | TTL compatible | ||
| Pulse Width | ＞400ns, typical | ||
| Output Impedance | 50Ω, typical | ||
| Max. Frequency | 1MHz | ||
| Sync Output | |||
| Input Level | TTL compatible | ||
| Output Impedance | 50Ω | ||
| Frequency Counter | |||
| Level | 200mVpp~9Vpp | ||
| Input Frequency | 100mHz~800MHz | ||
| Accuracy | ±51ppm | ||
| Frequency Resolution | 7 bits | ||
| General Characteristics | |||
| Power | 100~240V ACrms, 50Hz/60Hz | ||
| Display | 8 inches, TFT LCD, WVGA (800 × 480) | ||
| Product Color | White and grey | ||
| Product Net Weight | 3.5kg | ||
| Product Size (W×H×D) | 336mm × 164mm × 108mm | ||
| Standard Accessories | BNC Cable, Power Cord, USB Cable, PC Software CD | ||
| Standard Individual Packing | Gift Box, English Manual | ||
| Standard Quantity Per Carton | 2pcs | ||
| Standard Carton Measurement (L×W×H) | 675mm × 240mm × 350mm | ||
| Standard Carton Gross Weight | 9.5kg | ||
| Optional Accessories | Digital interface | ||
