Power Supply

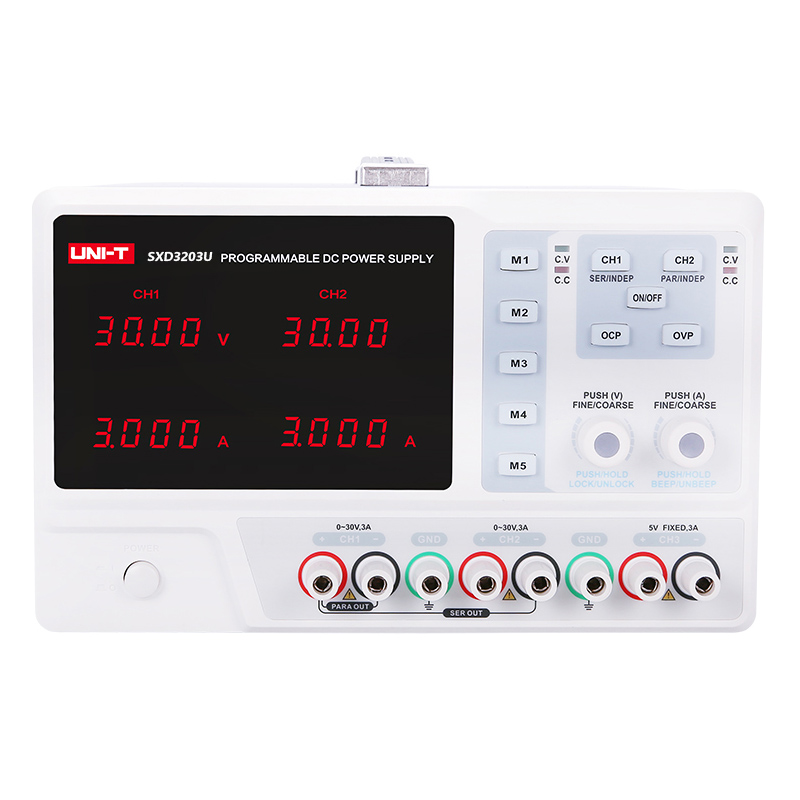

SXD3203U / UTP3305C

Product description: DC Power Supply
INQUIRY

Features 1. High precision 4-bit voltage and current display 2. Over votlage and current protection 3. Over temperature protection 4. One key storage recall of 5-group data; Optional LAN interface 5. Power-off memory; Software calibration; Keyboard lock Specifications		SXD3203U	UTP3305C
Rated output voltage		0~30V (CH1/CH2)	0~30V (CH1/CH2)
Rated output current		0~3A (CH1/CH2)	0~5A (CH1/CH2)
Output power		195W	315W
Load effect	Voltage	<0.01%+3mV	<0.01%+5mV
Load effect	Current	<0.1%+5mA	<0.1%+10mA
Power effect	Voltage	<0.01%+3mV	<0.01%+3mV
Power effect	Current	<0.1%+3mA	<0.1%+3mA
Resolution setting	Voltage	10mV	10mV
Resolution setting	Current	1mA	1mA
Accuracy setting (25℃±5℃)	Voltage	<0.5%+20mV	<0.5%+20mV
Accuracy setting (25℃±5℃)	Current	<0.5%+5mA	<0.5%+10mA
Ripple (20Hz~20MHz)	Voltage	≤1mVrms	≤2mVrms
Ripple (20Hz~20MHz)	Current	≤3mArms	≤3mArms
Output temperature coefficient	Voltage	≤150ppm	≤150ppm
Output temperature coefficient	Current	≤150ppm	≤150ppm
Recall resolution	Voltage	10mV	10mV
Recall resolution	Current	1mA	1mA
Voltage rise delay		≤100ms (10% rated load)	≤100ms (10% rated load)
Parallel load effect		≤0.1%+0.1V	≤0.1%+0.1V
Serial load effect		≤0.1%+0.1V	≤0.1%+0.1V
CH3 output features	Voltage	5V	5V
	Current	3A	3A
	Voltage accuracy	±50mV	±50mV
	Load effect	±50mV	±50mV
Interfaces	USB Device, RS-232
General characteristics
Display	4 windows, LED
Power	AC 100V/120V/220V/230V±10%
Product size (W×H×D)	260mm×176mm×317mm
Product net weight	5.35kg		7.5kg
Standard accessories	USB and RS-232 interface cables, power cord
Standard individual packing	Gift box
Standard quantity per carton	1pcs
Standard carton measurement	430mm×400mm×255mm
Standard carton gross weight	6.15kg		9kg
