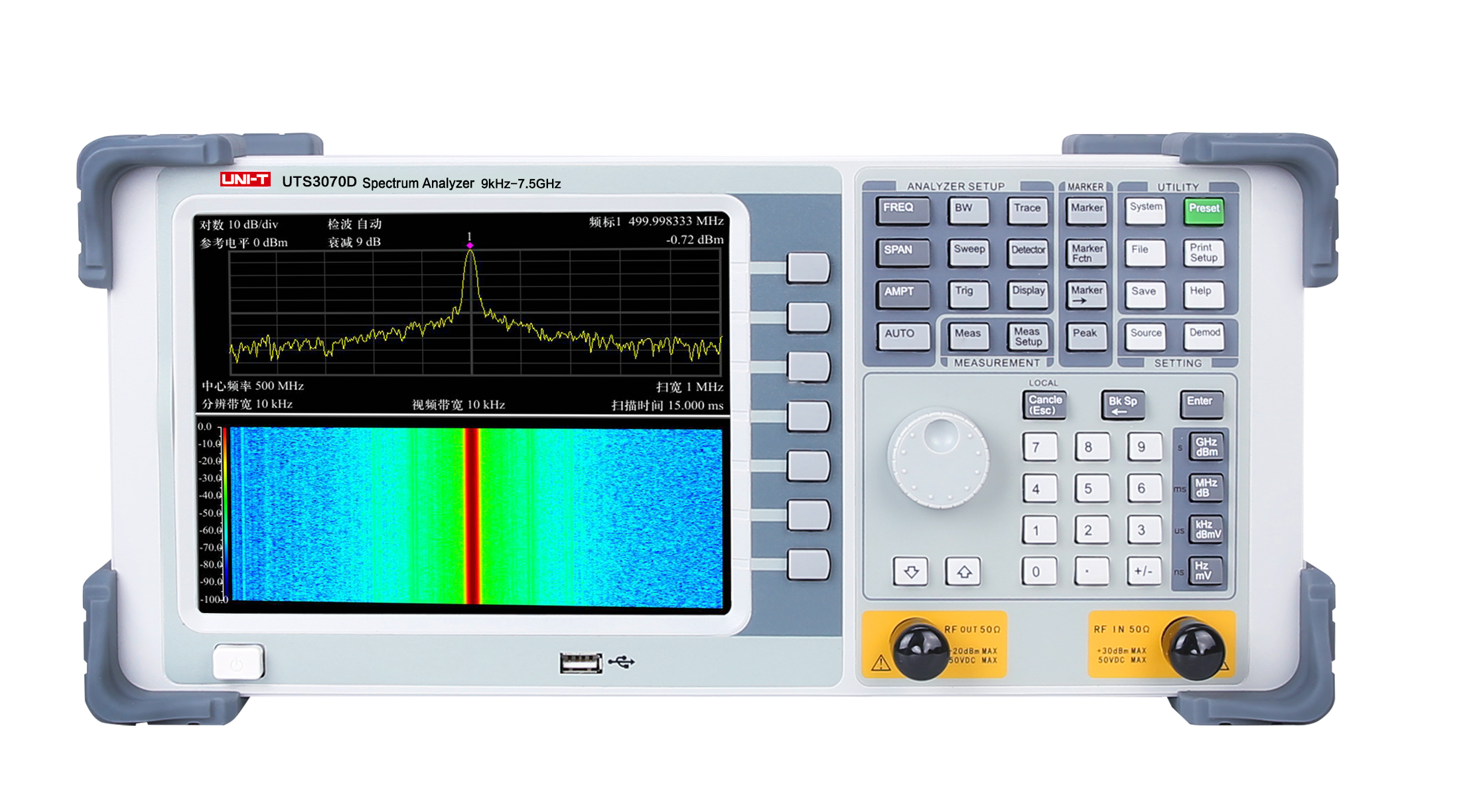

UTS3070D

Product description: Spectrum Analyzer
INQUIRY

Main features

1. Resolution bandwidth: 1Hz~3MHz, continuously adjustable

2. The best sensitivity: -161dBm

3. Tracking/Independent sources available

4. Transient waveform detection, frequency monitoring test, Pass/Fail function

Specifications	UTS3070D
Spectrum Measurement
Range	9kHz～7.5GHz
Resolution	1Hz
Accuracy	±(Frequency Marker ReadoutFrequency Reference Accuracy +1%Span +10%RBW+0.5[Span/(Sweep Points-1）]+1Hz)
Internal Reference (10MHz)	Aging Rate ＜1ppm/year; Stability Over Temperature ＜0.5ppm (15℃ ~ 35℃)
Resolution Bandwidth (RBW)
Range (＜10Hz Option )	1Hz～500kHz, 1MHz, 3MHz
Electability (60dB/3dB)	RBW≤500kHz; ＜5:1 Typical (Digital implementation, next to Gaussian shape)
Accuracy	RBW≤500kHz; ＜5%, Typical
Video Bandwidth	10Hz~3MHz, 1-3-10 Sequence
Average Noise Level (1Hz RBW, 0dB RF Attenuator)
PA OFF	100kHz～1MHz: <-95dBm-3×(f/100kHz)dB
	100kHz～10MHz: <-125dBm
	10MHz～2GHz: <-133dBm
	2GHz～3.4GHz: <-130dBm
	3.4GHz～5GHz: <-133dBm
	5GHz～7.5GHz: <-127dBm
PA ON	100kHz～1MHz: <-110dBm-3×(f/100kHz)dB
	100kHz～10MHz: <-140dBm
	10MHz～2GHz: <-148dBm
	2GHz～3.4GHz: <-143dBm
	3.4GHz～5GHz: <-145dBm
	5GHz～7.5GHz: <-138dBm
Phase Noise (fc=500MHz)
Offset 30kHz	-80dBc/Hz
Offset 100kHz	-90dBc/Hz
Offset 1MHz	-110dBc/Hz
Sweep Time
Span (100Hz≤SPAN≤3GHz)	10ms to 3000s
Zero Span	1ms to 3000s
Sweep Modes	Continuous, Single
Trigger
Trigger Source	AUTO, Video, EXT
Offset 100kHz	5V TTL Level (Typical)
Frequency Counter
Resolution	1Hz, 10Hz, 100Hz, 1kHz
Uncertainty	Frequency Readout x Frequency Reference Progress+Counter Resolution
Amplitude Accuracy (20℃~30℃)
Overall Amplitude Accuracy (90%)	±1.5dB Input Signal Range: -50dBm ~ 0dBm
Amplitude
Max. Safe Input Level	Average Continuous Power: +23dBm
Max. Input DC Voltage	50Vdc
Input Attenuator Range	0~30dB, in 3dB step
1dB Compression	+10dBm
Stray and Residual Response
Third-Order Intercept (TOI)	＞30MHz:﹢15dBm
Second Harmonic Intercept (SHI)	+30dBm
Input Related Spurious	＜-60dBm
Residual Response	＜-85dBm
Tracking Generator
Frequency Range	100kHz to 3.2GHz
Output Power	-30dBm ~ 0dBm, in 1dB step
Output Flatness	Tracking Signal Source (100kHz ~ 3.2GHz)	±3dB
	Independent Signal Source (150MHz ~ 3.2GHz)
Input/Output
RF Input	N Type, Negative (50Ω)
USB	USB Host, USB Device
LAN	10/100 Base-T, RJ-45 Connector
RS-232	9 Pin D-SUB (Positive)
AM/FM Demodulation	Headset
Reference Input/Output	10MHz, BNC Negative, Input: 0dBm ~ +10dBm; Ouput: 0dBm±2dB
VGA	640 × 480, 60Hz,15 Pin, D-SUB (Negative)
General Characteristics
Internal Memory	128MB
Power	Input Voltage: 100VAC~240VAC; Frequency: 40Hz～60Hz; Max Consumption: 30W
Display	8.4 inches TFT LCD, VGA (800×600)
Product Color	White and grey
Product Net Weight	6.5kg
Product Size (W×H×D)	390mm × 182mm × 230mm

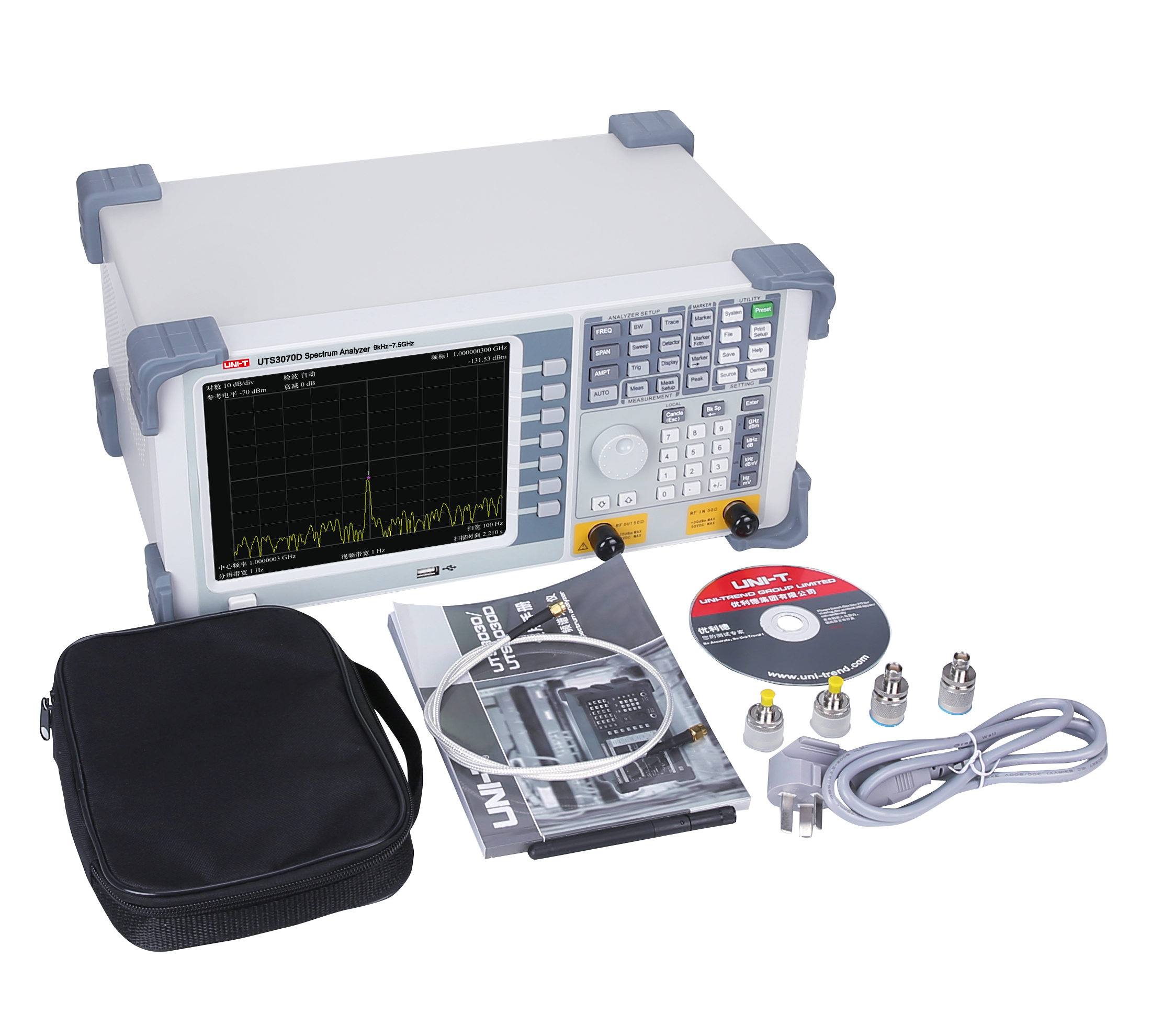

Standard Accessories	Power Cord, N/SMA Convertor, N/BNC Convertor, RF Cable, Antenna
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	1pcs
Standard Carton Measurement (L×W×H)	480mm × 380mm × 285mm
Standard Carton Gross Weight	9.3kg
Optional Accessories
USB-GPIB
