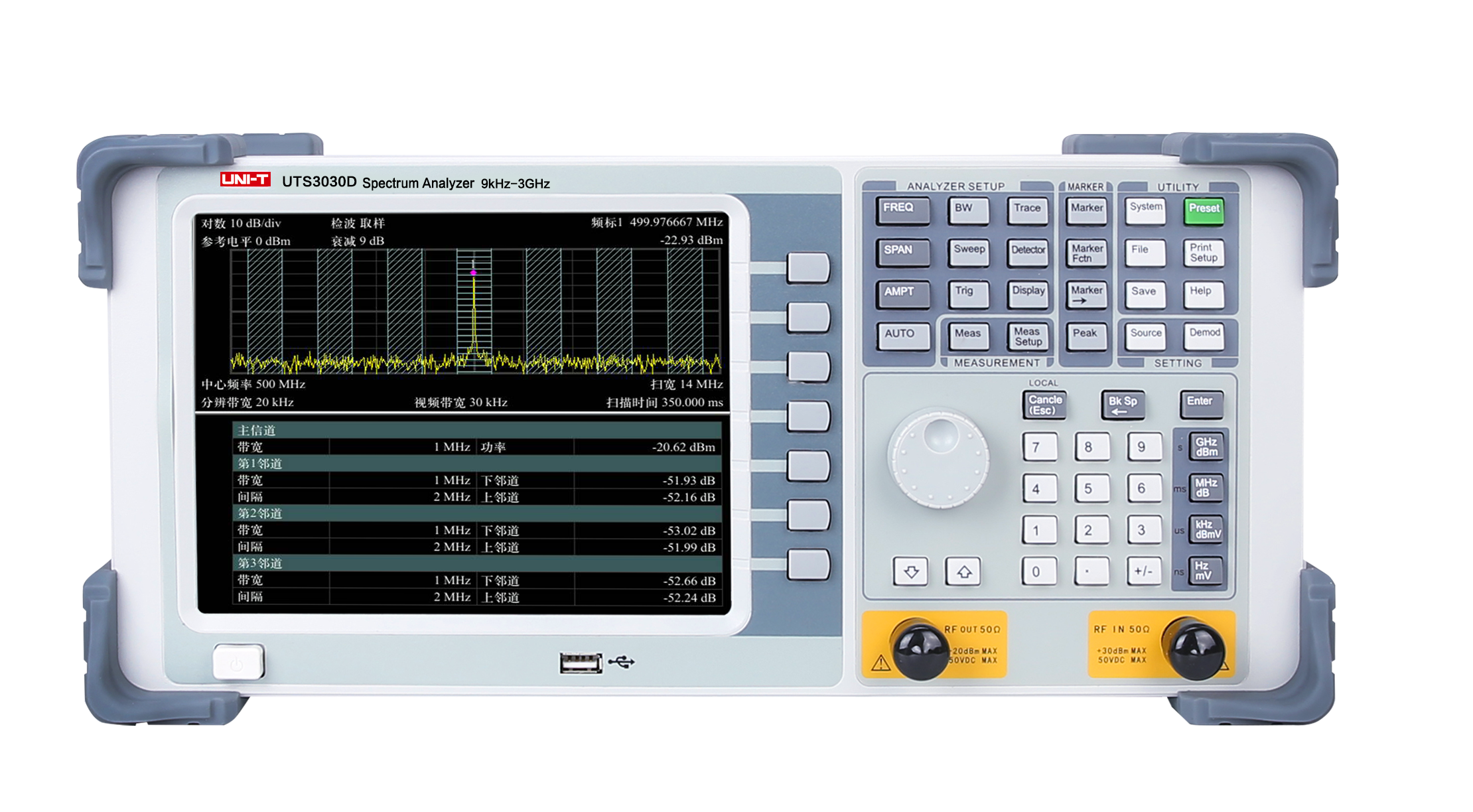

UTS3030 / UTS3030D

Product description: Spectrum Analyzer - discontinued
INQUIRY

Features

1. Frequency range, 9kHz~3GHz;
2. Resolution bandwidth 10Hz~3MHz (1-10 sequence);
3. 3G signal generator, can be used as a tracking generator and independent signal cource;
4. Combine frequency measurement, AM and FM demodulation, adjacent-channel power measurement with chromatogram function;
5. 5 trace line measurement display;
6. 8.4 inches LED backlight display, Chinese and English menu;
7. Various communication interfaces, USB, LAN, VGA, GPIB, RS232;

8. Compact and lightweight;

Specifications	UTS3030	UTS3030D
Spectrum Measurement
Range	9kHz～3GHz
Resolution	1Hz
Accuracy	±(Frequency Marker ReadoutFrequency Reference Accuracy +1%Span +10%RBW+0.5[Span/(Sweep Points-1)]+1Hz)
Internal Reference (10MHz)	Aging Rate ＜1ppm/year; Stability Over Temperature ＜0.5ppm(15℃ ~ 35℃)
Resolution Bandwidth (RBW)
Range	Range (＜1kHz Optional): 10Hz~500kHz(1-10 Sequence), 1MHz, 3MHz
Electability(60dB/3dB)	RBW≤500kHz; ＜5:1 Typical (Digital implementation,next to Gaussian shape); ＜5% Typical
Accuracy	RBW≤500kHz; ＜5%, Typical
Video Bandwidth	10Hz~3MHz, 1-3-10 Sequence
Average Noise Level (10Hz RBW, 0dB RF Attenuator)
100kHz～1MHz	<-90dBm-3×(f/100kHz)dB
100kHz～10MHz	<-120dBm
10MHz～1GHz	<-122dBm
1GHz～3GHz	<-120dBm
Phase Noise
Offset 10kHz	-85dBc/Hz
Offset 1MHz	-115dBc/Hz
Sweep Time
Span (100Hz≤SPAN≤3GHz)	10ms to 3000s
Zero Span	1ms to 3000s
Sweep Modes	Continuous, Single
Trigger
Trigger Source	AUTO, Video, EXT
Offset 100kHz	5V TTL Level (Typical)
Frequency Counter
Resolution	1Hz, 10Hz, 100Hz, 1kHz
Uncertainty	Frequency Readout x Frequency Reference Progress+Counter Resolution
Amplitude Accuracy (20℃~30℃)
Overall Amplitude Accuracy(90%)	±1.5dB Input Signal Range: -50dBm ~ 0dBm
Amplitude
Max. Safe Input Level	Average Continuous Power: +33dBm
Max. Input DC Voltage	50Vdc
Input Attenuator Range	0~50B, in 1dB step
1dB Compression	+13dBm
Stray and Residual Response
Third-Order Intercept (TOI)	＞30MHz: ﹢10dBm
Second Harmonic Intercept (SHI)	+30dBm
Input Related Spurious	＜-60dBm
Residual Response	＜-85dBm
Tracking Generator
Frequency Range	100kHz to 3GHz
Output Power	-30dBm ~ 0dBm, in 1dB step
Output Flatness	±3dB
Input/Output
RF Input	N Type, Female (50Ω)
USB	USB Host, USB Device
LAN	10/100 Base-T, RJ-45 Connector
RS-232	9 Pin D-SUB (Positive)
AM/FM Demodulation	Headset
Reference Input/Output	10MHz, BNC Negative, Input: 0dBm ~ +10dBm; Ouput: 0dBm±2dB
VGA	640*480, 60Hz,15 Pin, D-SUB (Negative)
General Characteristics
Internal Memory	256MB
Power	Input Voltage: 110VAC / 220VAC；Frequency: 40Hz～60Hz; Max Consumption: 60W
Display	8.4 inches TFT LCD, 640×480
Product Color	White and grey
Product Net Weight	8.6kg
Product Size	390mm(W) × 182mm(H) ×230mm(D)

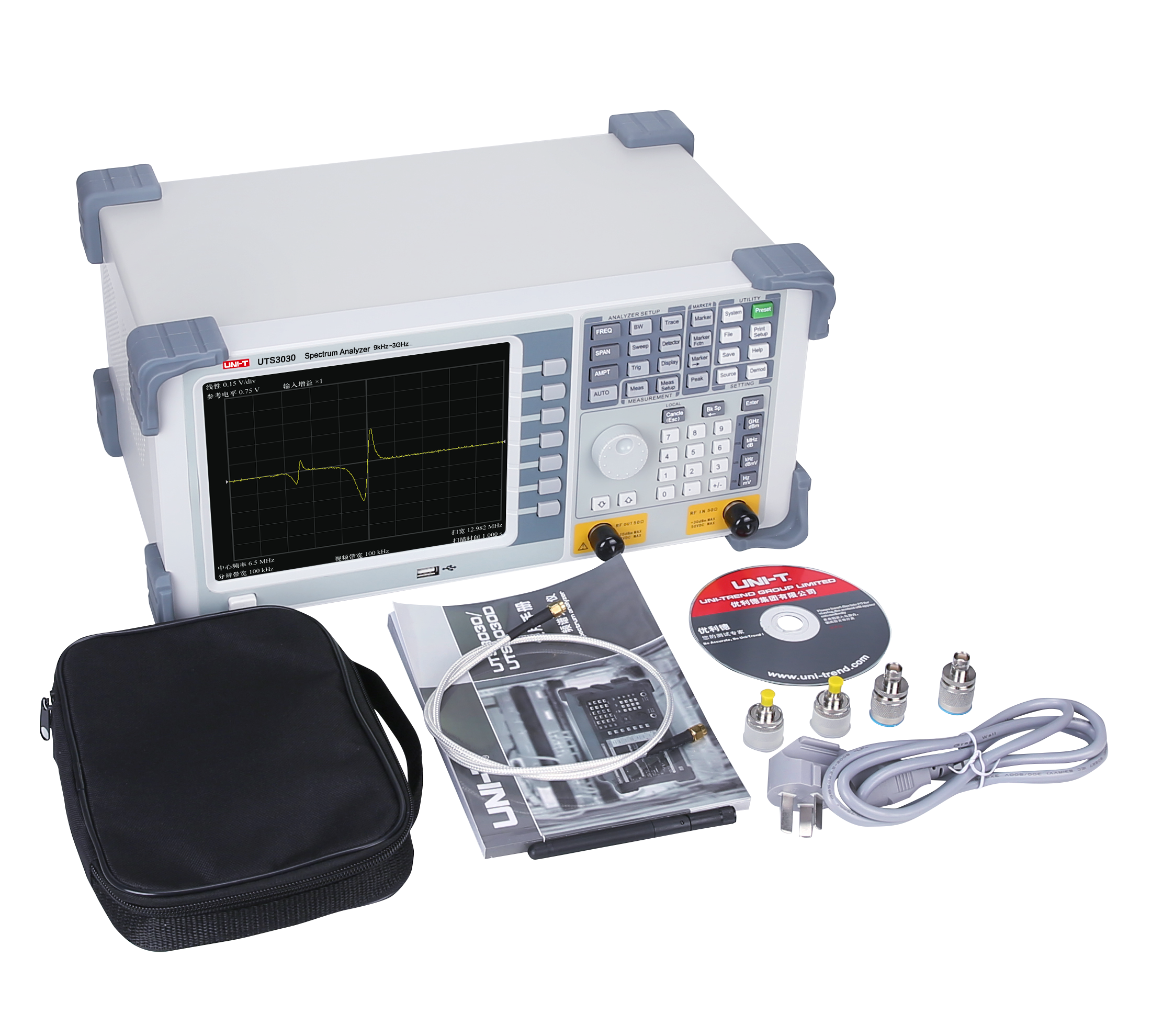

Standard Accessories	Power Cord, N/SMA Convertor, N/BNC Convertor, RF Cable, Antenna
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	1pcs
Standard Carton Measurement	480mm(L) × 380mm(W) ×285mm(H)
Standard Carton Gross Weight	9.3kg
Optional Accessories*
USB-GPIB
