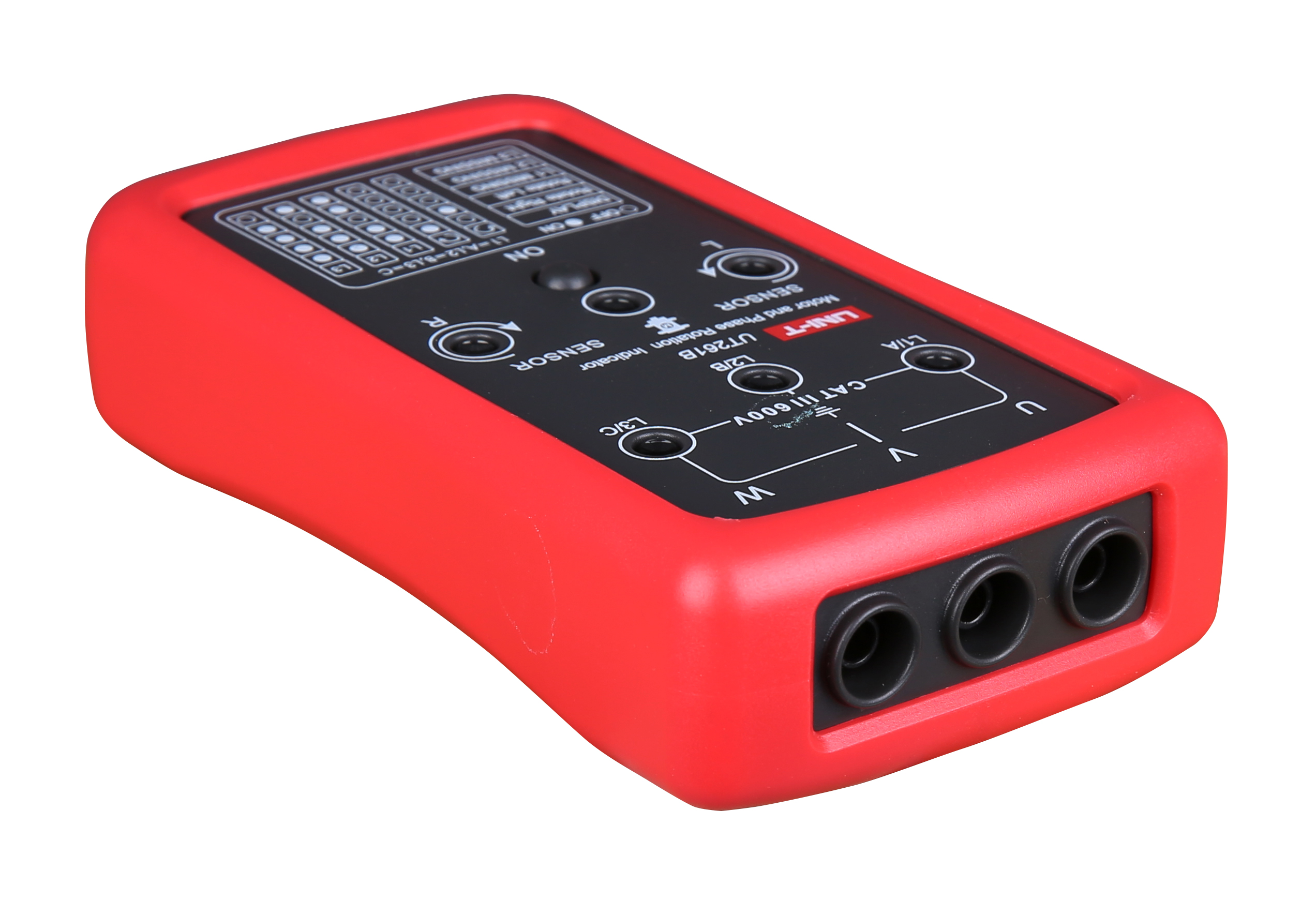

UT261B is used for determining 3-phase power phase sequence, missing phase indication, and motor phase rotation. UT261B can measure AC voltage of 90~600V. It can operate in frequency range from 15~400Hz, and is a durable device that can withstand impact from 2 meters’ height. Test leads with protective tubing are included in optional accessories.
Features
1. Phase sequence indication
2. Missing phase indication
3. Motor rotation indication
|
Functions |
Range |
Accuracy |
|
Model |
|
UT261B |
|
AC Voltage (V) |
90V～600V |
√ |
|
Frequency (Hz) |
15Hz～400Hz |
√ |
|
Working Current (A) |
<3mA |
√ |
|
Features |
||
|
Phase Sequence Indication |
|
LED |
|
Missing Phase Indication |
|
LED |
|
Motor Rotation Indication |
|
LED |
|
General Characteristics |
||
|
Power |
9V Battery（6F22） |
|
|
Product Color |
Red and Grey |
|
|
Product Weight |
180g |
|
|
Product Size |
70mm X 75mm X 30mm |
|
|
Standard Accessories |
Battery, Carrying box, Carrying Straps |
|
|
Standard Individual Packing |
Gift box, User manual |
|
|
Standard Quantity Per Carton |
40pcs |
|
|
Standard Carton Measurement |
800X300X400mm |
|
|
Standard Carton Gross Weight |
9kg |
|
