Clamp meter

UT281E

Main features

1. 2m drop proof, ETL/Intertek certified 3rd edition CE

2. Coil diameter: 0.75cm, bending length: 47.5cm

3. 0~6MΩ resistance and 20~40kHz frequency measurements

4. Large LCD display for clear reading

5. True RMS

6. Long press INRUSH key for 2~3s to measure inrush current

7. Data hold, backlight, auto power off

Specifications	UT281E
AC current range (A)	30A/300A/3000A, ±3%+5
AC current resolution (A)	0.01A/0.1A/1A
AC current frequency response (Hz)	45.00Hz～500.00Hz
AC voltage range (V)	0.000V~600.0V, ±1.2%+3
Inrush current (A)	80ms, Min 3.0A, display range: 0.5A~3000A
Risistance measurement (Ohm)	0.000~6.000MΩ
Frequency measurement (Hz)	20~40kHz
Auto/manual range	Manual
Clamp type	Flex jaw with clamp lock mechanism
Sampling rate	3 times/s
Auto power off	After 10-minute inactivity
Max display	display "OL" after 3000 counts in Current test mode display "OL" after 6000 counts in other modes
Key functions	Power on/off, data hold, backlight, inrush current selection, current range, frequency range
Features
Auto/manual range	Manual
Continuity buzzer	√
Low voltage display	Lower than 3.8V
Data hold	√
Function selection (SELECT)	√
True RMS	√
Auto backlight	√
Working temperature	0℃～50℃
2m drop proof	√
General Characteristics

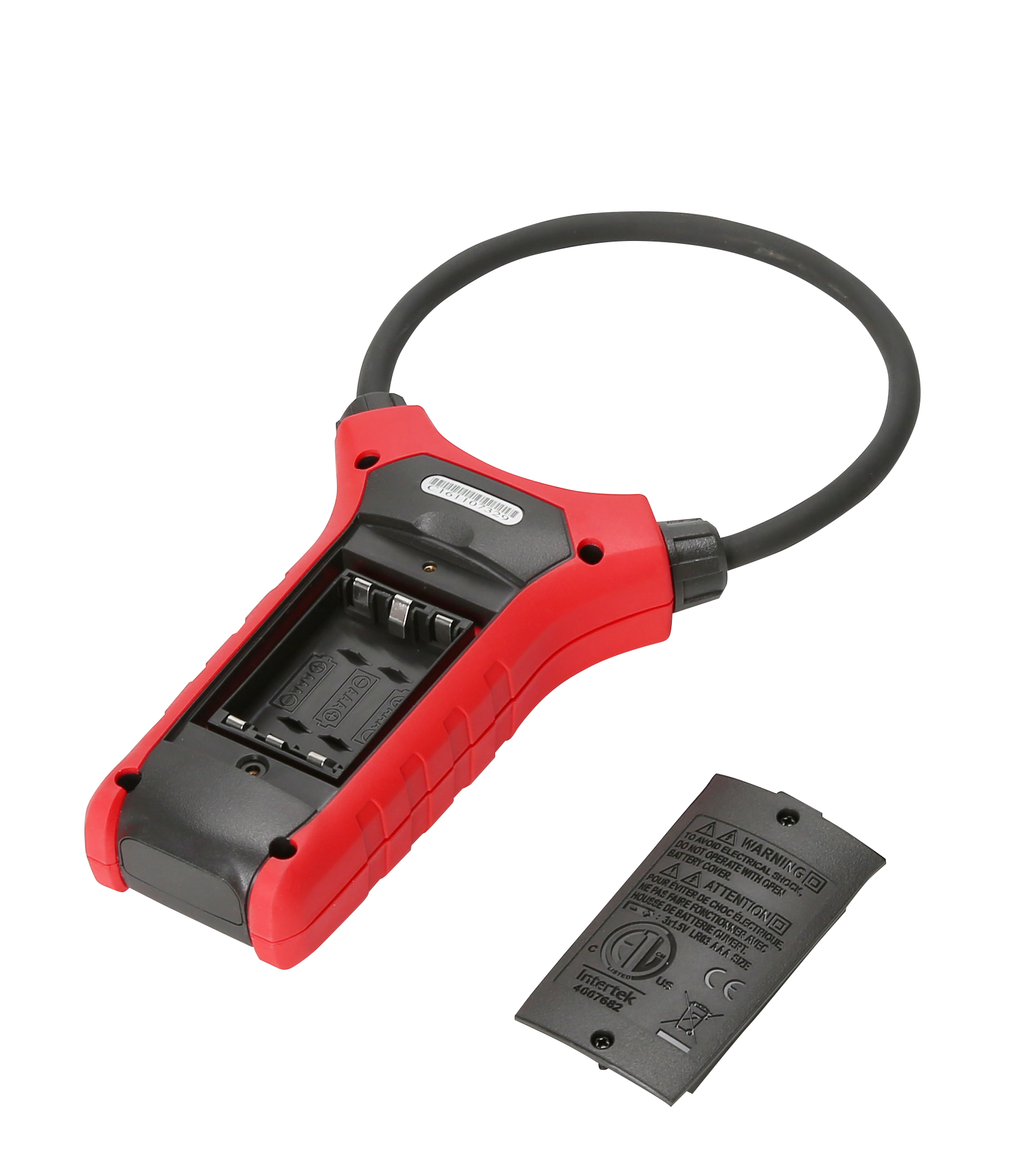

Power	1.5V AAA battery ×3
LCD size	32×34mm (1.8 inch)
Product color	Red and grey
Product net weight	250g
Product size	325×180×30mm

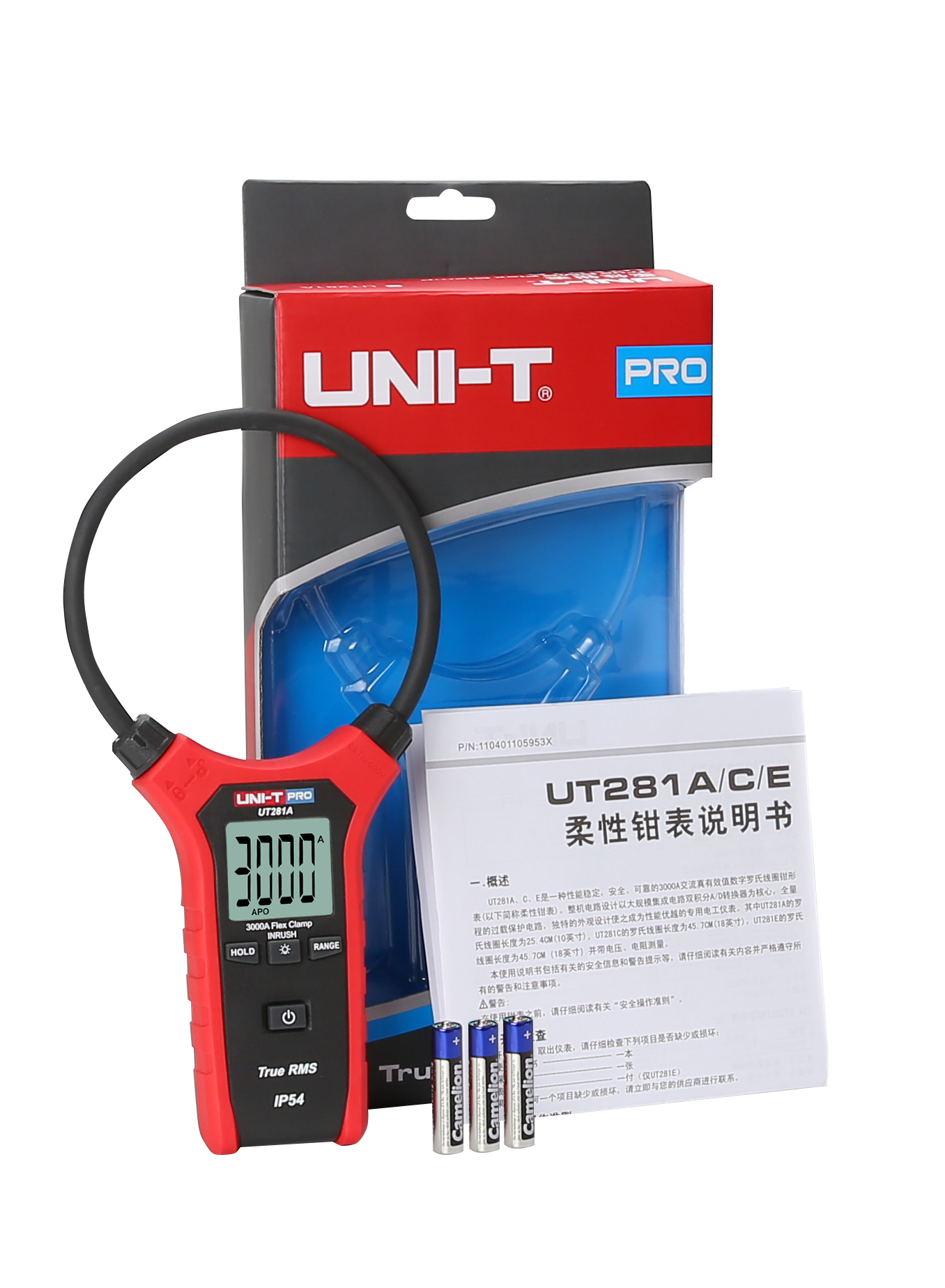

Standard accessories	Batteries, BNC adapter socket
Standard individual packing	English manual, blister
Standard quantity per carton	10pcs
Standard carton measurement	520mm×405mm×225mm
Standard carton gross weight	7.2kg
