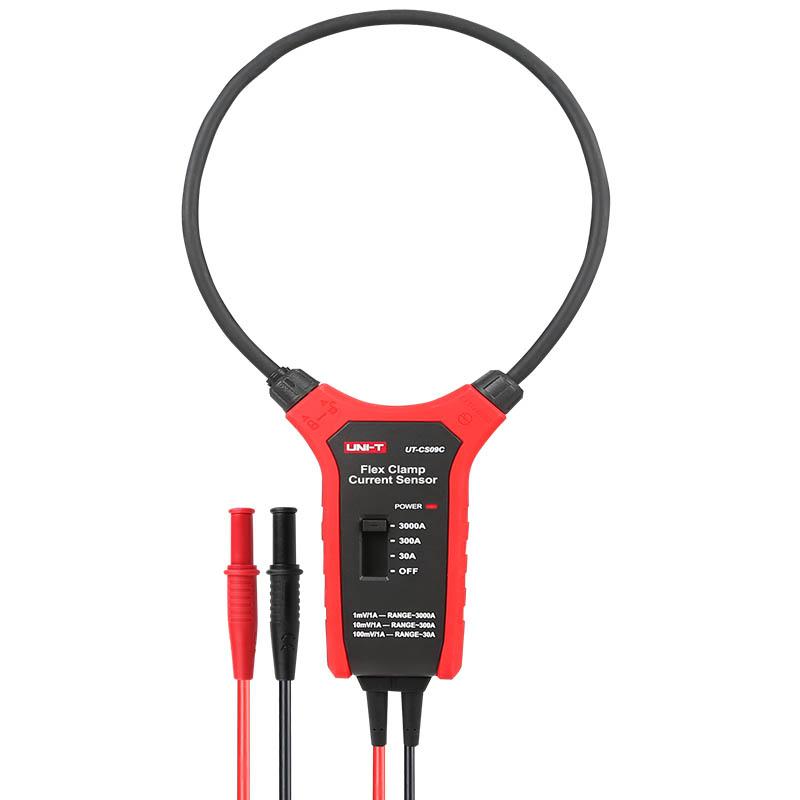

Main Features
1. Flex clamp can measure from 1.5A to 3000A current
2. 2m drop proof
3. Test leads can support up to 15kg load
4. Safety rating: CAT IV 600V
5. Certification: CE&ETL
Specifications
Range
Accuracy
Model
UT-CS09A
UT-CS09C
AC current (resolution)
30A (0.1A)
±(3%+5)
300A (1A)
3000A (10A)
Frequency response
45Hz~500Hz (sine wave)
√
Features
Flex coil length
254mm (10 inches)
457mm (18 inches)
Function selection (SELECT)
Manual
Drop test
1m
Operating temperature
0°C~50°C
Storage temperature
-20°C~60°C
Storage humidity
≤80%RH
Low battery indication
About 3.3V
Power
1.5V AAA battery×3
