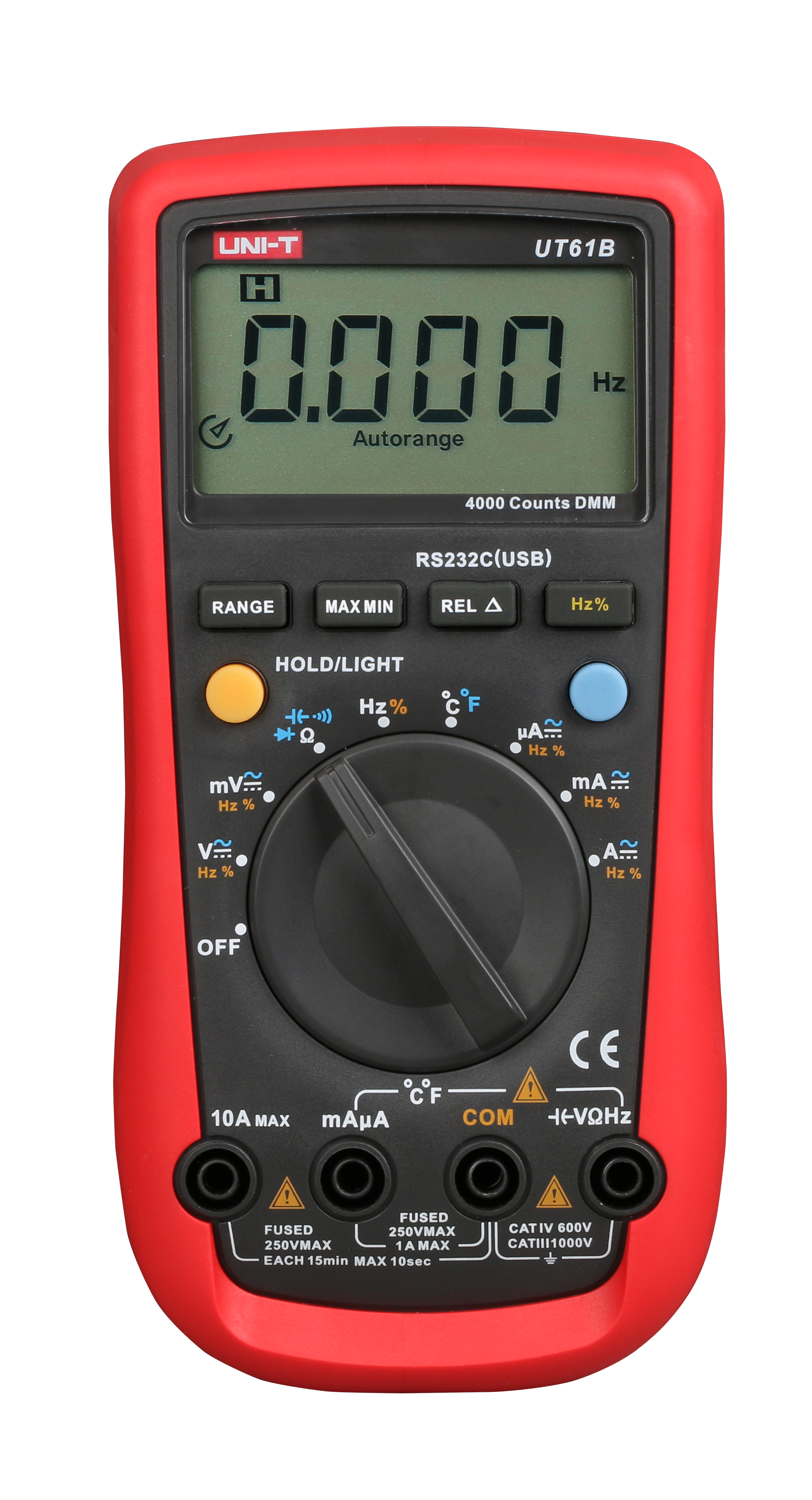

Digital multimeter

UT61 A/B

Product description: Digital Multimeters
INQUIRY

Features

1. MAX/MIN/REL modes

2. Auto power off

3. LCD backlight

4. Analog bar graph

5. EF (Electric Field) detection

6. Transistor measurement

Specifications	Range	Best Accuracy
Model		UT61A	UT61B
DC Voltage (V)	400mV/4V/40V/400V/1000V	±(0.5%+1)
DC Voltage (V)	40mV/400mV/4V/40V/400V/1000V		±(0.5%+1)
AC Voltage (V)	400mV/4V/40V/400V/750V	±(1%+3)
AC Voltage (V)	40mV/400mV/4V/40V/400V/750V		±(1%+3)
DC Current (A)	400μA/4000μA/40mA/400mA/4A/10A	±(1%+2)	±(1%+2)
AC Current (A)	400μA/4000μA/40mA/400mA/4A/10A	±(1.2%+5)	±(1.2%+5)
Resistance (Ω)	400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ	±(1%+2)	±(1%+2)
Capacitance (F)	40nF/400nF/4μF/40μF/400μF/4000μF	±(3%+5)	±(3%+5)
Frequency (Hz)	10Hz-10MHz	±(0.1%+4)	±(0.1%+4)
Temperature (°C)	-40 °C ～ 1000°C		±(1.2%+3)
Temperature (°F)	-40°F～1832°F		±(1.2%+4)
Features
Display Count		4000	4000
Auto Range		√	√
Manual Range		√	√
Bandwidth (Hz)	45Hz ～400Hz	√	√
Duty Cycle	0.1% ～ 99.9%	√	√
Diode		√	√
Transistor		√
NCV Function		√
Auto Power Off	Around 15 Minutes		√
Continuity Buzzer		√	√
Low Battery Indication	≤7.5V	√	√
Data Hold		√	√
Relative Mode		√	√
MAX/MIN		√	√
RS-232			√
LCD Backlight		√	√
Analog Bar Graph		41	41
Input Protection		√	√
Input Impedance for DCV	Around 10MΩ	√	√
General Characteristics
Power	9V Battery (6F22)
LCD Size	65mm X 43mm
Product Color	Red and grey
Product Net Weight	370g
Product Size	180mm X 87mm X 47mm

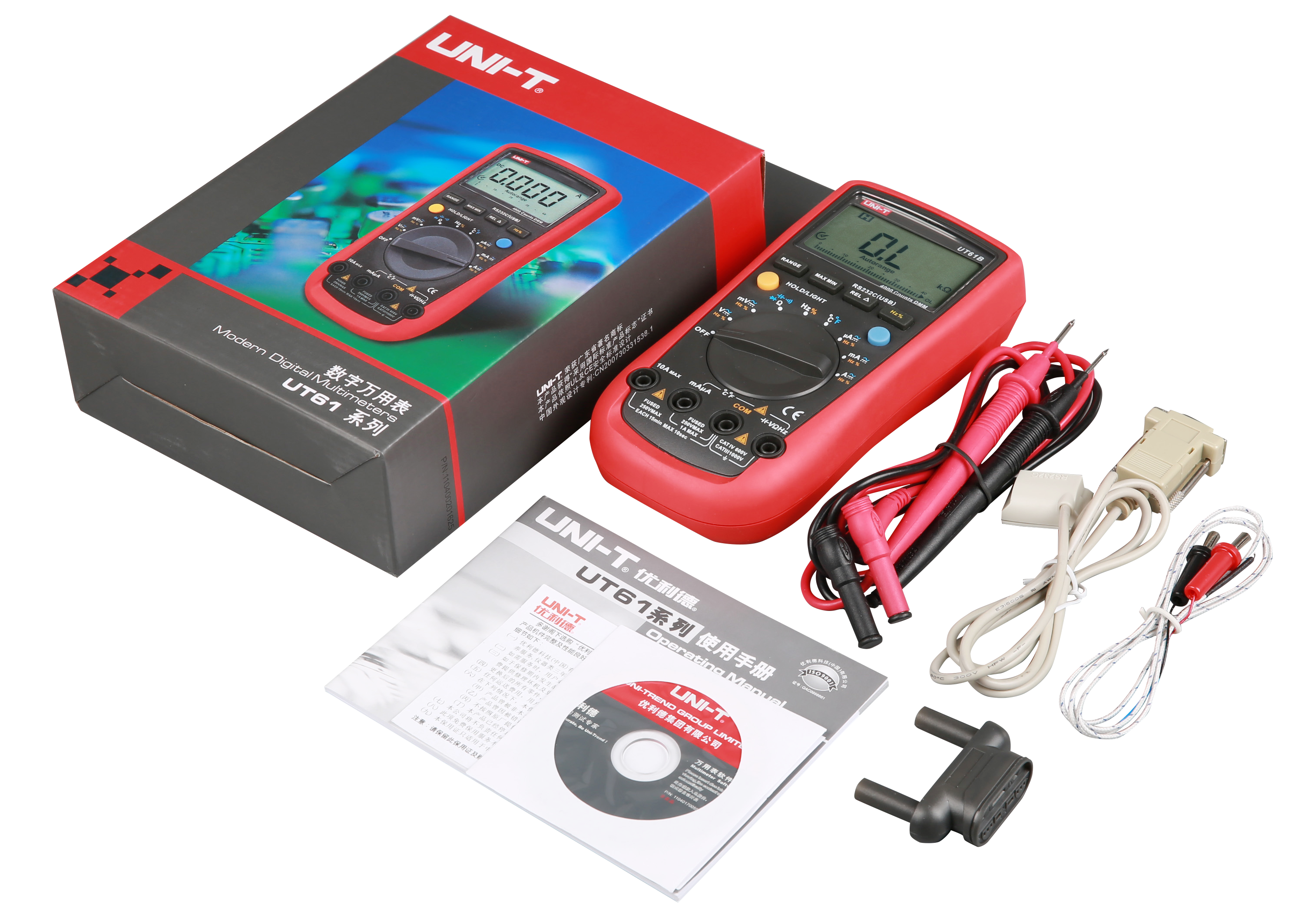

Standard Accessories	UT61A-Battery, Test Lead, Multi-Purpose Socket
Standard Accessories	UT61B-Battery, Test Lead, Multi-Purpose Socket, RS-232 Interface Cable, Software, Point Contact Temperature Probe
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	22pcs
Standard Carton Measurement	455mm × 335mm × 375mm
Standard Carton Gross Weight	14.5kg
Optional Accessories	UT61B-USB Interface Cable
