Main features
1. Clear LCD display
2. Equipped with comfortable protective cover, test lead hanging slot
3. 2m drop proof with precision protection
4. Auto power off
5. Auto backlight off
6. Loud buzzer
7. Ergonomically designed rotary switch
Specifications
Range
Accuracy
UT33A+

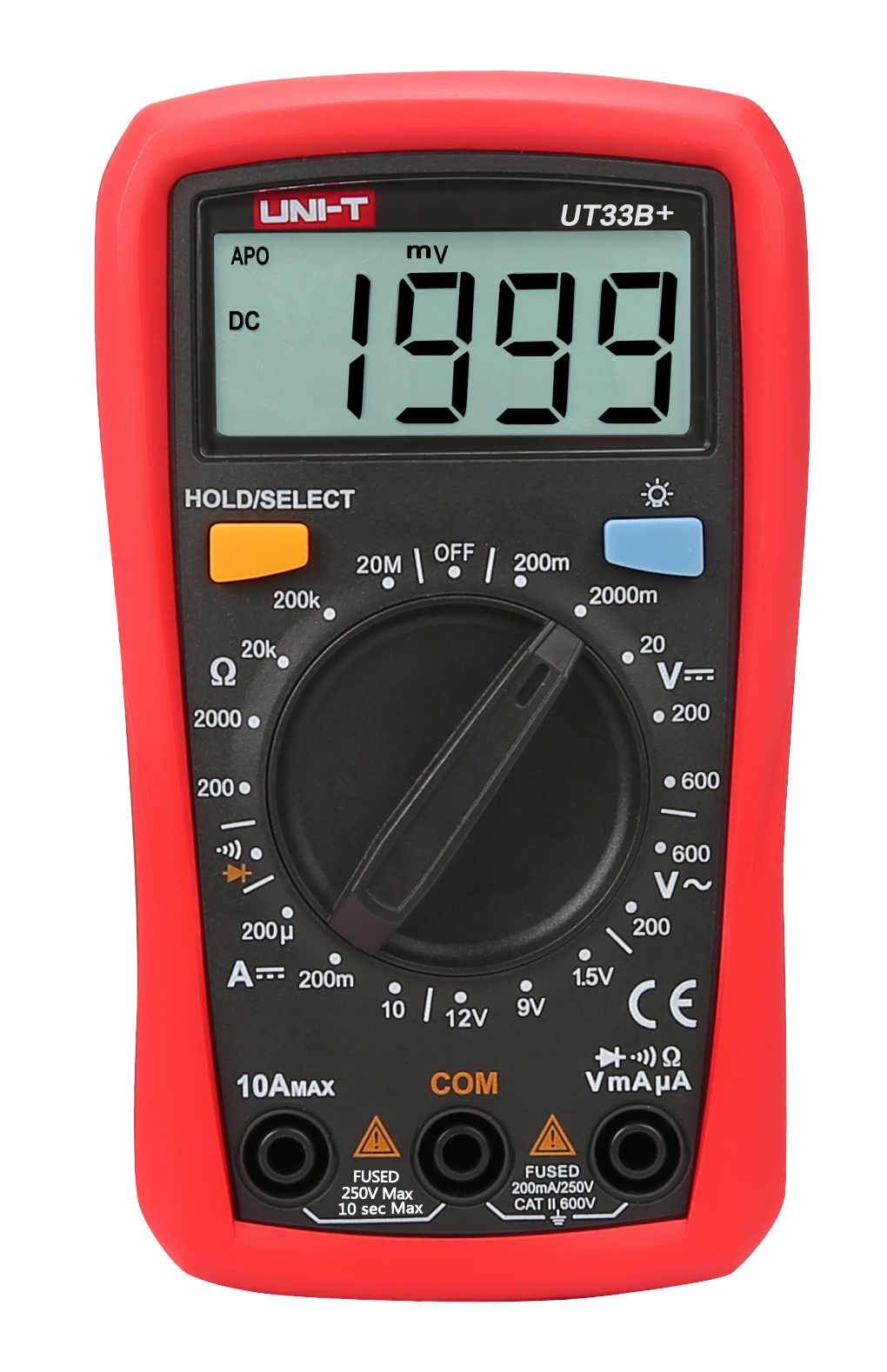

UT33B+

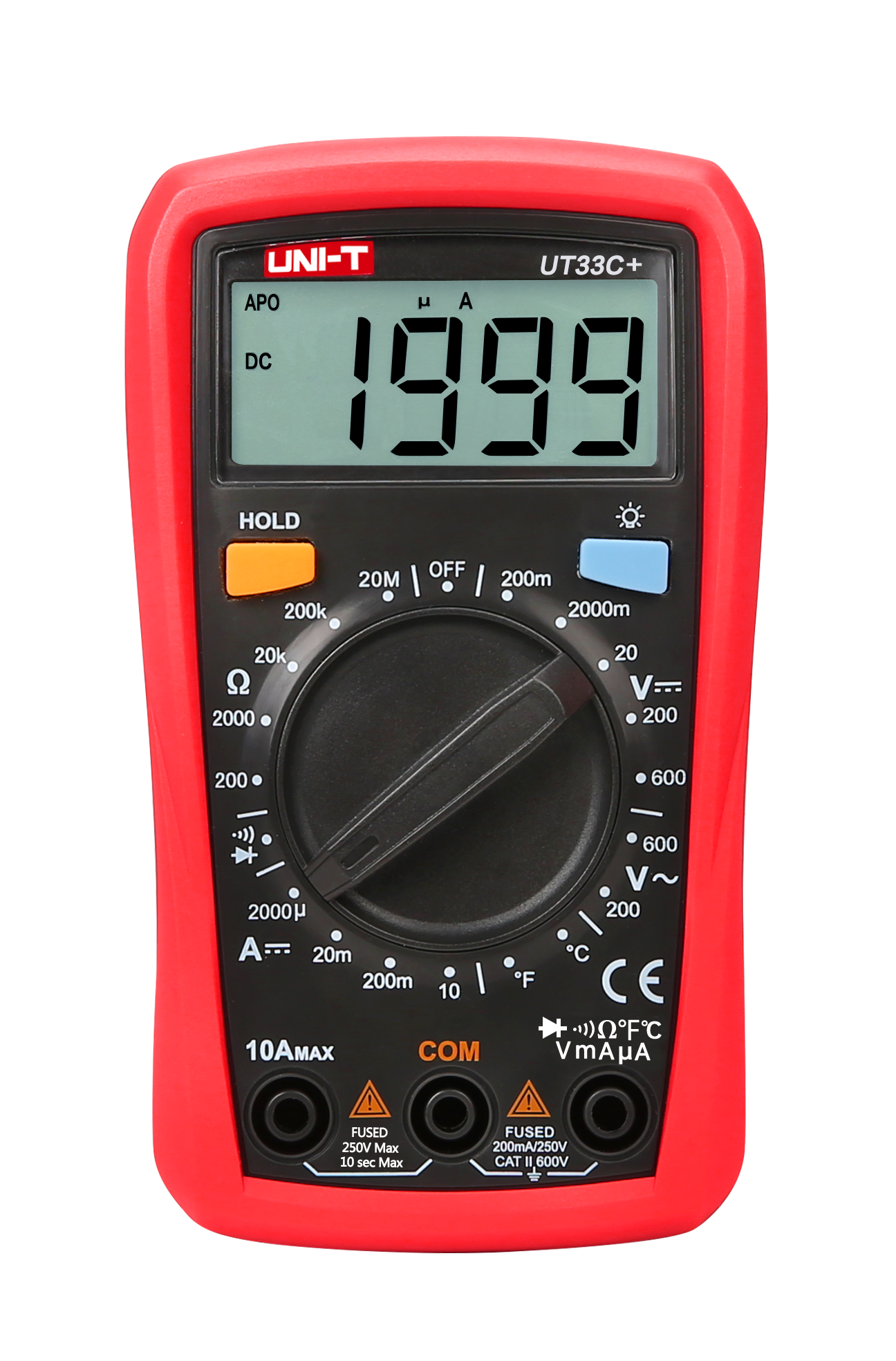

UT33C+

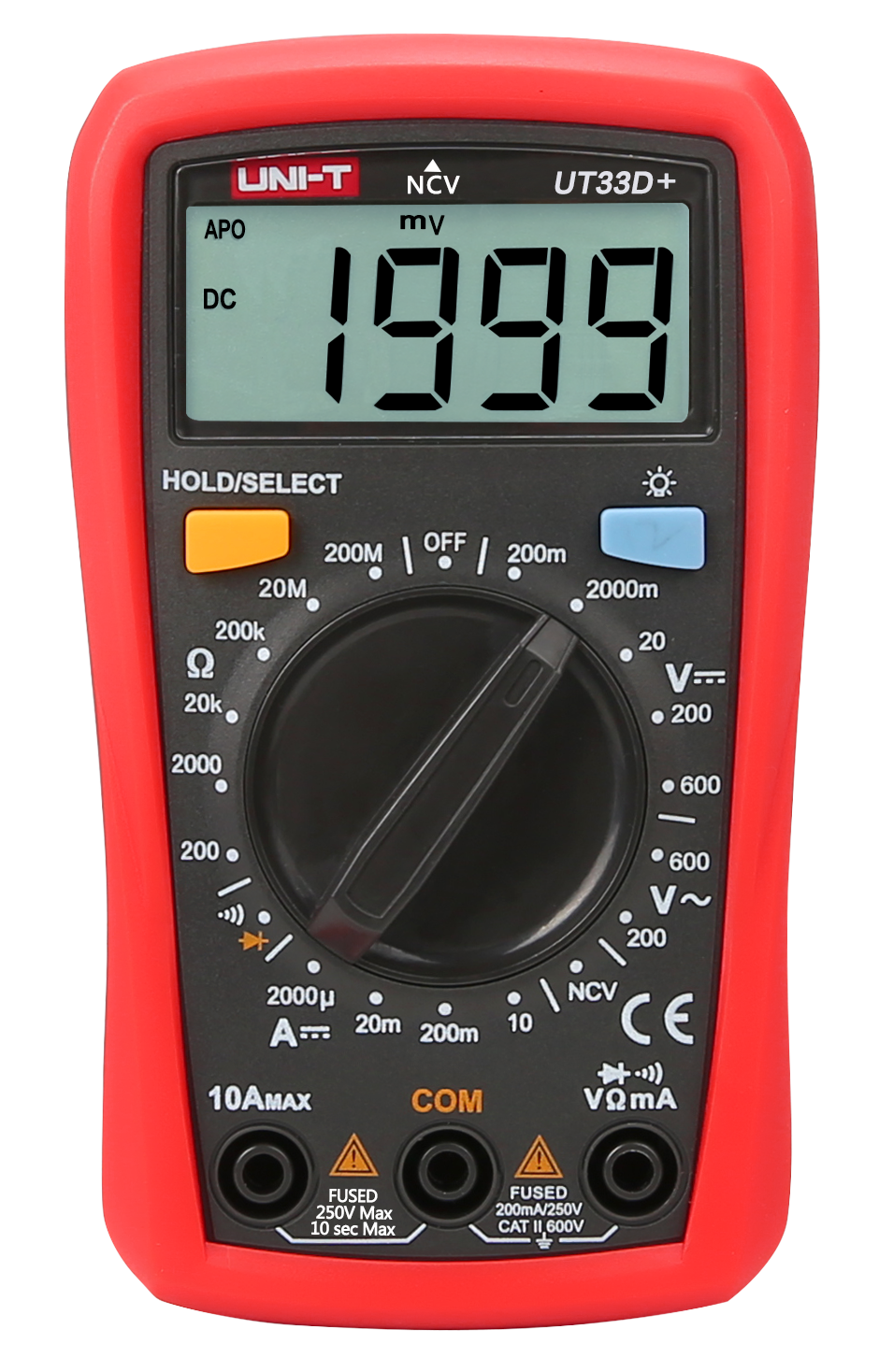

UT33D+
DC voltage (V)
200.0mV～600V
±(0.5%＋3)
±(0.5%＋3)
±(0.5%＋3)
±(0.5%＋3)
AC voltage (V)
200.0mV～600V
±(0.7%+3)
200.0V～600V
±(1.2%+3)
±(1.2%+3)
±(1.2%+3)
DC current (A)
200.0μA～10.00A
±(1.0%+3)
±(1.0%+3)
±(1.0%+3)
±(1.0%+3)
AC current (A)
200.0μA～10.00A
±(1.2%+3)
NA
NA
NA
Resistance (Ω)
200.0Ω～200.0MΩ
±(1.0％+2)
±(1.0％+2)
200.0Ω～20.00MΩ
±(0.8%+2)
±(0.8%+2)
Capacitance (F)
2.000nF～2.000mF
±(3%+5)
NA
NA
NA
Features
Max display
1999
1999
1999
1999
Auto power off
√
√
√
√
Auto backlight off
√
√
√
√
Diode test
√
√
√
√
Continuity buzzer
√
√
√
√
Drop test
2m
2m
2m
2m
Test probe holder
√
√
√
√
Safety rating
CAT Ⅱ 600V
CAT Ⅱ 600V
CAT Ⅱ 600V
CAT Ⅱ 600V
Range selection
Auto
Manual
Manual
Manual
Battery test
1.5V/9V/12V
Temperature (°C/°F)
√
NCV
√
General Characteristics
Power
AAA battery (zn-mn) 1.5V×2
LCD size
66mm*51mm
Product color
Red and grey
Product net weight
473g
Product size
131mm×95mm×58mm
Standard accessories
Test lead, manual, K-type temperature probe (UT33C+ only)
Standard individual packing
Gift box, manual
Standard quantity per carton
60pcs
Standard carton measurement
640mm×310mm×350mm
