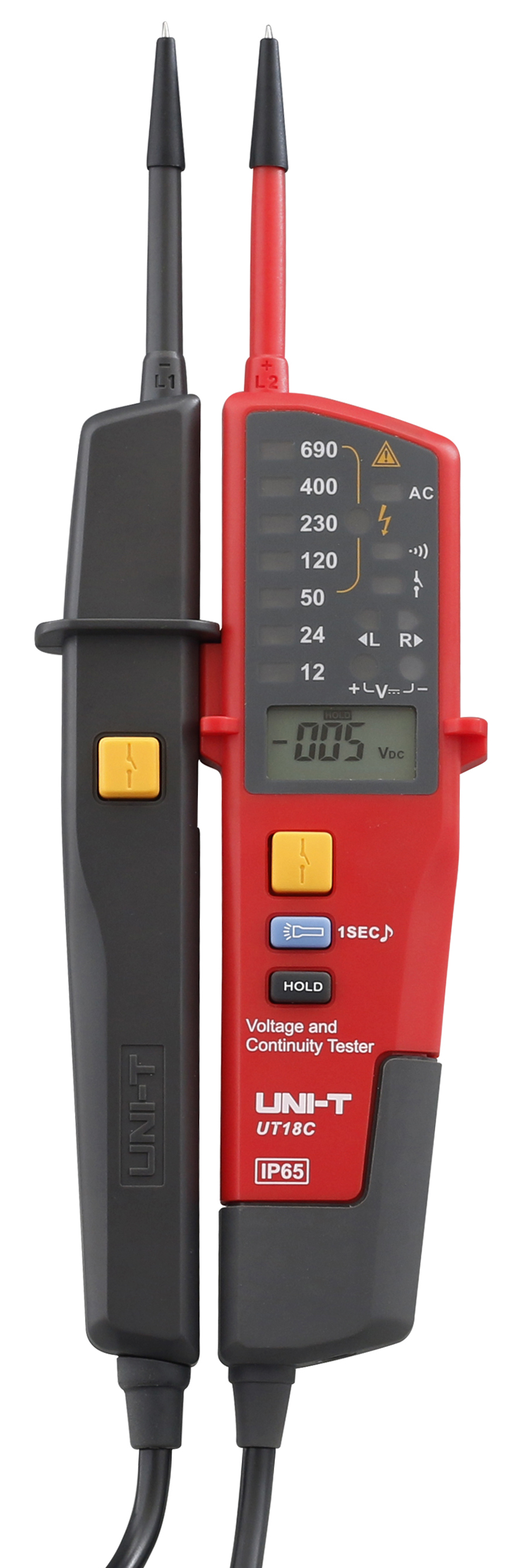

UT18C voltage and continuity tester is designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This device is categorized as CAT IV 600V and meets IP65 standard. Application fields for UT18C include smelting, electronics, manufacturing, and electrical. It is a perfect tool for electricians, to quickly measure voltage levels in any harsh environments. It should NOT be used in 110V electrical systems.
Features
1. Auto power off, the conductor to be measured is greater than 12V
2. Phase rotation test
3. Continuity test with buzzer and LED indication
4. RCD: Detecting leakage protective switch
5. Low battery Indication and over voltage prompt
6. LED prompt
7. Flashlight
8. Test live voltage without batteries
9. Buzzer and silent mode
10. Auto standby mode
11. Auto range/Inspection
12. Voltage, frequency display
13. Data hold
14. Polarity indication
Specifications | Range | Best Accuracy | |
Model |
|

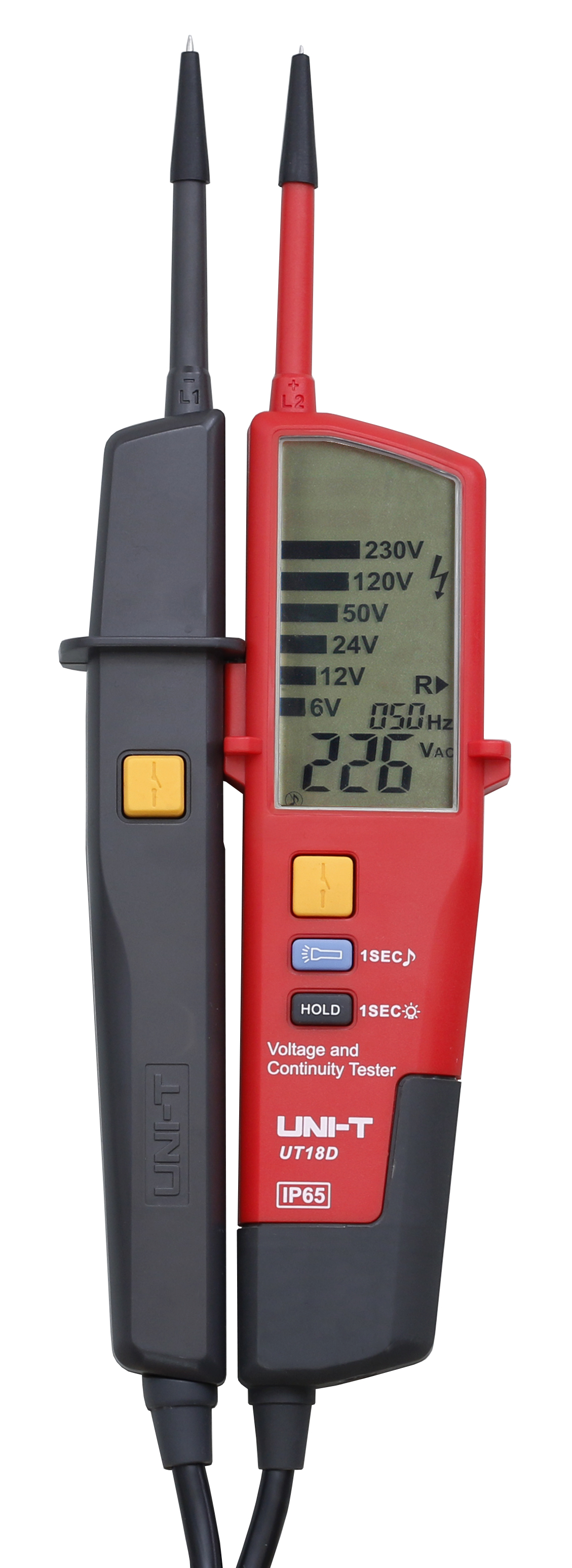

UT18C | UT18D |
LED AC/DC Voltage Indication (V) | 12V | 8V±2V | 8V±2V |
24V | 18V±2V | 18V±2V | |
50V | 38V±4V | 38V±4V | |
120V | 92V±6V | 92V±6V | |
230V | 174V±8V | 174V±8V | |
400V | 320V±10V | 320V±10V | |
690V | 550V±15V | 550V±15V | |
Phase Rotation Test | Operating Voltage: 100V~690V | √ | √ |
Frequency: 50Hz~ 60Hz | |||
Single Lead (L2) Voltage Detection | Operating Voltage: 100V~690V | √ | √ |
Frequency: 50Hz~400Hz | |||
Continuity Test | Resistance: 0~100kΩ | √ | √ |
Beeper and LED Light Indicator | |||
RCD Test | Operating Voltage: 230V (50Hz~400Hz) | √ | √ |
Polarity Detection | Positive & Negative | √ | √ |
Self-inspection | All LED or LCD Indicator | √ | √ |
No Power Test | Operating Voltage: 50VAC/120VDC~690VDC/AC | √ | |
Features | |||
IP65 | √ | √ | |
Auto Range | All Range | √ | √ |
Exceed Voltage | Voltage Range: 713V~788V | √ | √ |
Auto Standby | standby current <10uA | √ | √ |
Silent Mode | All Range | √ | √ |
Work Light | All Range | √ | √ |
Low Battery Indication | Voltage Range: 2.2V~2.4V | √ | √ |
LCD Backlight | All Range | √ | |
LCD Display (Voltage+Frequency) | 6V~690V (40Hz~400Hz) | ±(1.5%+5) | ±(1.5%+5) |
General Characteristics | |||
Power | 1.5V Batteries (R03) × 2 | ||
LCD Size | UT18C-31×20mm; UT18D-73.5×35.5mm | ||
Product Color | Red and Grey | ||
Product Net Weight | 280g | ||
Product Size | 272mm×85mm×31mm | ||
Standard Accessories | Batteries | ||
Standard Individual Packing | Blister, English Manual | ||
Standard Quantity Per Carton | 30pcs | ||
Standard Carton Measurement | 440mm × 295mm × 455mm (0.079 CBM Per Standard Carton) | ||
Standard Carton Gross Weight | 17.5kg |
