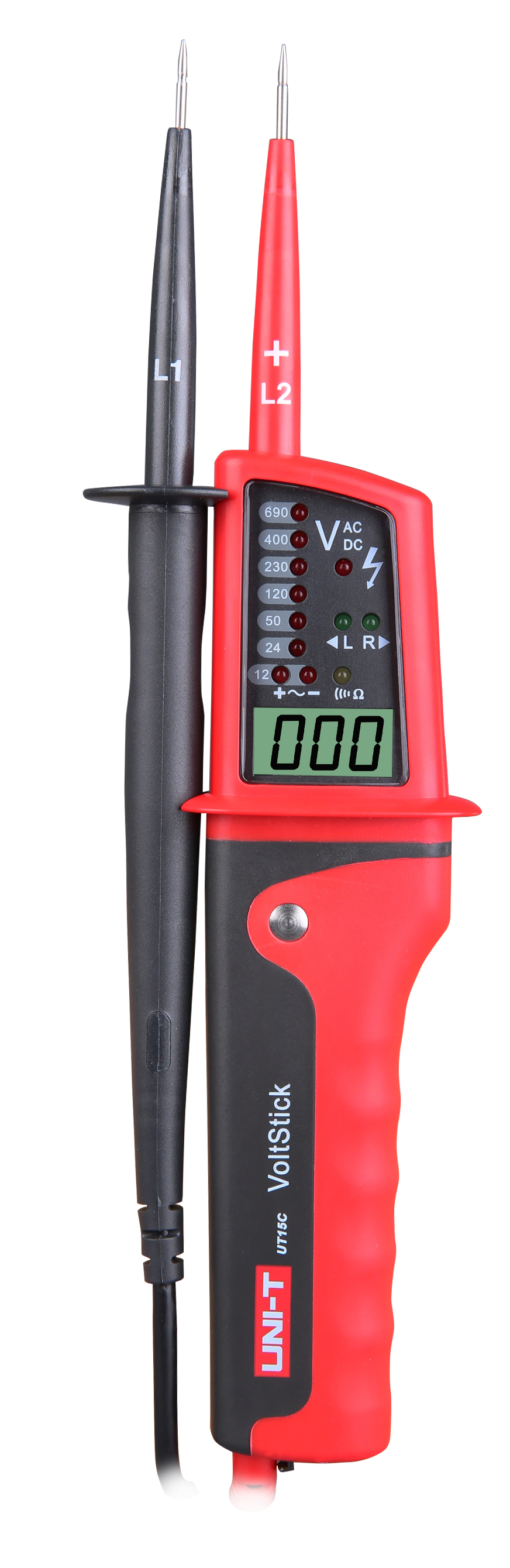

UT15 series has the functions: AC/DC voltage measurement (including three-phase AC), phase position indication of three-phase AC, continuity test and single probe measurement (judge nutral wire or live wire). It is applicable to smelting, electron, manufacture, fossil oil, national defense, electricity and chemical engineering and so on. It can also solve the complex problems of electron, factory automation, electric power distribution and electromechanical device.
Specifications
Range
Best Accuracy
Model
UT15B
UT15C
LED AC/DC Voltage Indication (V)
12V
0～10V
0～10V
24V
17V±2V
17V±2V
50V
35V±6V
35V±5V
120V
80V±20V
80V±15V
230V
165V±20V
165V±20V
400V
300V±30V
300V±30V
690V
510V±40V
510V±40V
Phase Rotation Test
Operating Voltage: 0V~690V
√
√
Frequency: 50Hz~ 60Hz
Single Lead (L2) Voltage Detection
Operating Voltage: 100V~690V
√
√
Frequency: 50Hz~ 400Hz
Continuity Test
Resistance: 0~400kΩ
√
√
Beeper and LED light Indicator
Polarity Detection
Positive & Negative
√
√
Features
Water-Proof (IP65)
√
√
Auto Range
√
√
Work Light
√
√
Low Battery Indication
Short circuit two leads, LED and beeper off when the bettery is low
√
√
LCD AC/DC Voltage Display
24V~690V
±(3%+8)
General Characteristics
Power
1.5V battery (R03) X 2
LCD Size
UT15C-23 X 12mm
Product Color
Red and grey
Product Net Weight
210g
Product Size
275mm X 51mm X 30mm
Standard Accessories
Batteries
Standard Individual Packing
Blister, English Manual
Standard Quantity Per Carton
30pcs
Standard Carton Measurement
440mm×395mm×455mm (0.079 CBM Per Standard Carton)
Standard Carton Gross Weight
11.2kg
