Circuit detection

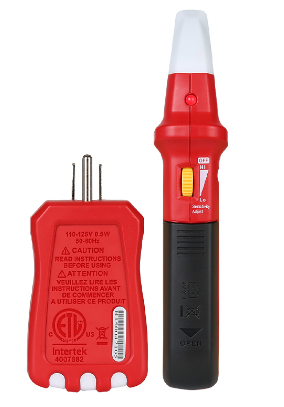

UT25 A/B

Features

1. Quick and ac curate detection of circuit breaker location

2. GFCI socket test

3. Sensitivity control suitable for different signal strength

4. Audio and visual indication

5. Receiver and transmitter 2-in-1 package

Specifications	Range	Best Accuracy
Model		UT25A	UT25B
Operating Voltage	90-120V AC	√	√
Working Frequency	47-63Hz	√	√
GFCI Test	About 6mA	√	√
	Open Ground	√	√
	Open Neutral	√	√
	Open Hot	√	√
Indications	Hot/NEU Reverse	√	√
	Hot /GND Reverse	√	√
	GFCI Testing In Progrss	√	√
	Hot On NEU With Hot Open	√	√
	Correct	√	√
Features
Adjustable Sensitivity		√	√
Beeper		√	√
LED Flashlight		√	√
NCV Test			√
Low Battery Indication		√	√
General Characteristics
Power	9V Battery (6F22)
Product Color	Red and Grey
Product Net Weight	Transmitter-110g
Product Net Weight	Receiver -110g
Product Size	Transmitter-103mm X 56mm X 30mm
Product Size	Receiver-192mm X 54mm X 28mm
Standard Accessories	Batteries
Standard Individual Packing	Blister, English Manual
Standard Quantity Per Carton	40pcs
Standard Carton Measurement	575mm X405mm X380mm (0.088CBM Per Standard Carton)
Standard Carton Gross Weight	15.8kg
