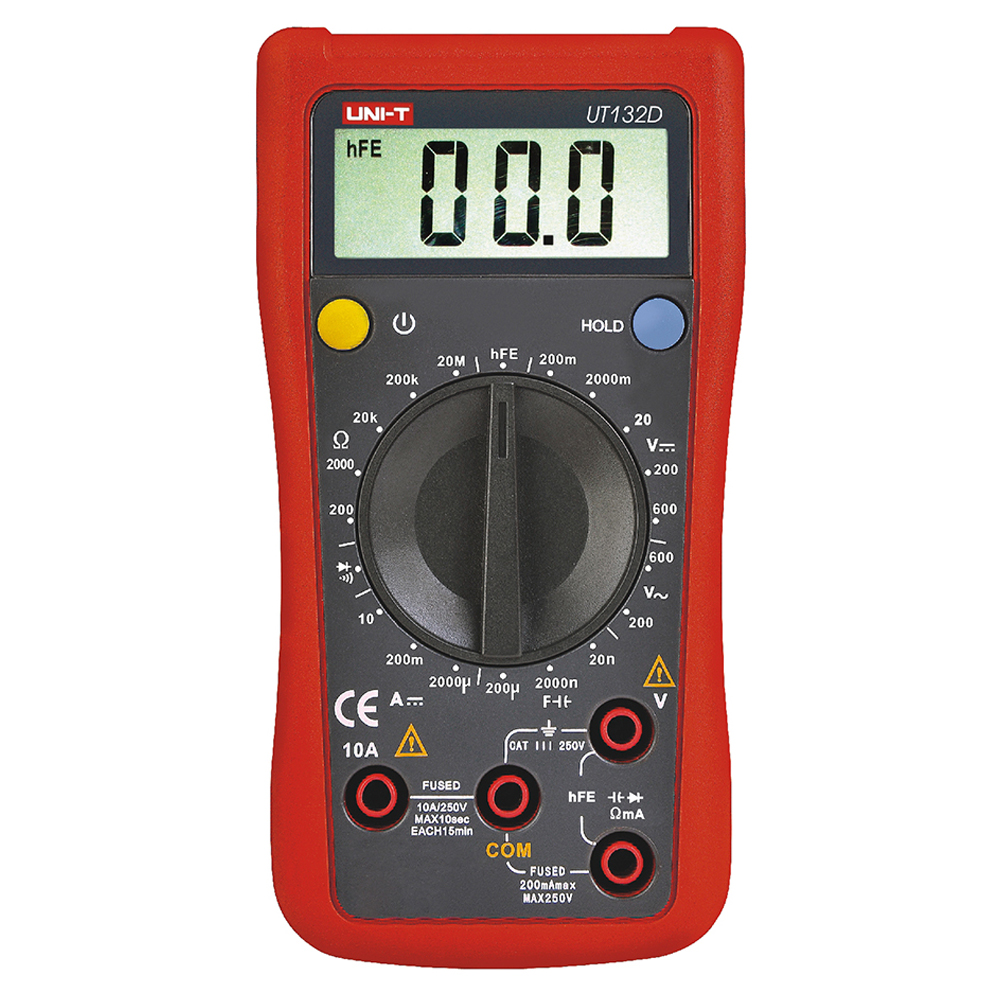

UT132C is a palm size 2000-count digital multimeter, which measures AC/DC voltage with ±(0.5%+2) accuracy, DC current and more.
| Specifications | Range | Best Accuracy | |
| Model | UT132C | UT132D | |
| DC Voltage (V) | EU: 200mV/ 2000mV/ 20V/ 200V/ 600V | ±(0.5%+2) | |
| ROW: 200mV/ 2000mV/ 20V/ 200V/ 250V | |||
| AC Voltage (V) | EU: 200V/600V | ±(1.2%+3) | |
| ROW: 200V/250V | |||
| DC Current (A) | 2000μA/ 20mA/ 200mA/10A | ±(1%+2) | |
| 2000μA/ 200mA/10A | ±(1%+2) | ||
| Resistance (Ω) |
200Ω/ 2000Ω/ 20kΩ/ 200k Ω/ 2000kΩ/ 20MΩ |
±(0.8%+5) | |
| 200Ω/ 2000Ω/ 20kΩ/ 200kΩ/ 20MΩ | ±(0.8%+5) | ||
| Capacitance (F) | 20nF/ 2000nF/ 200μF | ±(4%+3) | |
| Temperature (°C) | -40 °C ～ 1000°C | ±(1.0%+3) | |
| Features | |||
| Display Count | 2000 | 2000 | |
| Manual Range | √ | √ | |
| Diode | √ | √ | |
| Transistor | √ | √ | |
| Continuity Buzzer | √ | √ | |
| Low Battery Indication | √ | √ | |
| Data Hold | √ | √ | |
| Input Impedance for DCV | Around 10MΩ | √ | √ |
| General Characteristic | |||
| Power | 9V Battery (6F22) | ||
| LCD Size | 49mm x 18mm | ||
| Product Color | Red and grey | ||
| Product Net Weight | 200g | ||
| Product Size | 72mm × 137mm × 35mm | ||
| Standard Accessories | UT132C-Battery, test lead, multi-purpose socket, point contact temperature probe | ||
| UT132D-Battery, test lead, multi-purpose socket | |||
| Standard Individual Packing | Gift box, English manual | ||
| Standard Quantity Per Carton | 66pcs | ||
| Standard Carton Measurement | 595mm × 360mm × 420mm (0.09CBM per standard carton) | ||
| Standard Carton Gross Weight | 25.7kg | ||
