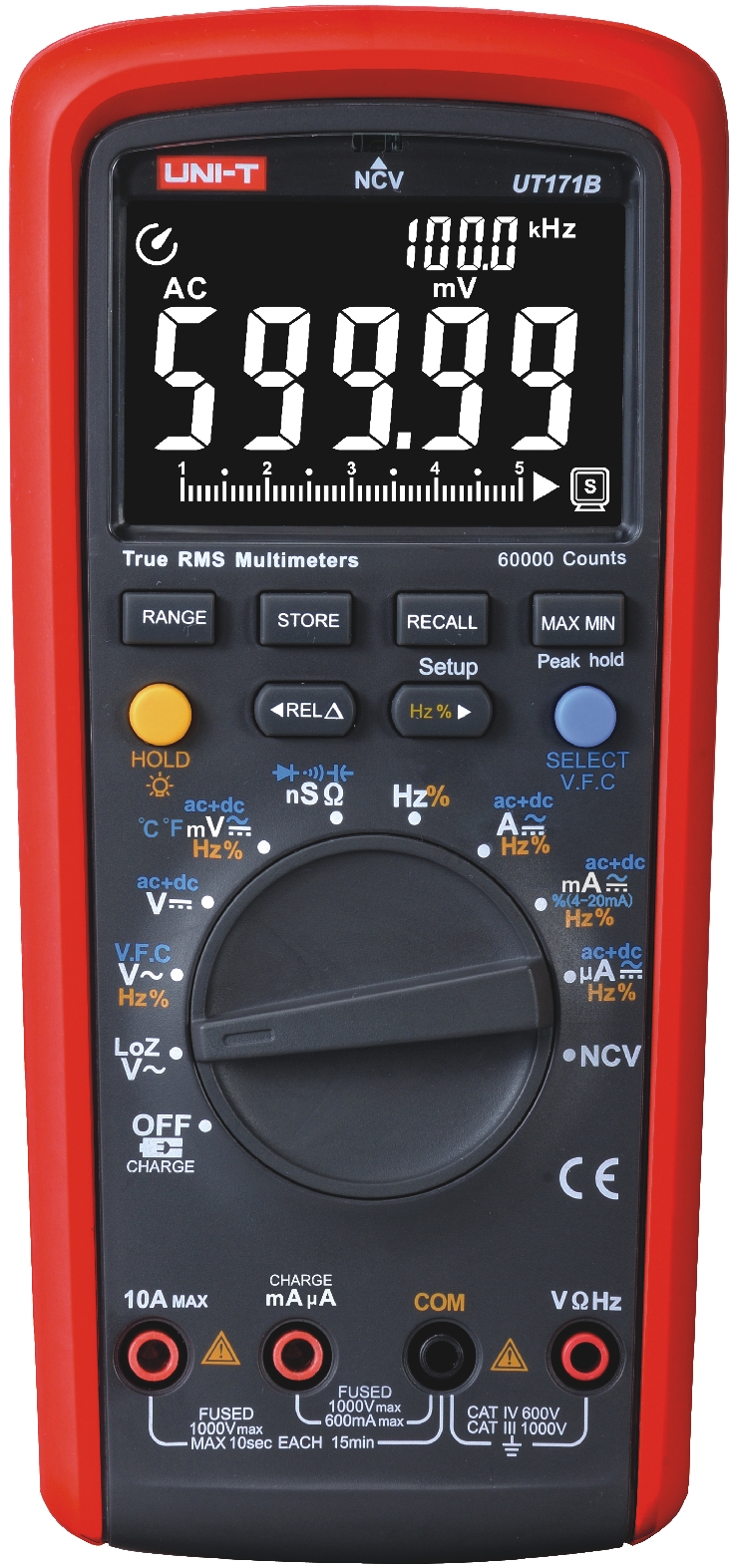

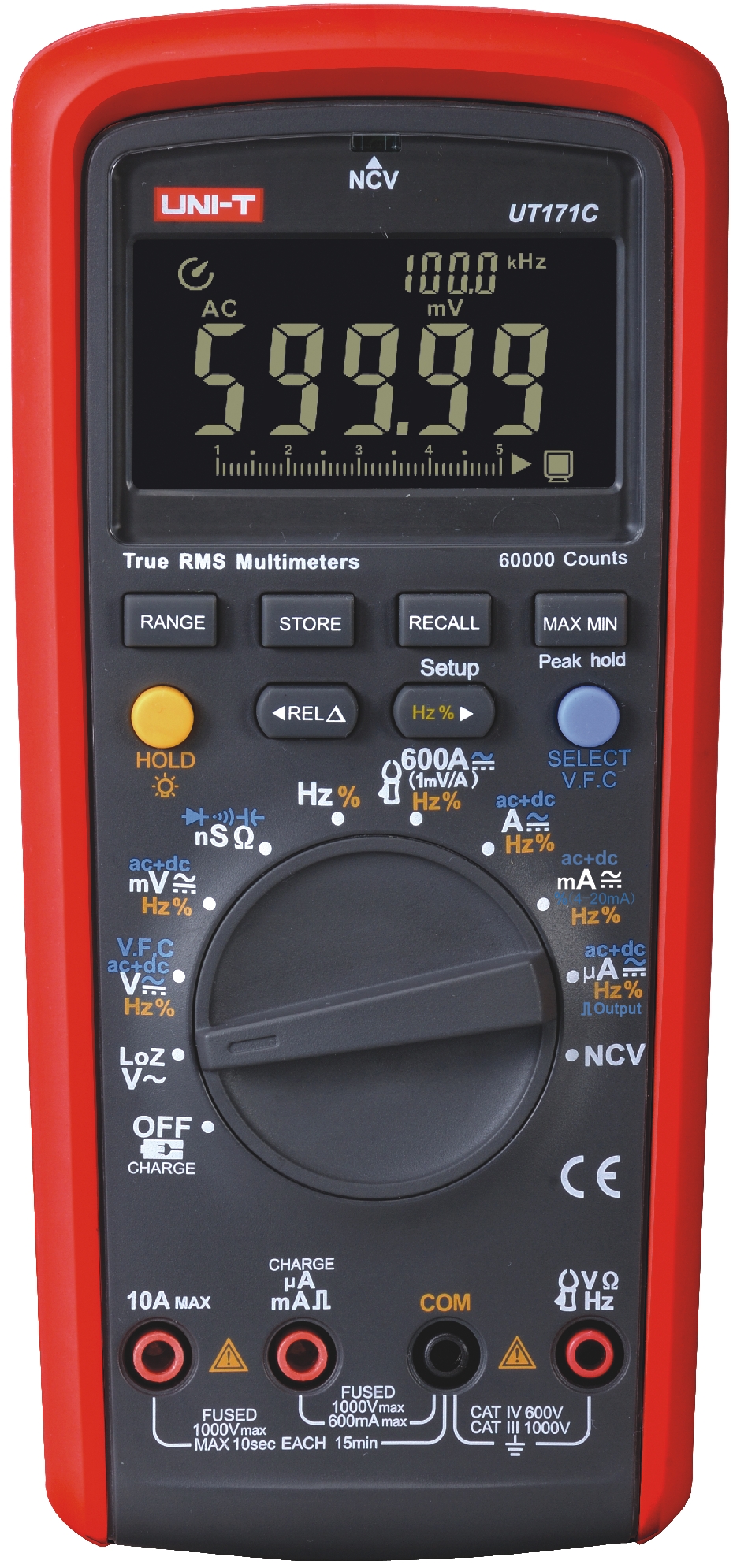

UT171A/B/C

Product description: Digital Multimeters
INQUIRY

Main features

1. 40000 count

2. 4-5 times/s sampling rate

3. VFC low-pass filtering

4. NCV measurement

5. MAX/MIN/AVG modes

6. Analog bar: more intuitive, faster observation of dynamic signals

7. USB/Bluetooth communication

8. 9999 data storage

Specifications	Range	Best Accuracy
Model		UT171A	UT171B	UT171C
DC Voltage (V)	400mV/4V/40V /400V/1000V	±(0.025%＋5)
DC Voltage (V)	600mV/6V/60V /600V/1000V		±(0.025%＋5)	±(0.025%＋5)
AC Voltage (V)	400mV/4V/40V /400V/1000V	±(0.4%＋40)
AC Voltage (V)	600mV/6V/60V/600V/1000V		±(0.4%＋40)	±(0.4%＋40)
DC Current (A)	400uA/4000uA/40mA /400mA/4A/10A	±(0.15%＋2)
DC Current (A)	600uA/6000uA/60mA /600mA/6A/10A		±(0.15%＋2)	±(0.15%＋2)
AC Current (A)	400uA/4000uA/40mA /400mA/4A/10A	±(0.75%＋5)
AC Current (A)	600uA/6000uA/60mA /600mA/6A/10A		±(0.75%＋5)	±(0.75%＋5)
Resistance (Ω)	400Ω/4kΩ/40kΩ /400kΩ/4MΩ/40MΩ	±(0.05%＋2)
Resistance (Ω)	600Ω/6kΩ/60kΩ /600kΩ/6MΩ/60MΩ		±(0.05%＋2)	±(0.05%＋2)
Admittance (nS)	60nS		±(1.0%＋10)	±(1.0%＋10)
Capacitance (F)	4nF/40nF/400nF/4μF /40μF/400μF/4mF/40mF	±(2.5%+40)
Capacitance (F)	6nF/60nF/600nF/6μF /60μF/600μF/6mF/60mF		±(2.5%+40)	±(2.5%+40)
Frequence (Hz)	10Hz~10MHz	±(0.01%+5)	±(0.01%+5)	±(0.01%+5)
Temperature (℃)	-40℃~1000℃		±(1.0%+30)	±(1.0%+30)
Temperature (℉)	-40℉~1832℉		±(1.5％+50)	±(1.5％+50)
Features
Display Count		40000	60000	60000
Auto/Manual Range		√	√	√
True RMS		√	√	√
Bandwidth (Hz)	100kHz	√	√	√
AC + DC			√	√
V.F.C		√	√	√
4~20mA Loop	0~100%		√	√
LoZ (ACV)	Around 3kΩ		√	√
Diode	Around 3V	√	√	√
Continuity Buzzer		√	√	√
Duty Cycle	0.1%~99.9%	√	√	√
NCV		√	√	√
Data Hold/MAX/MIN		√	√	√
Relative Mode		√	√	√
Peak Hold			√	√
Data Storage		1000	9999	9999
USB Interface		√	√	√
Display Type		LCD	EBTN	OLED
LCD Backlight		√	√	√
Analog Bar Graph		31	31	31
Mis-plug Alarm		√	√	√
Low Battery Indication		√	√	√
Rechargeable Battery			√	√
Auto Power Off	Around 15 Minutes	√	√	√
Input Protection		√	√	√
Input Impedance for DCV	Around 1GΩ	√	√	√
General Characteristics
Power	UT171A - AAA 1.5V x 6 UT171B/C - 7.4V 2000mAh Li-ion Battery
LCD Size	UT171A - 70.6mm x49.5mm UT171B/C - 70.6mm x 35.3mm
Product Color	Red and Grey
Product Net Weight	384g
Product Size	206mm x 95mm x 55mm
Standard Accessories	Batteries, Test lead, Point Contact Temperature Probe, USB Interface Cable, Power Adaptor (UT171B/C), PC Software CD
Standard Individual Packing	Gift Box, Carrying Bag, English Manual
Standard Quantity Per Carton	20pcs
Standard Carton Measurement	530mm × 360mm × 285mm (0.55 CBM Per Standard Carton)
Standard Carton Gross Weight	22kg
Optional Accessories	Bluetooth Adaptor (UT-D07)
