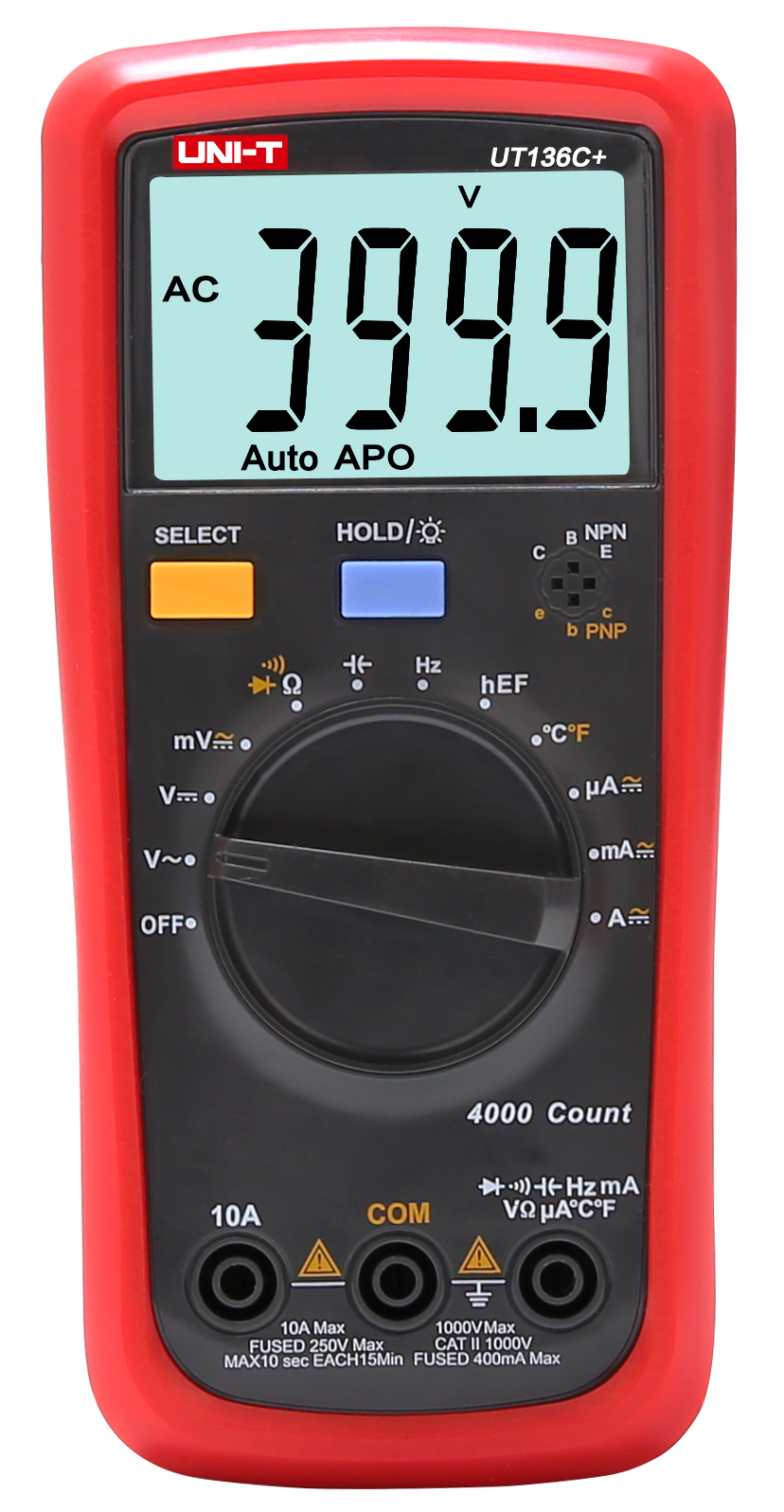

Digital multimeter

UT136 B+/C+

Features

1. Measures up to 1000V and 10A AC/DC voltage and current

2. Equipped with 3mm protective sleeve; 2 meters drop proof

3. Large LCD dual display; up to 4 times/s refresh rate

4. Full range protection: can endure up to 1kV over voltage shock;overload alarm

5. Quick response rate

6. Low power consumption and auto power saving function; long battery service life (>500hrs)

Specifications	Range	Best Accuracy
Model		UT136B+	UT136C+
DC voltage	400mV/4V/40V/400V/1000V	±(0.7%+3)	±(0.7%+3)
AC voltage	400mV/4V/40V/400V/1000V	±(1.0%+3)	±(1.0%+3)
DC current	400uA/4mA/40mA/400mA/4A/10A	±(0.8%+3)	±(0.8%+3)
AC current	400uA/4mA/40mA/400mA/4A/10A	±(1.0%+2)	±(1.0%+2)
Resistance	400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ	±(0.8%+2)	±(0.8%+2)
Capacitance	4nF/40nF/400nF/4uF /40uF/400uF/4mF/40mF	±(3.0%+5)	±(3.0%+5)
Frequency	400Hz-40mHz	±(0.1%+4)	±(0.1%+4)
Temperature (°C)	-40～1000℃		±(1.0%+4)
Temperature (℉)	-40～1832℉		±(1.5%+5)
Features
Display count		4000	4000
hFE	Current magnification measurement	√	√
NCV	Non-contact voltage test	√
Diode/transistor		√	√
Continuity buzzer		√	√
Data hold		√	√
Auto power off		√	√
Low battery indication		√	√
LCD backlight		√	√
Safety rating	CAT Ⅱ 1000V, CAT Ⅲ 600V	√	√
Drop test	1m	√	√
