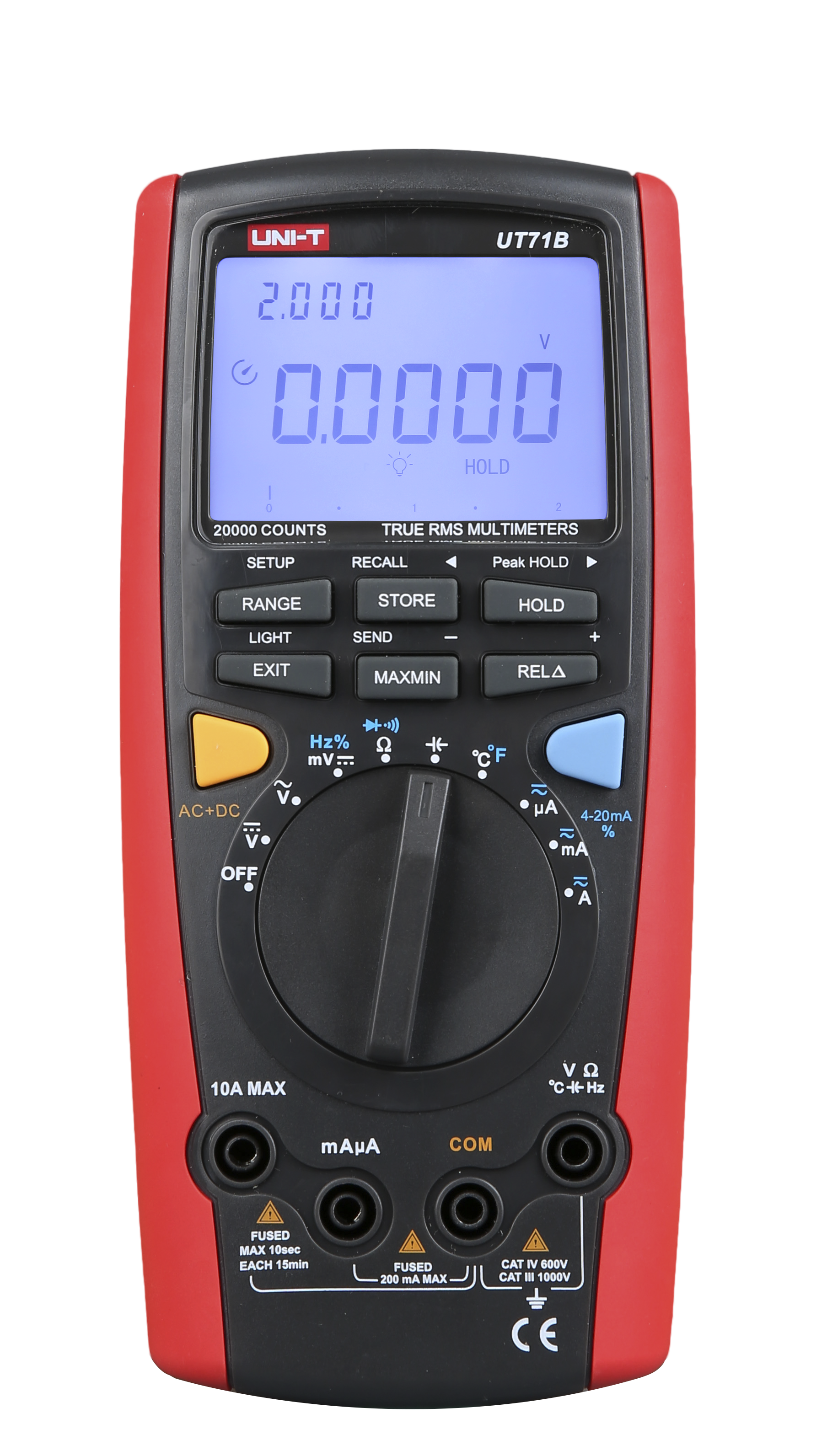

Digital multimeter

UT71 A/B

Product description: Digital Multimeters
INQUIRY

Features

1. MAX/MIN/REL modes; peak hold; analog bar graph

2. Measure AC and DC at the same time (AC+DC)

3. 45Hz~100kHz frequency response

4. LCD backlight; misplug alarm

5. Auto and manual ranges selectable

6. USB interface; Bluetooth connection with a cellphone for data monitoring

Specifications	Range	Best Accuracy
Model		UT71A	UT71B
DC Voltage (V)	200mV/2V/20V/200V/1000V	±(0.1%+8)	±(0.05%+5)
AC Voltage (V)	2V/20V/200V/1000V	±(0.8%+40)	±(0.6%+40)
DC Current (A)	200μA/2000μA/20mA/200mA/10A	± (0.2%+20)	±(0.15%+20)
AC Current (A)	200μA/2000μA/20mA/200mA/10A	±(1%+15)	±(0.8%+15)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	±(0.5%+20)	±(0.4%+20)
Capacitance (F)	20nF/200nF/2μF/20μF/200μF/2mF/20mF	±(1.5%+20)	±(1.2%+20)
Frequency (Hz)	20Hz-200MHz	±(0.1%+15)	±(0.1%+15)
Temperature (°C)	-40°C ～ 1000°C		±(1%+30)
Temperature (°F)	-40°F～1832°F		±(1.5%+50)
Features
Display Count		20000	20000
Auto Range		√	√
True RMS		√	√
Bandwidth (Hz)	100kHz	√	√
Duty Cycle	10% ～ 90%	±(1%+30)	±(1%+30)
Diode		√	√
Auto Power Off		√	√
Continuity Buzzer		√	√
Low Battery Indication		√	√
Data Hold		√	√
Relative Mode		√	√
MAX/MIN		√	√
Data Logging			100
USB Interface		√	√
Double Backlight		√	√
Analogue Bar Graph		√	√
Full Icon Display		√	√
Setup		√	√
Input Impedance for DCV	DC 200mV: around 2.5GΩ; Other Ranges: 10MΩ	√	√
4 - 20mA Loop	0～100%		±(1%+50)
Fused 10A		√	√
Current Measurement Alarm		√	√
Voltage & Current AC+DC Measurement		√	√
General Characteristics
Power	9V Battery (6F22)
LCD Size	73mm X 50mm
Product Color	Red and gey
Product Net Weight	384g
Product Size	200mm X 93mm X 40mm

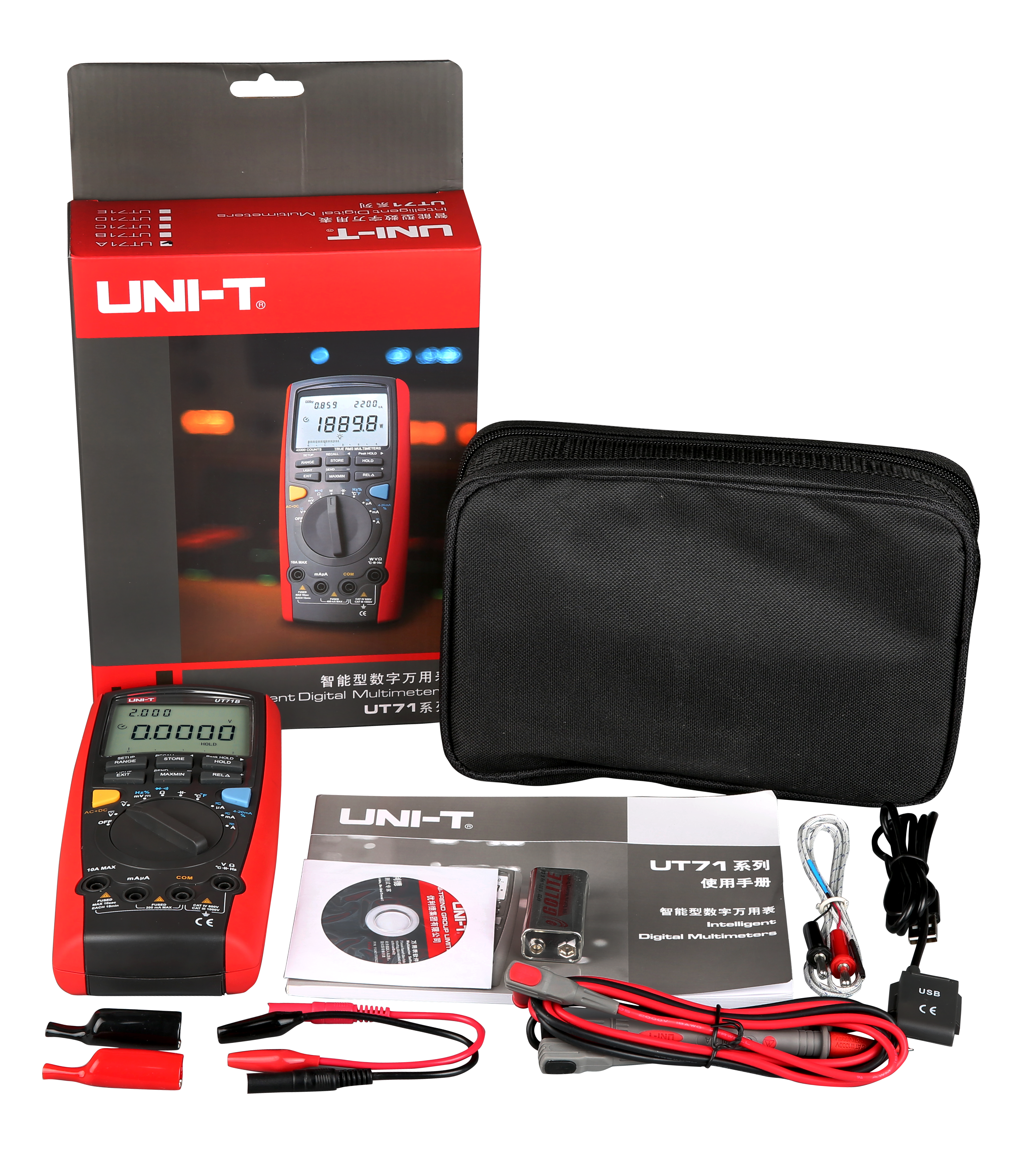

Standard Accessories	UT71A-Battery, Test Lead, Alligator Clip, Test Clip, USB Interface Cable, PC Software CD, Carrying Bag
Standard Accessories	UT71B-Battery, Test Lead, Alligator Clip, Test Clip, USB Interface Cable, PC Software CD, Carrying Bag, Point Contact Temperature Probe
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	22pcs
Standard Carton Measurement	535mm × 370mm × 425mm (0.084 CBM Per Standard Carton)
Standard Carton Gross Weight	22kg
