Specifications

Range

Best Accuracy

Model

UT803

DC Voltage (V)

600mV/6V/60V/600V/1000V

±(0.3%+2)

AC Voltage (V)

600mV/6V/60V/600V/1000V

±(0.6%+5)

DC Current (A)

600μA/6000μA/60mA/600mA/10A

±(0.5%+3)

AC Current (A)

600μA/6000μA/60mA/600mA/10A

±(1%+5)

Resistance (Ω)

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

±(0.5%+2)

Capacitance (F)

6nF/60nF/600nF/6μF/60μF/600μF/6mF

±(2%+5)

Frequency (Hz)

6kHz/60kHz/600kHz/6MHz/60MHz

±(0.1%+3)

Temperature (°C)

-40 °C～1000°C

±(1%+3)

Temperature (°F)

-40°F～1832°F

±(1.5%+5)

Features

Max Display

5999

Auto Range

√

Bandwidth (Hz)

100kHz

√

Diode

√

Transistor

√

Auto Power Off

√

Continuity Buzzer

√

Low Battery Indication

√

Data Hold

√

MAX/MIN

√

RS-232

√

USB Interface

√

LCD Backlight

√

Input Protection

√

Input Impedance

600mV Range: Around 3GΩ, All Other Ranges: Around 10MΩ

√

Voltage and Current : AC+DC Measurement

√

General Characteristics

Power

AC 220V/50Hz or 1.5V Batteries (2#) × 6

LCD Size

128mm × 28mm

Product Color

Red and grey

Product Net Weight

2.4kg

Product Size

310mm × 240mm × 105mm

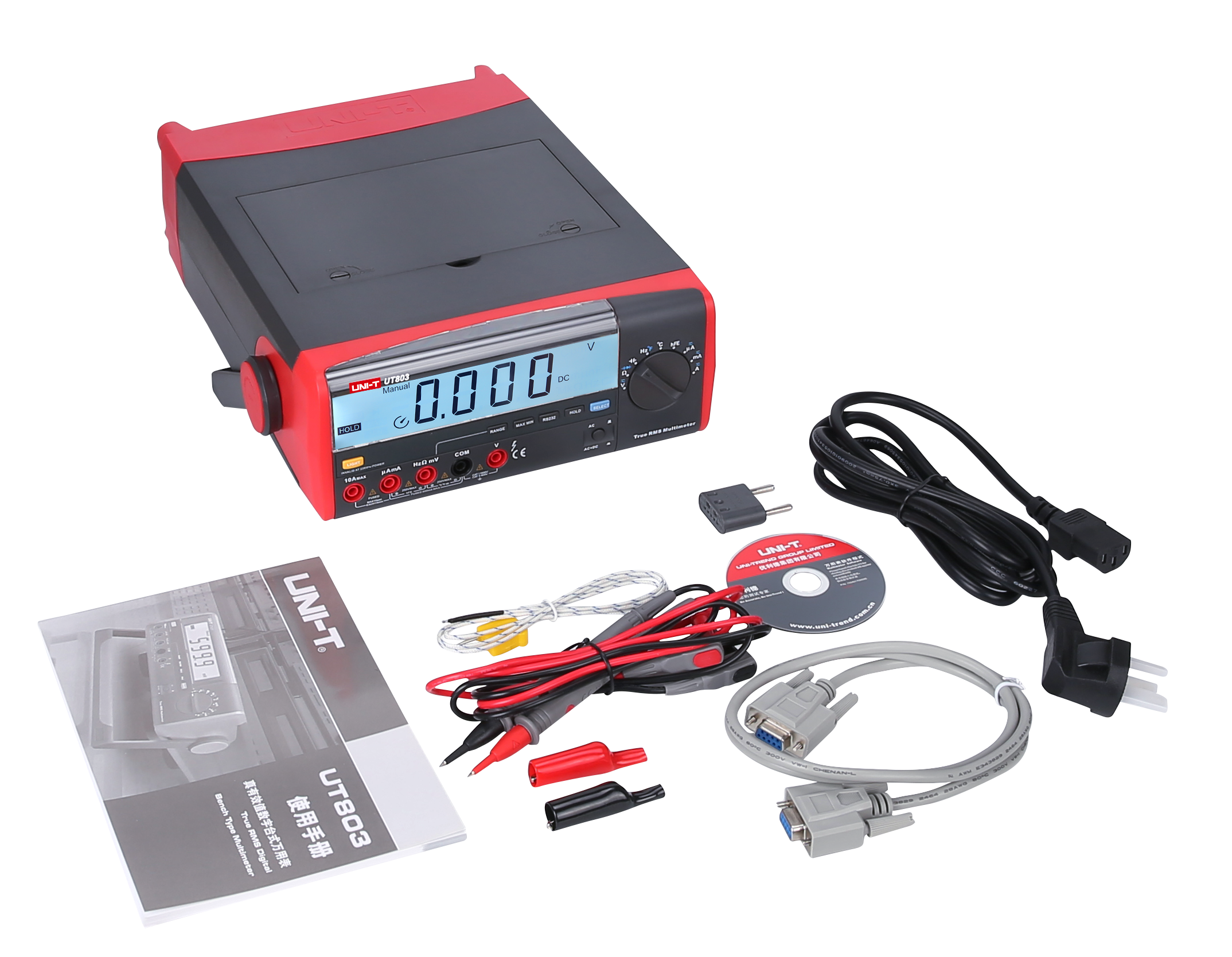

Standard Accessories

Test Lead, AC 220V Power Cord, Software CD, RS-232 Interface Cable, USB Interface Cable, Alligator Clip, Point Contact Temperature Probe, Multi-purpose Socket

Standard Individual Packing

Gift Box, User Manual

Standard Quantity Per Carton

4pcs

Standard Carton Measurement

680mm×365mm×320mm

Standard Carton Gross Weight

15kg
