Features
1. Large 9999 display with 30-segment analog bar graph
2. PI/DAR measurements
3. Comparison, upper and lower limit functions
4. Continuous measurement mode
5. Auto power off
6. 18-group data storage
7. Backlight
8. Auto current discharge and high-voltage output alarm
9. Timer measurement mode, auto measure within 15 minutes
10. Low battery and over range indications
| Specifications | Range | Best Accuracy | ||

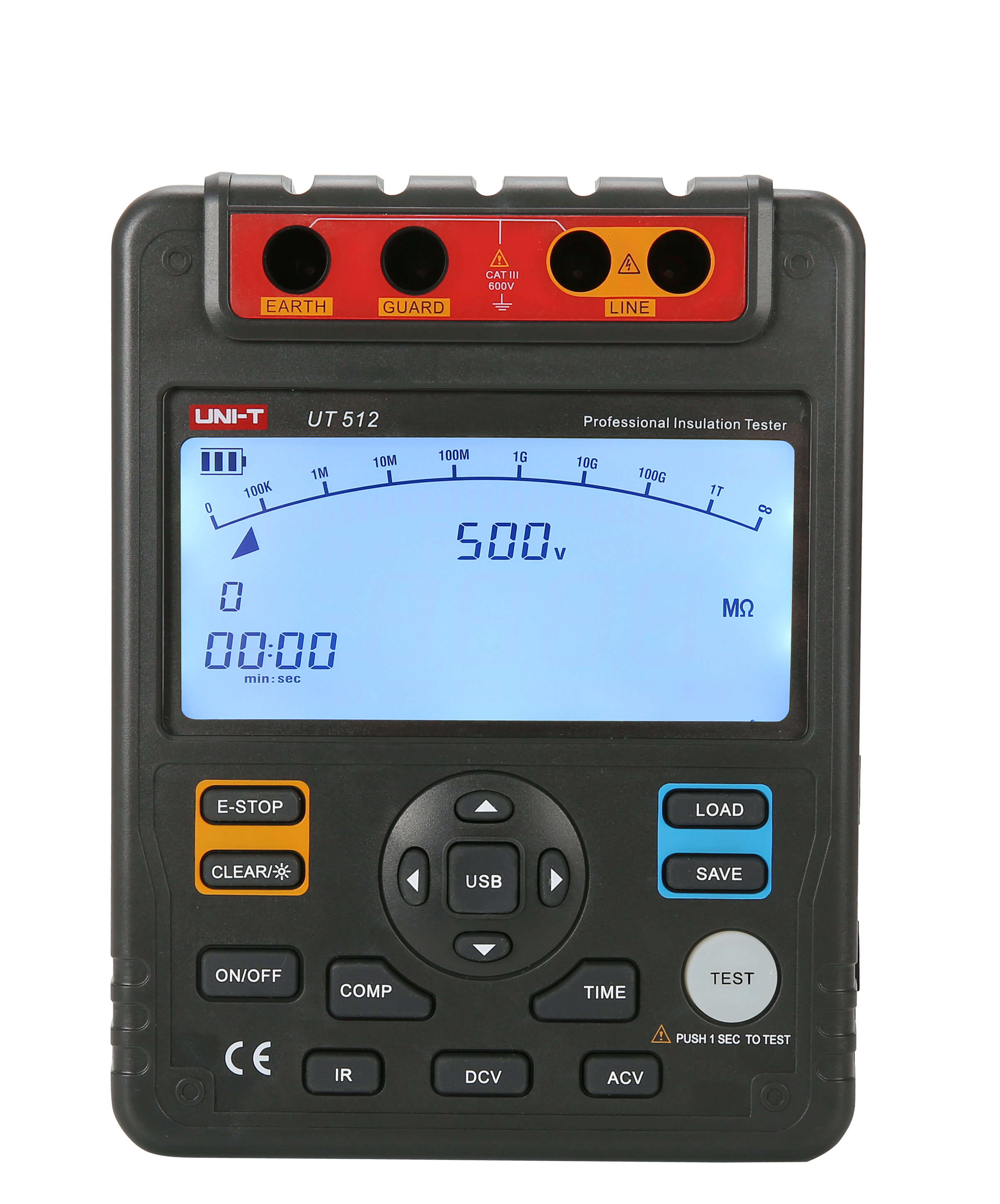

| Model | UT511 | UT512 | ||
| Insulation Resistance (Ω) | Test Voltages | 100V/250V/500V/1000V | 0%～20% | |
| 500V/1000V/1500V/2500V | 0%～20% | |||
| 100V | 0.1MΩ~500MΩ | ±(3%+5) | ||
| 250V | 0.5MΩ~2GΩ | ±(3%+5) | ||
| 500V | 1MΩ~4GΩ | ±(3%+5) | ||
| 1MΩ~5GΩ | ±(3%+5) | |||
| 1000V | 2MΩ~10GΩ | ±(3%+5) | ±(3%+5) | |
| 1500V | 5MΩ~20GΩ | ±(3%+5) | ||
| 2500V | 10MΩ~100GΩ | ±(3%+5) | ||
| Short Circuit Current | <2mA | <1.8mA | ||
| DC Voltage (V) | 1000V | ±(2%+3) | ||
| 600V | ±(2%+5) | |||
| AC Voltage (V) | 750V | ±(2%+3) | ||
| 600V | ±(2%+5) | |||
| Low Resistance (Ω) | 0.1Ω~999.9Ω | ±(1%+1) | ||
| Features | ||||
| Auto Range | √ | √ | ||
| Auto Power Off | √ | √ | ||
| Low Battery Indication | √ | √ | ||
| Data Storage | 18 | 18 | ||
| Comparison | √ | √ | ||
| Polarization Index (PI) | √ | √ | ||
| Dielectric Absorption (DAR) | √ | √ | ||
| USB Interface | √ | |||
| LCD Backlight | √ | √ | ||
| Analog Bar Graph | 30 | 30 | ||
| Over-range Warning | √ | √ | ||
| High Voltage Indication | √ | √ | ||
| Timer | Around 30 minutes | √ | ||
| Around 15 minutes | √ | |||
| General Characteristics | ||||

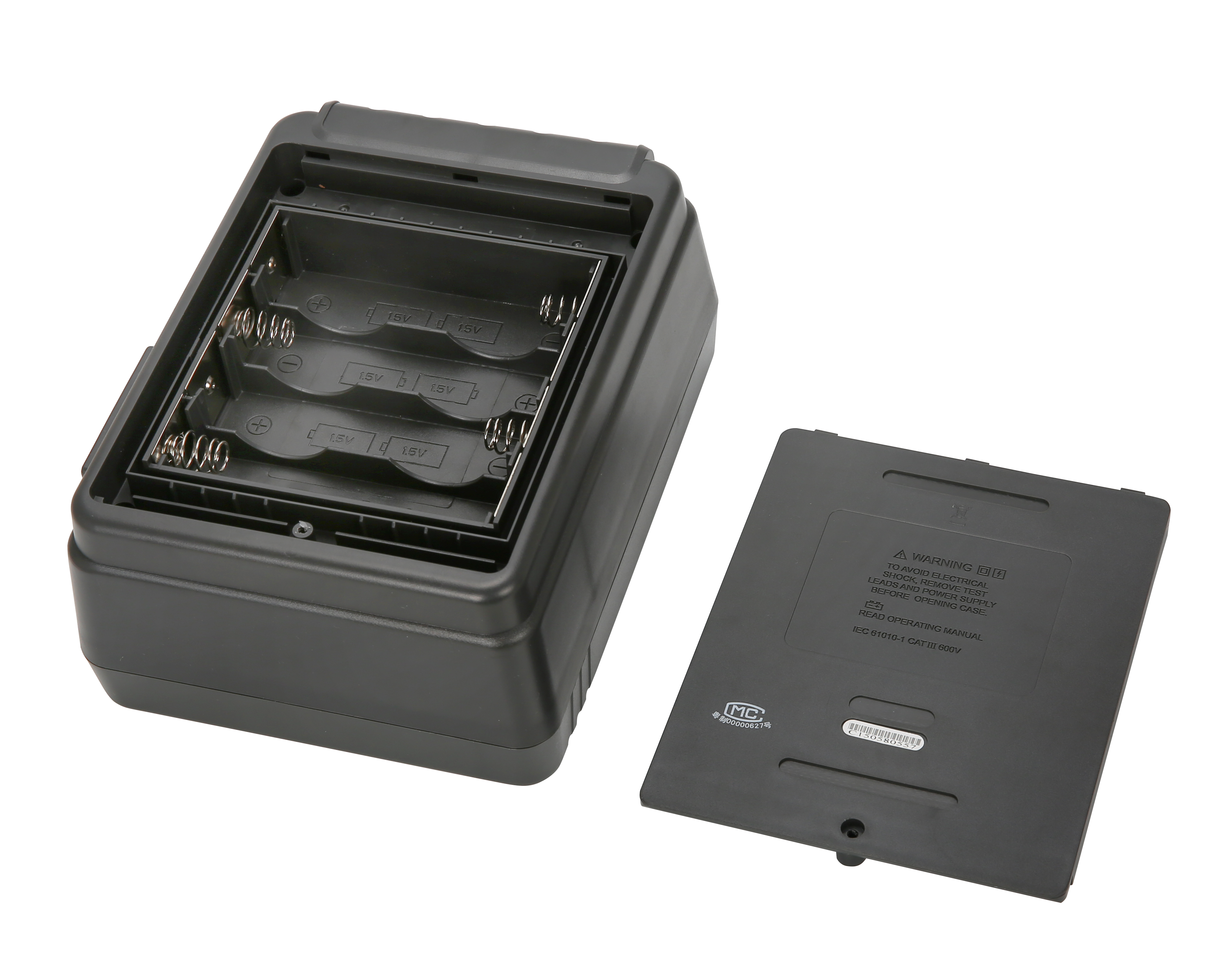

| Power | 1.5V Alkaline Batteries (LR14)×8 | |||
| LCD Size | 123mm x 58mm | |||
| Product Color | Red and Grey | |||
| Product Net Weight | UT511-1.2kg, UT512-1.8kg | |||
| Product Size | 202mm×155mm×94mm | |||

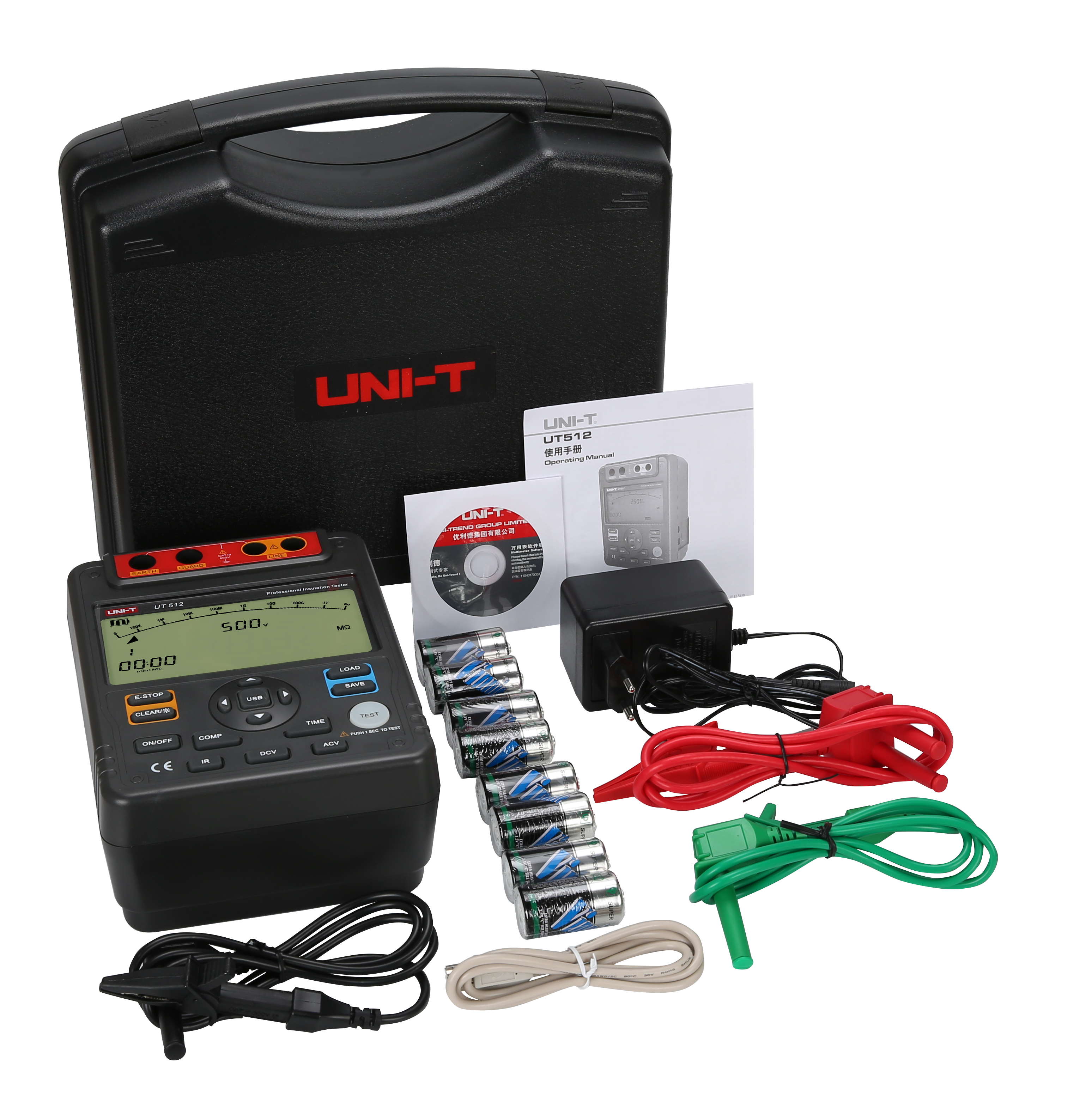

| Standard Accessories | UT511 - 2pcs of one plug test lead to one alligator clip (Black and Green), 1pcs of two plugs test lead to one alligator clip (Red), Batteries, English Manual, Tool Box | |||
| UT512 - 2pcs of one plug test lead to one alligator clip (Black and Green), 1 pcs of two plugs test lead to one alligator clip (Red), Batteries, Tool Box, USB Cable, PC Software CD, Power Adaptor | ||||
| Standard Individual Packing | Gift Box, English Manual | |||
| Standard Quantity Per Carton | 4pcs | |||
| Standard Carton Measurement | 525mm x 335mm x 345mm (0.061CBM Per Standard Carton) | |||
| Standard Carton Gross Weight | UT511-13kg, UT512-18kg | |||
| Optional Accessories | ||||
| Power Adaptor (UT511 only) | ||||
