Clamp meter

UT201

Features

1. Auto range

2. Data hold/auto power off

3. MAX mode

4. 3/s sampling rate

5. Low battery prompt, over-range prompt and auto polarity display


Specifications
Model		UT201	UT202	UT202A
AC Current (A)	2A/20A/200A/400A	±(1%+9)	±(1%+9)
AC Current (A)	20A/200A/600A			±(1.5%+5)
AC Voltage (V)	2V/20V/200V/600V	±(1.2%+5)	±(1.2%+5)	±(1.2%+5)
DC Voltage (V)	200mV/2V/20V/200V/600V	±(0.8%+1)	±(0.8%+1)	±(0.8%+1)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	±(1%+2)	±(1%+2)	±(1%+2)
Temperature (°C)	-40°C～1000°C		±(1%+7)
Temperature (°F)	-40°F～1832°F		±(1%+8)
Features
Display Count		2000	2000	2000
Auto Range		√	√
Manual Range				√
Jaw Capacity		28mm	28mm	28mm
Diode		√	√	√
Auto Power Off		√	√
Continuity Buzzer		√	√	√
Low Battery Indication		√	√	√
Data Hold		√	√	√
MAX Mode		√	√	√
MIN Mode				√
Full Icon Display		√	√
Input Impedance for DCV	Around 10MΩ	√	√	√
General Characteristics
Power	UT201/UT202-1.5V Batteries (R03) ×2, UT202A-9V Battery (6F22)
LCD Size	35.6mm X 18mm
Product Color	Red and grey
Product Net Weight	220g
Product Size	210mm X 75.6mm X 30mm

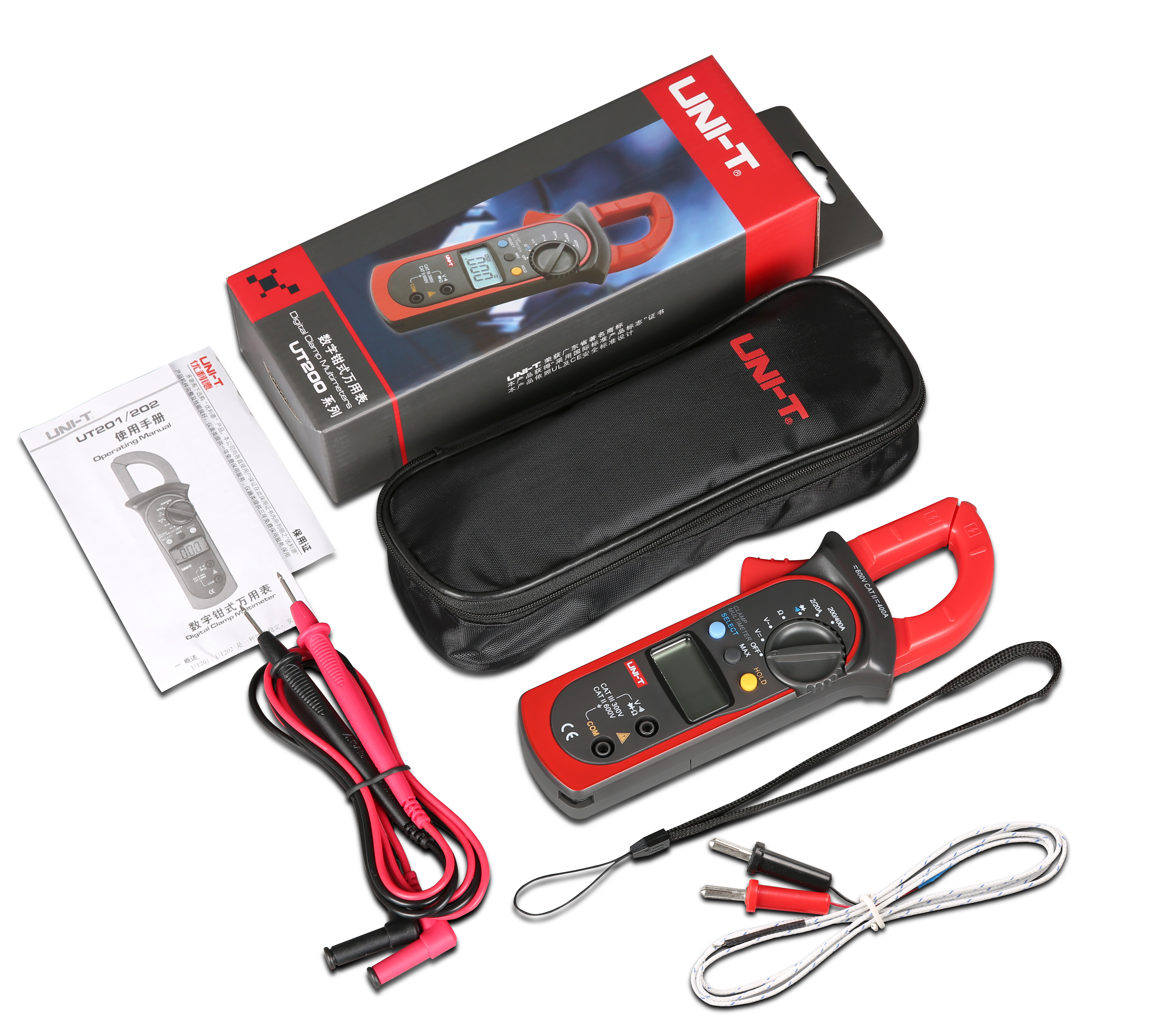

Standard Accessories	UT201/UT202A-Batteries, Test Lead, Carrying Bag
Standard Accessories	UT202-Battery, Test Lead, Carrying Bag, Point Contact Temperature Probe
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	48pcs
Standard Carton Measurement	503mm × 485mm × 295mm (0.072 CBM Per Standard Carton)
Standard Carton Gross Weight	24.8kg
