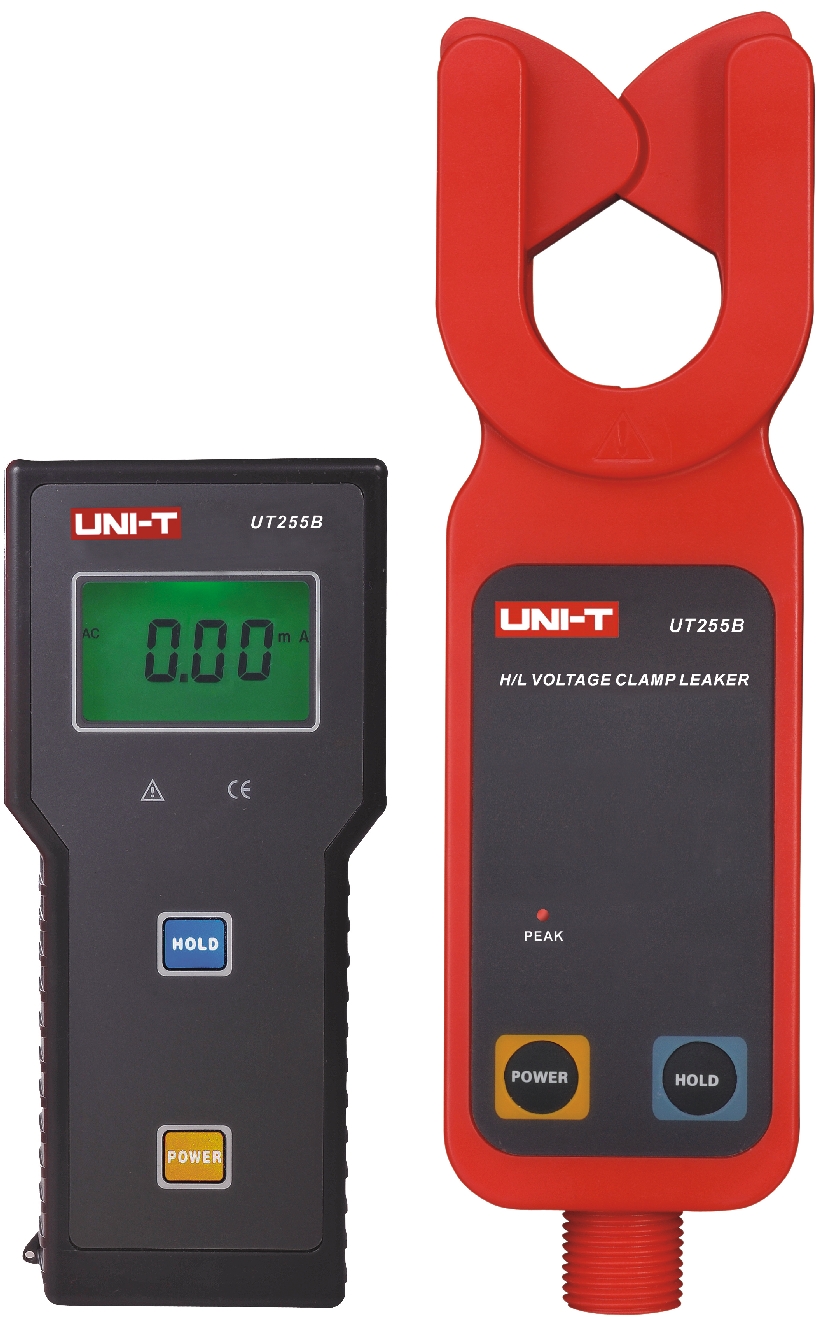

Clamp meter

UT255 A/B

Features

1. Auto range, 2/s sampling rate

2. Peak hold

3. Manual range/stores 99 sets of data

4. RS-232 interface, LCD backlight

5. Data hold, auto power off

6. Overload protection, low battery indication

7. Automatic plug clamp

Specifications	Range	Best Accuracy
Model		UT255A	UT255B
Leakage Current (A)	0.01mA～100.0A	±(1%+5)	±(1%+5)
	100.0A～600.0A	±(2%+5)	±(2%+5)
	Voltage (Freq.) 0V～69kV (50Hz/60Hz)	√	√
Features
Display Mode	4 Digits Display LCD	√	√
Jaw Capacity		33mm	33mm
Auto Range		√	√
Wireless Transmission	≤30m		√
Data Recall		√	√
Data Storage		99	99
Peak Value		√	√
LCD Backlight		√	√
Data Hold		√	√
Auto Power Off	Around 15 Minutes	√	√
Low Battery Indication		√	√
Over-Range Display	OL	√	√
Test Mode	Clamp CT, Integral Approach	√	√
Sampling Rate	About 2 times/second	√	√
General Characteristics
Power	1.5V Batteries (LR03) X 4
LCD Size	47mm X 28.5mm
Product Color	Red and grey
Product Net Weight	335g
Product Size	68mm X 245mm X 40mm

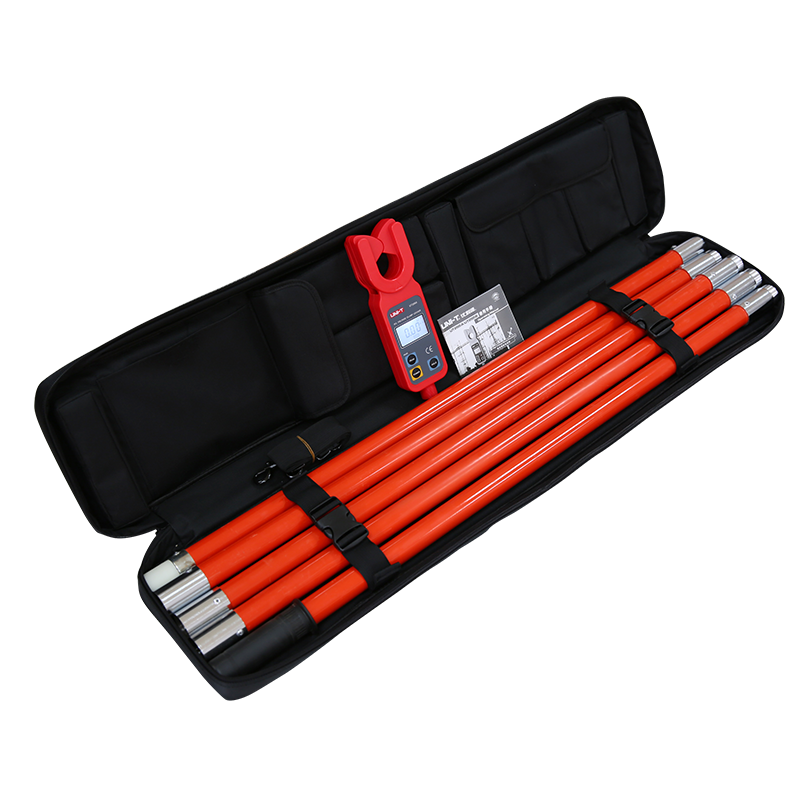

Standard Accessories	UT255A-Batteries, Insulation Rod, Tool Box
	UT255B-Batteries, Insulation Rod, Receiver, Tool Box
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	1pcs
Standard Carton Measurement	1040mm X 240mm X 140mm (0.05CBM Per Standard Carton)
Standard Carton Gross Weight	6.8kg
