Environmental Testers

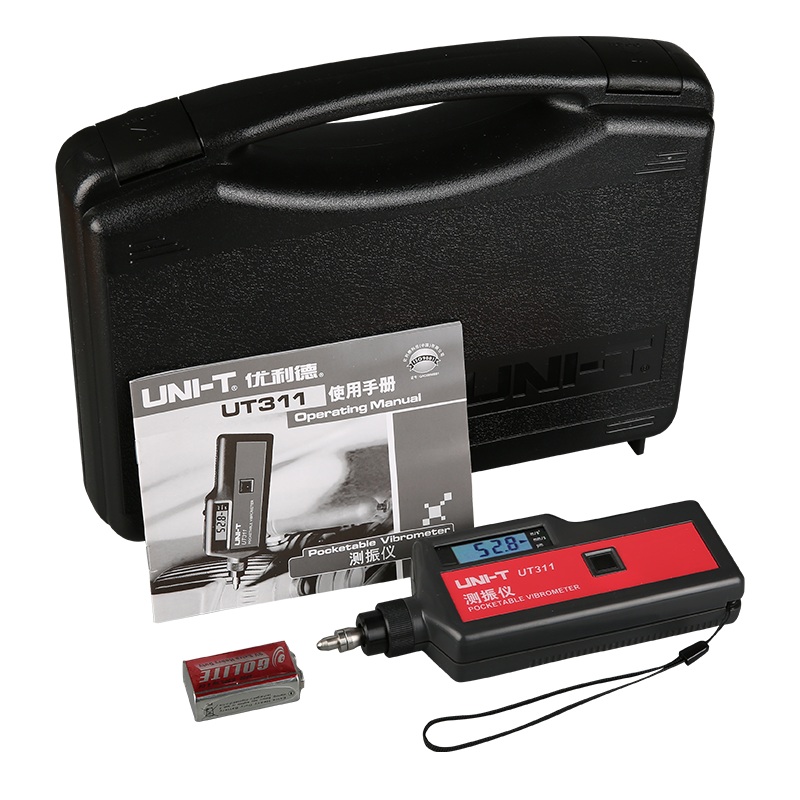

UT311/UT321

Features

1. Highly accurate and precise

2. Measures acceleration, velocity, displacement

3. Can select different vibration frequency characteristics

4. Auto power off, low battery indication

5. Data hold

Specifications	Range	Best Accuracy
Model		UT311 All in one	UT312 Split style
Vibration Acceleration (O-P)	0.1～199.9m/s2	Frequency response: 10～1500Hz, Amplitude error: ≤±5%
		Amplitude linear error: ≤2.0m/s2, ≤±10%; ＞2.0m/s2, ≤±5%
Vibration Velocity (RMS)	0.1～199.9mm/s	Frequency response: 10～1500Hz, Amplitude error: ≤±5%
		Amplitude linear error: ≤2.0mm/s, ≤±10%; ＞2.0mm/s, ≤±5%
Vibration displacement (P-P)	1～1999μm	Frequency response: 10～500Hz, Amplitude error: ≤±5%
		Amplitude linear error: ≤20um, ≤±10%; ＞20um, ≤±5%
Functions
Data Hold		√ (auto data hold when releasing the measure key)
Low battery indication		√
Auto Power Off		√ (auto power off 1 minutes after releasing the measure key)
Display Modes		Digital display
Battery Life		Continuous measuring time > 20 hours
Maximum Display		1999
General Characteristics
Battery		6F22 9V battery
Product Colour		Red and grey
Product Net weight		230g (including battery)
Product Size		185mm x 68mm x 30 mm
Standard Accessories		Battery, Holster
Standard Individual Packing		Gift Box, English Manual
Standard Quantity Per Carton		20pcs
Standard Carton Measurement		600mm×370mm×474mm
Standard Carton Gross Weight		About 5kg
