Digital multimeter

WH5000

Characteristic With data transfer function to store data Large LCD Easy to read in dark condition with blue backlight Data hold function for easy reading after measurement With analogue bar graph for visual display With MAX and MIN value display Double fuse and anti-burn design, safe and reliable With frequency and temperature test function With PVC shockproof holster
Technology features DCV: 60m-600m-6-60-600V ±0.5% ACV: 60m-600m-6-60-600V ±1.0% DCA: 600u-6000u-60m-600m-20A ±1.8% ACA: 600u-6000u-60m-600m-20A ±2.0% Resistance: 600-6K-60K-600K-6M-60MΩ ±1.0% Capacitance: 60n-600n-6u-60u-600uF ±5.0% Frequency: 9.99~9.99MHz ±3.0% Temperature: -20ºC~1000ºC/-4ºF~1832ºF ±2.0% Duty cycle: 0.1%~99.9% ±0.1%

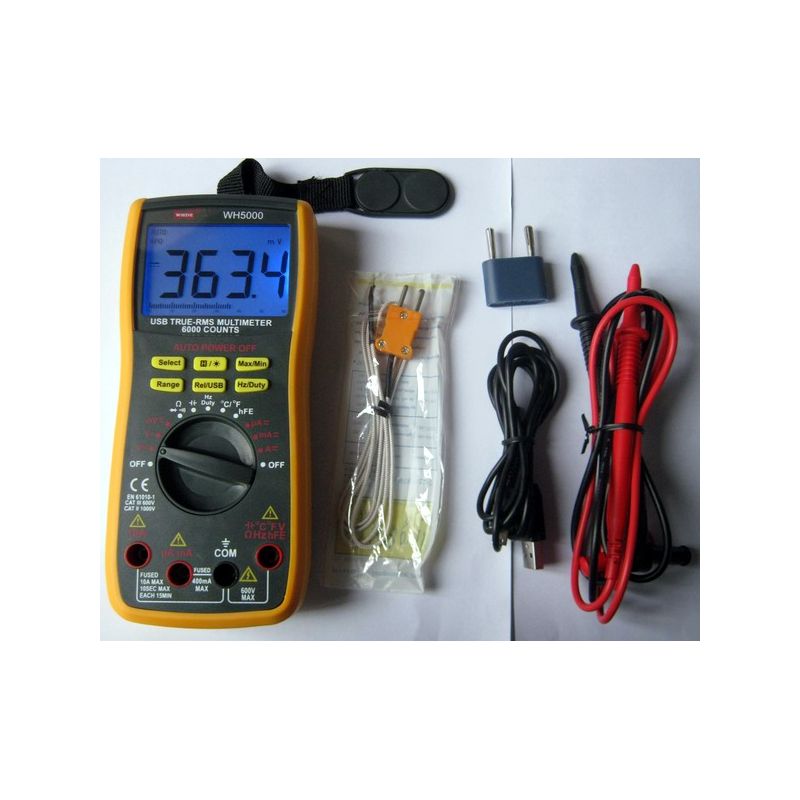

Description LCD size: 64x42mm Max display: 5999 Low battery indication: yes Overload protection: yes Auto range: yes Diode test: yes Transistor test: yes Continuity buzzer test: yes Auto power off: yes Data hold: yes Backlight: yes Analogue bar graph: yes USB interface: yes Power supply: one 9V 6F22 batter Product size: 188x81x48mm Product weight: about 357g (with holster) Standard accessories: meter (with battery), holster, multi-function socket, test lead, thermocouple, USB data line, CD disc, manual
